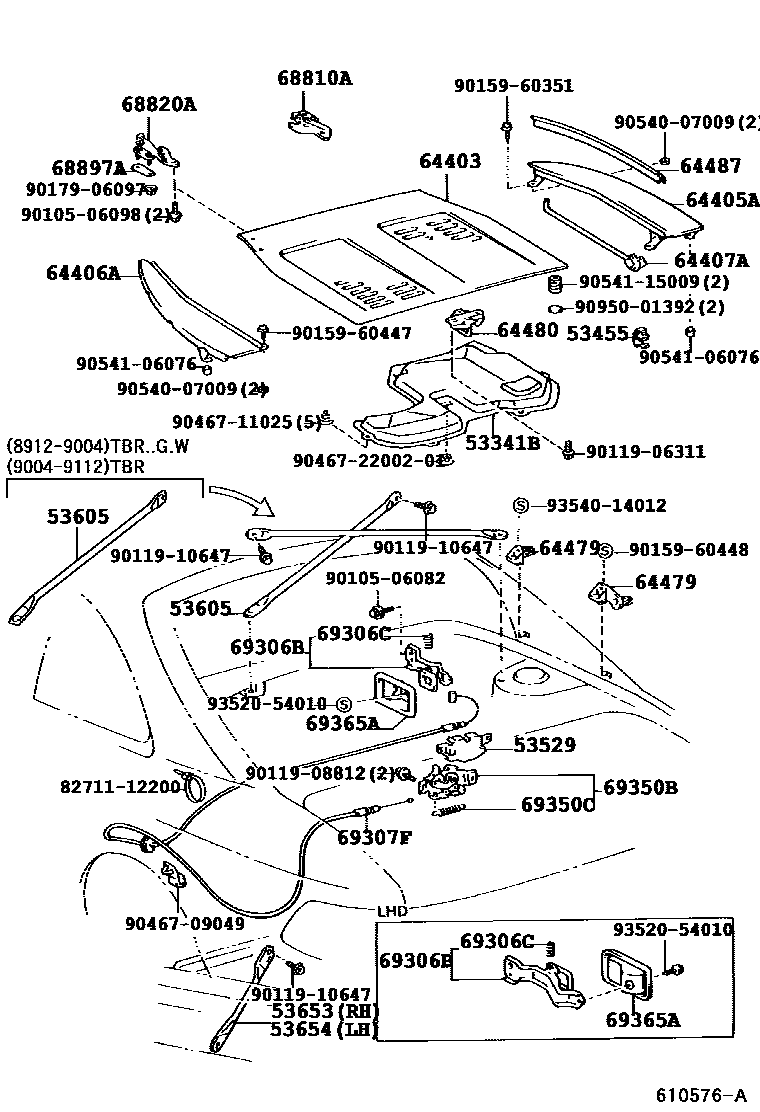

ENGINE HOOD & LOCK

53341BINSULATOR, HOOD

main53341-17010iSW20..TWC199112-199712

main53341-17011iSW20199712

53455CLAMP, HOOD SUPPORT ROD

main53455-17040iSW20198912

53529PLATE, HOOD LOCK PROTECTOR, REAR

main53529-17010iSW20198912

53605BRACE SUB-ASSY, REAR SUSPENSIOM, UPPER

main53605-17010iSW20..ARL198912-199311

main53605-17011iSW20..TBR199311

main53652-17010iSW20..TBR..(G,W)198912-199112

53653BRACE, REAR SUSPENSION, LOWER RH

main53653-17020iSW20198912

53654BRACE, REAR SUSPENSION, LOWER LH

main53654-17010iSW20198912

64403HOOD SUB-ASSY, ENGINE

main64403-17030iSW20198912

64405APANEL SUB-ASSY, ENGINE HOOD SIDE, RH

main64405-17021iSW20198912

64406APANEL SUB-ASSY, ENGINE HOOD SIDE, LH

main64406-17021iSW20198912

64407ASUPPORT SUB-ASSY, ENGINE HOOD

main64407-17030iSW20198912

64479CLIP, ENGINE HOOD SIDE PANEL

main64479-17010iSW20199112-199311

FR

main64479-17010iSW20198912-199112

FRONT

main64479-17020iSW20199112-199311

RR

main64479-17020iSW20198912-199112

REAR

64480STRIKER ASSY, ENGINE HOOD LOCK

main64480-17040iSW20198912

64487SEAL, ENGINE HOOD TO HOOD SIDE

main64487-17040iSW20198912

68810AHINGE ASSY, ENGINE HOOD, RH

main68810-17060iSW20198912

68820AHINGE ASSY, ENGINE HOOD, LH

main68820-17050iSW20198912

68897APAD, ENGINE HOOD HINGE

main68897-17011iSW20198912-199112

69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL

main69306-17020-01iSW20..RHD198912-199112

BLACK,TRIM2#,8#

main69306-17020-01iSW20..RHD199112-199311

BLACK,TRIM2#

main69306-17020-04iSW20..RHD198912-199311

D,BLUE,TRIM8#

main69306-17020-22iSW20..RHD199311

BLACK,TRIM2#

main69306-17030-01iSW20..LHD198912-199311

BLACK,TRIM2#

main69306-17030-04iSW20..LHD198912-199311

DARK BLUE,TRIM8#

main69306-17030-22iSW20..LHD199311

BLACK,TRIM2#

69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)

main90508-10034iSW20198912

69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL

main69307-17060iSW20..RHD198912-199907

main69307-17061iSW20..RHD199907-199908

main69307-17070iSW20..LHD198912-199908

69350BLOCK ASSY, ENGINE HOOD

main69350-17040iSW20..G198912-199512

main69350-17070iSW20..ARL199311-199512

main69350-17070iSW20..G,W198912-199512

W(THEFT-DETERRENT SYSTEM)

69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)

main90506-20008iSW20198912

69365ABEZEL, ENGINE HOOD LOCK CONTROL

main69365-17020-01iSW20198912-199311

BLACK,TRIM2#

main69365-17020-04iSW20198912-199311

DARK BLUE,TRIM8#

main69365-17020-22iSW20199311

BLACK,TRIM2#

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010506082

main90105-06082

9010506098

main90105-06098

9011906311

main90119-06311

9011908812

main90119-08812

9011910647

main90119-10647

9015960351

main90159-60351

9015960447

main90159-60447

9015960448

main90159-60448

9017906097

main90179-06097

9046709049

main90467-09049

9046711025

main90467-11025

904672200201

main90467-2200201

9054007009

main90540-07009

9054106076

main90541-06076

9054115009

main90541-15009

9095001392

main90950-01392

9352054010

main93520-54010

9354014012

main93540-14012

41 parts on this diagram · 1 diagram in section
