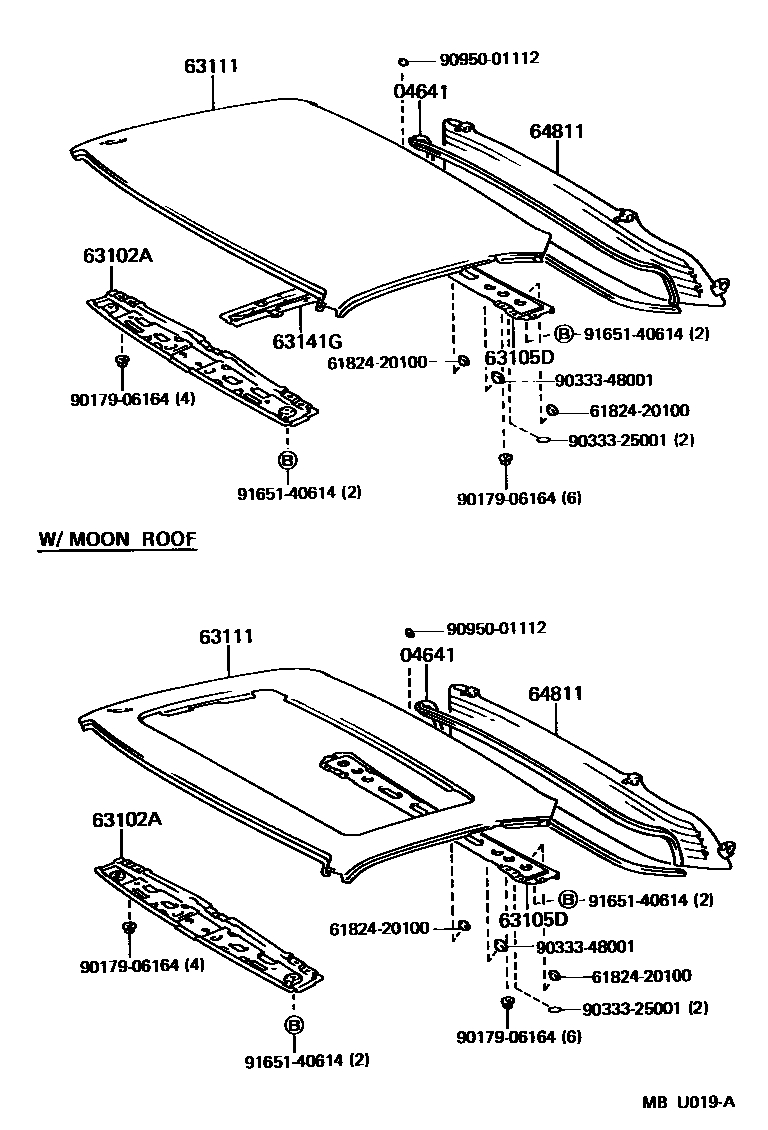

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iSW20..LHD199112-199311

COLD SPEC

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-17020iSW20..CP198912

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-17010iSW20198912

63111PANEL, ROOF

main63111-17080iSW20..CP198912

main63111-17110iSW20..CP198912

W(*SNR)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-17030iSW20..CP198912

64811GLASS, BACK WINDOW

main64811-17040iSW20198912-199311

*EHTT,T=3.5,BLUE

main64811-17041iSW20199311-199606

*EHTT,T3.5,BLUE

main64811-17110iSW20..LHD198912-199311

*EHTT,T=3.5,BLUE,W(HEAVY DUTY REAR WINDOW DEFOGGER)

main64811-17111iSW20..LHD199311-199606

*EHTT,T=3.5,BLUE,W(HEAVY DUTY REAR WINDOW DEFOGGER)

main64811-17160iSW20199606

*EHTT,T=3.5,GREEN

main64811-17170iSW20..LHD199606

*EHTT,T=3.5,GREEN,W(HEAVY DUTY REAR WINDOW DEFOGGER)

6182420100PLATE, NOISE CONTROL, NO.1

main61824-20100

9017906164

main90179-06164

9033325001

main90333-25001

9033348001

main90333-48001

9095001112

main90950-01112

9165140614

main91651-40614

12 parts on this diagram · 4 diagrams in section
