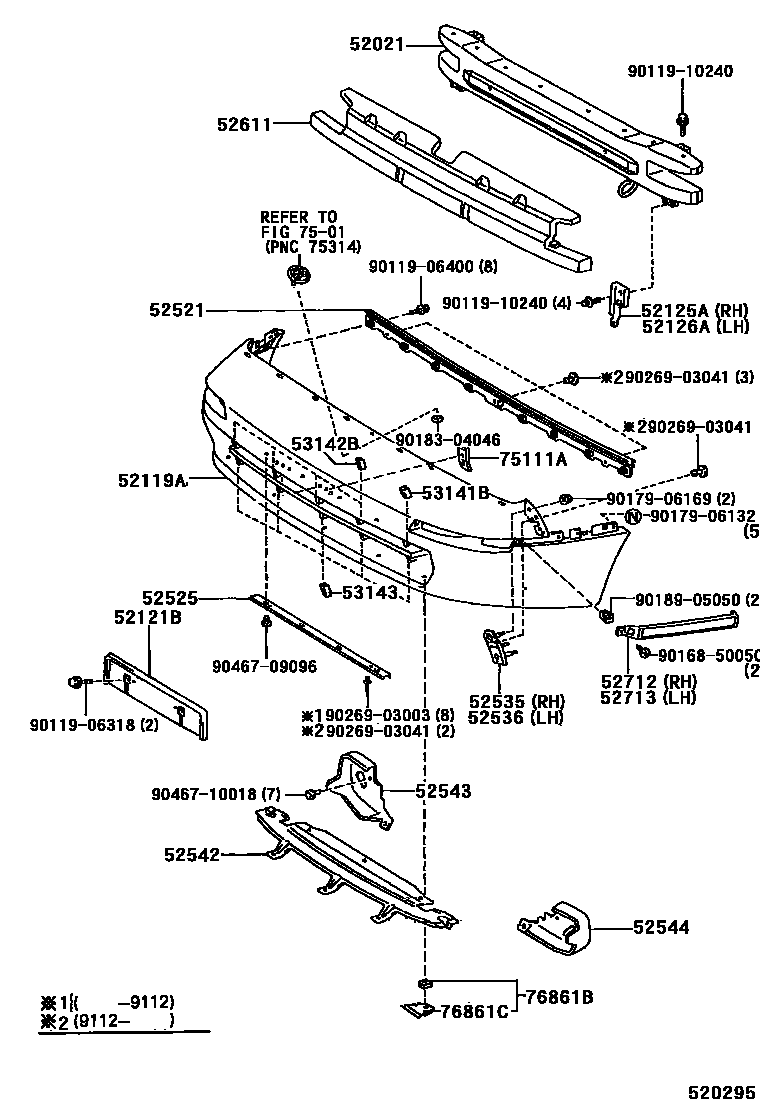

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119ACOVER, FRONT BUMPER
W(FOG LAMP)
W(FOG LAMP)
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52542SEAL, FRONT BUMPER, CENTER
52543SEAL, FRONT BUMPER SIDE, RH
W(DRIVING LAMP)
52544SEAL, FRONT BUMPER SIDE, LH
W(FRONT FOG LAMP)
52611ABSORBER, FRONT BUMPER ENERGY
52712MOULDING, FRONT BUMPER SIDE, RH
SUPER RED 3,3J6
BLUEISH GRY ARGENTUM,043
BLUE,M,8H3
DARK TURQUOISE MICA,742
DARK GRAY M,187 ,202
SUPER WHITE 2,040
BL.GRAY AMC,187
SILVER ME.,199
BLACK,202
MAROON M.,3E5
SUPER RED 2,3E5
ORANGE M.M.,3L1
GOLD MICA M.,567
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE MICA M.,746
BKUE M.,8J2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
52713PLUG, FRONT BUMPER MOULDING
SUPER RED 3,3J6
BLUEISH GRY ARGENTUM,043
BLUE,M,8H3
DARK TURQUOISE MICA,742
DARK GRAY M,187 ,202
SUPER WHITE 2,040
BL.GRAY AMC,187
SILVER ME.,199
BLACK,202
MAROON M.,3E5
SUPER RED 2,3E5
ORANGE M.M.,3L1
GOLD MICA M.,567
BEIGE M.M.,4N3
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE MICA M.,746
BLUE M.,8J2
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
DK.PURPLE MC.,943
53141BGARNISH, RADIATOR GRILLE, NO.1
53142BRADIATOR GRILLE GARNISH, NO.2
53143GARNISH, RADIATOR GRILLE, NO.3
7501
75111ABRACKET, FRONT LICENSE PLATE
76861BRETAINER, FRONT SPOILER, LOWER NO.1
76861CRETAINER, FRONT SPOILER, LOWER NO.2
9011906318
main90119-06318
9011906400
main90119-06400
9011910240
main90119-10240
9016850050
main90168-50050
9017906132
main90179-06132
9017906169
main90179-06169
9018304046
main90183-04046
9018905050
main90189-05050
9026903003
main90269-03003
9026903041
main90269-03041
9046709096
main90467-09096
9046710018
main90467-10018
34 parts on this diagram · 1 diagram in section
