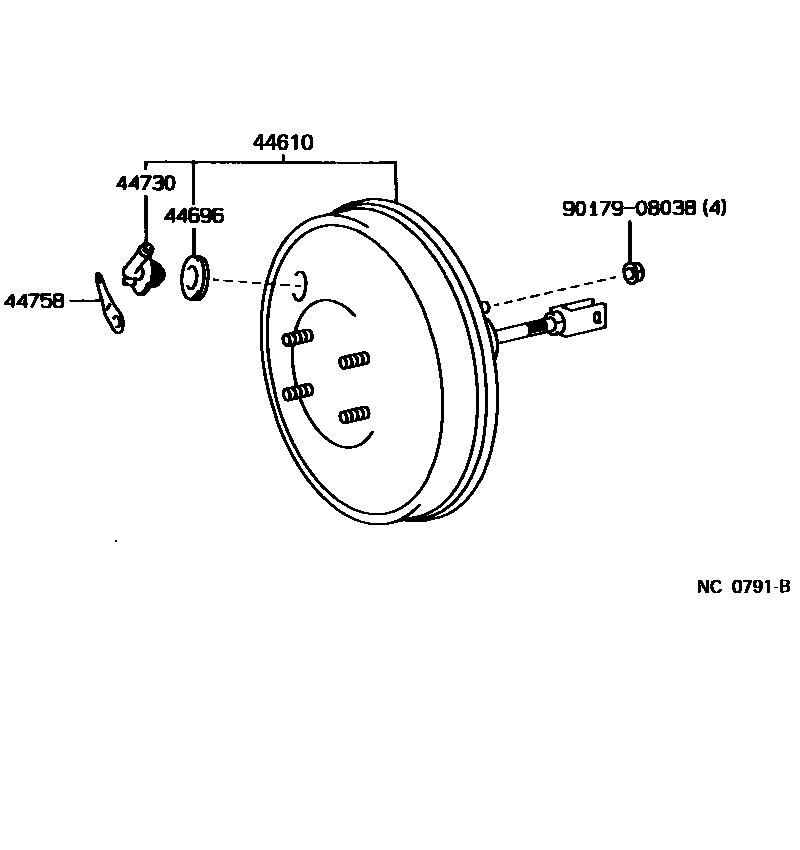

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-17180iSW20..RHD198912-199112

main44610-17200iSW20..LHD198912-199112

main44610-17230iSW20..RHD199112-199311

W(*66)

main44610-17250iSW20..LHD199112-199311

W(*66)

main44610-17280iSW20..RHD199112-199311

main44610-17290iSW20..LHD199112-199311

main44610-17300iSW20..RHD199311-199712

main44610-17310iSW20..LHD199311-199712

main44610-17320iSW20..RHD199712-199908

main44610-17330iSW20..LHD199712-199908

44696GROMMET, CHECK VALVE

main90480-24439iSW20..LHD198912-199112

main90480-24517iSW20..RHD198912-199112

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSW20..LHD198912-199112

main44730-14060iSW20..RHD198912-199112

main44730-22120iSW20199112

44758BRACKET, VACUUM CHECK VALVE

main44758-17060iSW20198912-199112

9017908038

main90179-08038

5 parts on this diagram · 5 diagrams in section
