DISC WHEEL & WHEEL CAP

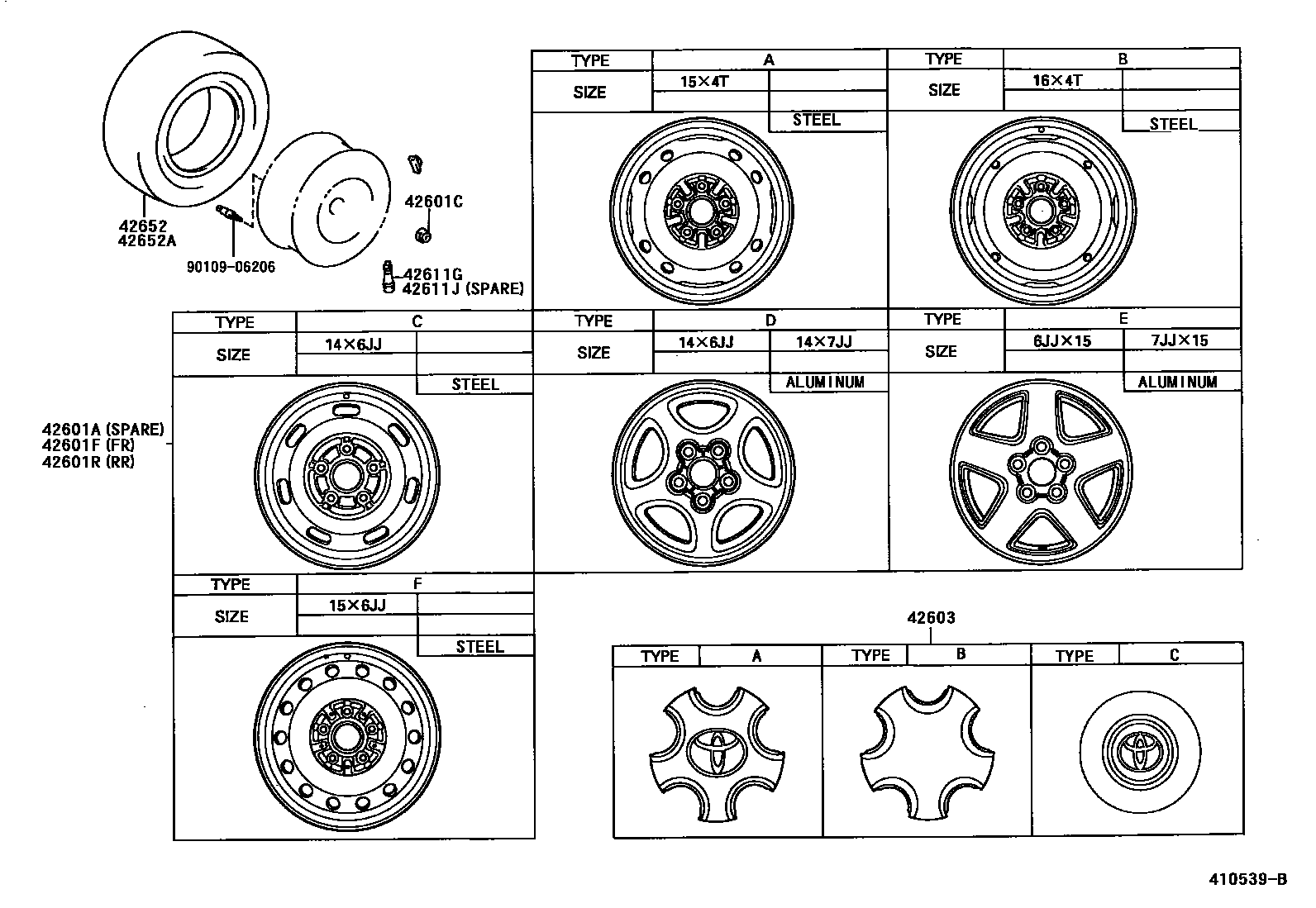

Parts diagram
42601AWHEEL, DISC (FOR SPARE)
main42611-17090-01i198912-199101
14X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK,043 ,202 ,3J6 ,742 ,8H3
main42611-17090-01i198912-199112
14X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK,043 ,187 ,202 ,3J6 ,742 ,8H3
main42611-17140i199008-199112
15X4T,TYPE A:REFER TO ILLUSTRATION
main42611-28250i199112
16X4T,TYPE B:REFER TO ILLUSTRATION
main42611-33010-01i199112
15X6JJ,OFFSET 45,#,TYPE F:REFER TO ILLUSTRATION,BLACK
42601CNUT, HUB (FOR AXLE)
main90942-01009i199112-199311
UNITED KINGDOM SPEC
main90942-01033i199712
FRONT
main90942-01050i198912-199112
REAR
main90942-01058i198912-199112
FRONT
main90942-01058i199712
REAR
main90942-01084i199112-199712
FRONT
main90942-01088i199112-199712
REAR
42601FWHEEL, DISC (FOR FRONT)
main42611-17110i198912-199112
14X6JJ,TYPE D:REFER TO ILLUSTRATION
main42611-17110i199007-199008
14X6JJ,TYPE D:REFER TO ILLUSTRATION,NEW ZEALAND & SINGAPORE SPEC
main42611-17160i199112-199606
15X6JJ,TYPE E:REFER TO ILLUSTRATION
main42611-17180i199512-199602
15X6JJ,TYPE E:REFER TO ILLUSTRATION, '96 SPRING CAMPAIGN
main42611-17200i199606-199712
15X6JJ,TYPE E:REFER TO ILLUSTRATION
main42611-17240i199712-199908
15X6JJ,TYPE D:REFER TO ILLUSTRATION
42601RWHEEL, DISC (FOR REAR)
main42611-17120i198912-199112
14X7JJ,TYPE D:REFER TO ILLUSTRATION
main42611-17120i199007-199008
14X7JJ,TYPE D:REFER TO ILLUSTRATION,NEW ZEALAND & SINGAPORE SPEC
main42611-17170i199112-199606
15X7JJ,TYPE E:REFER TO ILLUSTRATION
main42611-17190i199512-199602
15X7JJ,TYPE E:REFER TO ILLUSTRATION, '96 SPRING CAMPAIGN
main42611-17210i199606-199712
15X7JJ,TYPE E:REFER TO ILLUSTRATION
main42611-17250i199712-199908
15X7JJ,TYPE D:REFER TO ILLUSTRATION
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-17040i198912-199112
TYPE A:REFER TO ILLUSTRATION
main42603-17050i199112-199606
TYPE B:REFER TO ILLUSTRATION
main42603-17060i199512-199602
*ALU,TYPE B:REFER TO ILLUSTRATION, '96 SPRING CAMPAIGN
main42603-17070i199606-199712
TYPE A:REFER TO ILLUSTRATION
main42603-17090i199712-199908
TYPE C:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
main90942-05004i198912-199112
main90942-05004i199007-199008
SINGAPORE & NEWZEALAND SPEC
main90942-05009i199112
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i198912-199112
42652TIRE
main42652-17230i198912-199112
195/60R14 85V,GENERAL SPECIFICATION (EXCEPT NEW ZEALAND SPEC),FRONT RH
main42652-17230i198912-199112
195/60R14 85V,*82,FRONT RH
main42652-17240i198912-199112
195/60R14 85V,GENERAL SPECIFICATION (EXCEPT NEW ZEALAND SPEC),FRONT LH
main42652-17240i198912-199112
195/60R14 85V,*82,FRONT LH
main42652-17250i198912-199112
205/60R14 88V,*82,REAR RH
main42652-17250i198912-199112
205/60R14 88V,GENERAL SPECIFICATION (EXCEPT NEW ZEALAND SPEC),REAR RH
main42652-17260i198912-199112
205/60R14 88V,*82,REAR LH
main42652-17260i198912-199112
205/60R14 88V,GENERAL SPECIFICATION (EXCEPT NEW ZEALAND SPEC),REAR LH
main42652-17270i198912-199112
195/60R14 85V,FRONT RH
main42652-17280i198912-199112
195/60R14 85V,FRONT LH
main42652-17290i198912-199112
205/60R14 88V,REAR RH
main42652-17300i198912-199112
205/60R14 88V,REAR LH
main42652-17390i199008-199112
195/60R14 85V,FRONT RH
main42652-17400i199008-199112
195/60R14 85V,FRONT LH
main42652-17410i199008-199112
205/60R14 88V,REAR RH
main42652-17420i199008-199112
205/60R14 88V,REAR LH
main42652-17510i199112-199310
195/55R15 83V,FRONT RH
main42652-17520i199112-199310
195/55R15 83V,FRONT LH
main42652-17530i199112-199310
225/50R15 91V,REAR RH
main42652-17540i199112-199310
195/55R15 83V,RH
main42652-17550i199112-199310
195/55R15 83V,LH
main42652-17560i199112-199310
225/50R15 91V,RH
main42652-17570i199112-199310
225/50R15 91V,LH
main42652-17580i199112-199311
195/55R15 83V,*82,FRONT RH
main42652-17590i199112-199311
195/55R15 83V,*82,FRONT LH
main42652-17600i199112-199311
225/50R15 91V,*82,REAR RH
main42652-17610i199112-199311
225/50R15 91V,*82,REAR LH
main42652-17630i199112-199310
225/50R15 91V,REAR LH
main42652-17680i199112-199310
195/55R15 83V,*Y/H,FRONT RH
main42652-17690i199112-199310
195/55R15 83V,*Y/H,FRONT LH
main42652-17700i199112-199310
225/50R15 91V,*Y/H,REAR RH
main42652-17710i199112-199310
225/50R15 91V,*Y/H,REAR LH
main42652-17720i199112-199310
195/55R15 83V,*Y/H,FRONT RH
main42652-17730i199112-199310
195/55R15 83V,*Y/H,FRONT LH
main42652-17740i199112-199310
225/50R15 91V,*Y/H,REAR RH
main42652-17750i199112-199310
225/50R15 91V,*Y/H,REAR LH
main42652-17800i199310-199606
195/55R15 84V,FRONT RH
main42652-17810i199310-199606
195/55R15 84V,FRONT LH
main42652-17820i199310-199606
225/50R15 91V,REAR RH
main42652-17830i199310-199606
225/50R15 91V,REAR LH
main42652-17840i199311-199606
195/55R15 84V,FRONT RH
main42652-17840i199310-199311
195/55R15 84V,RH
main42652-17850i199311-199606
195/55R15 84V,FRONT LH
main42652-17850i199310-199311
195/55R15 84V,LH
main42652-17860i199310-199311
225/50R15 91V,RH
main42652-17860i199311-199606
225/50R15 91V,REAR RH
main42652-17870i199311-199606
225/50R15 91V,REAR LH
main42652-17870i199310-199311
225/50R15 91V,LH
main42652-1R070i199311-199606
195/55R15,FRONT RH
main42652-1R070i199310-199311
195/55R15,RH
main42652-1R080i199311-199606
195/55R15,FRONT LH
main42652-1R080i199310-199311
195/55R15,LH
main42652-1R090i199310-199311
225/50R15,RH
main42652-1R090i199311-199606
225/50R15,REAR RH
main42652-1R100i199310-199311
225/50R15,LH
main42652-1R100i199311-199606
225/50R15,REAR LH
main42652-1R110i199310-199311
195/55R15,RH
main42652-1R110i199311-199606
195/55R15,FRONT RH
main42652-1R120i199311-199606
195/55R15,FRONT LH
main42652-1R120i199310-199311
195/55R15,LH
main42652-1R130i199311-199606
225/50R15,REAR RH
main42652-1R130i199310-199311
225/50R15,RH
main42652-1R140i199310-199311
225/50R15,LH
main42652-1R140i199311-199606
225/50R15,REAR LH
main42652-1R150i199606
195/55R15,*B/S,RH
main42652-1R160i199606
195/55R15,*B/S,LH
main42652-1R170i199606
225/50R15,*B/S,RH
main42652-1R180i199606
225/50R15,*B/S,LH
main42652-1R230i199606
195/55R15,RH
main42652-1R240i199606
195/55R15,LH
main42652-1R250i199606
225/50R15,RH
main42652-1R260i199606
225/50R15,LH
main42652-1R270i199606
195/55R15,RH
main42652-1R280i199606
195/55R15,LH
main42652-1R290i199606
225/50R15,RH
main42652-1R300i199606
225/50R15,LH
42652ATIRE (FOR SPARE)
main42652-14270i199008-199112
T135/70D15
main42652-17380i198912-199112
185/60R14 82M
main42652-17380i198912-199112
185/60R14 82M,GENERAL SPECIFICATION (EXCEPT NEW ZEALAND SPEC)
main42652-17620i199112-199401
195/55R15 83M
main42652-17620i199112-199401
195/55R15 83M,HONGKONG SPEC
main42652-17621i199401
195/55R15 83M
main42652-17621i199401
195/55R15 83M,HONGKONG SPEC
main42652-20760i199112-199608
T135/70D16
main42652-24050i199608
T135/70D16
9010906206
main90109-06206

10 parts on this diagram · 2 diagrams in section
