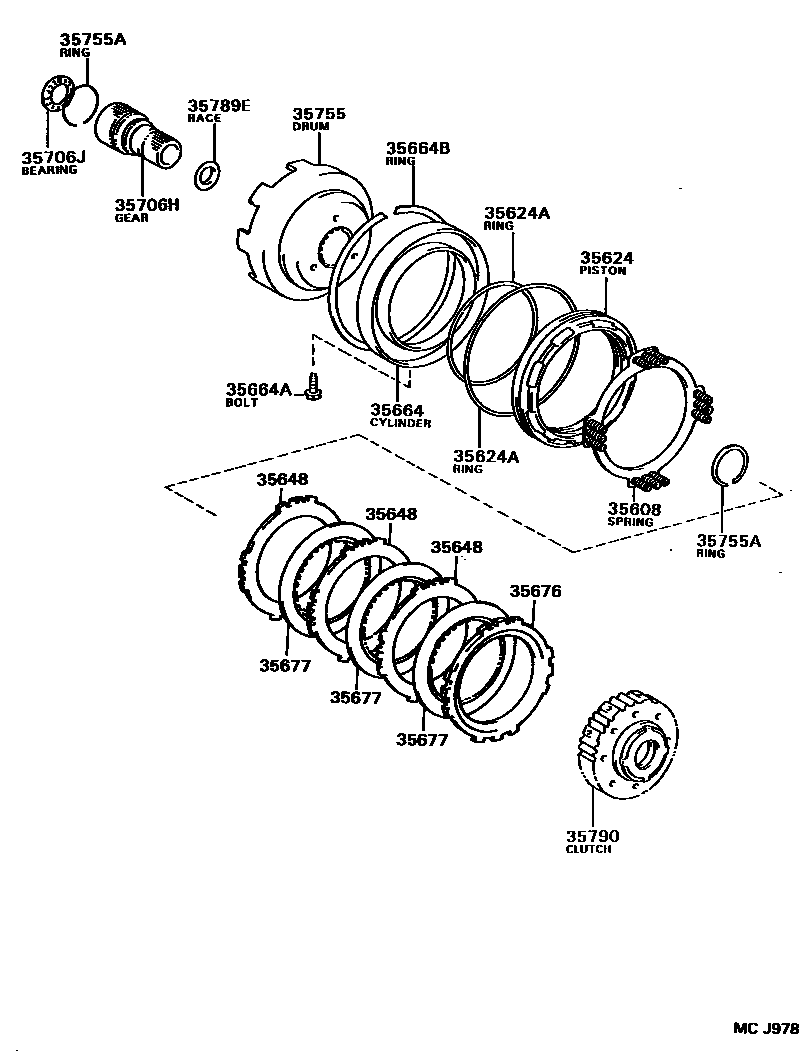

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iSW20..4FC198912-199112

35624PISTON, 2ND BRAKE

main35624-32010iSW20..4FC198912-199112

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iSW20..4FC198912-199112

INNER

main90301-99023iSW20..4FC198912-199112

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010×3iSW20..4FC198912-199112

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iSW20..4FC198912-199112

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iSW20..4FC198912-199112

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iSW20..4FC198912-199112

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iSW20..4FC198912-199112

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-32050×3iSW20..4FC198912-199112

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32030iSW20..4FC198912-199112

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iSW20..4FC198912-199112

35755DRUM, SUN GEAR INPUT

main35755-32020iSW20..4FC198912-199112

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iSW20..4FC198912-199112

T=1.2,ID=44.0

main90520-47003iSW20..4FC198912-199112

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iSW20..4FC198912-199112

35790CLUTCH ASSY, 1 WAY

main35790-32050iSW20..4FC198912-199112

15 parts on this diagram · 1 diagram in section
