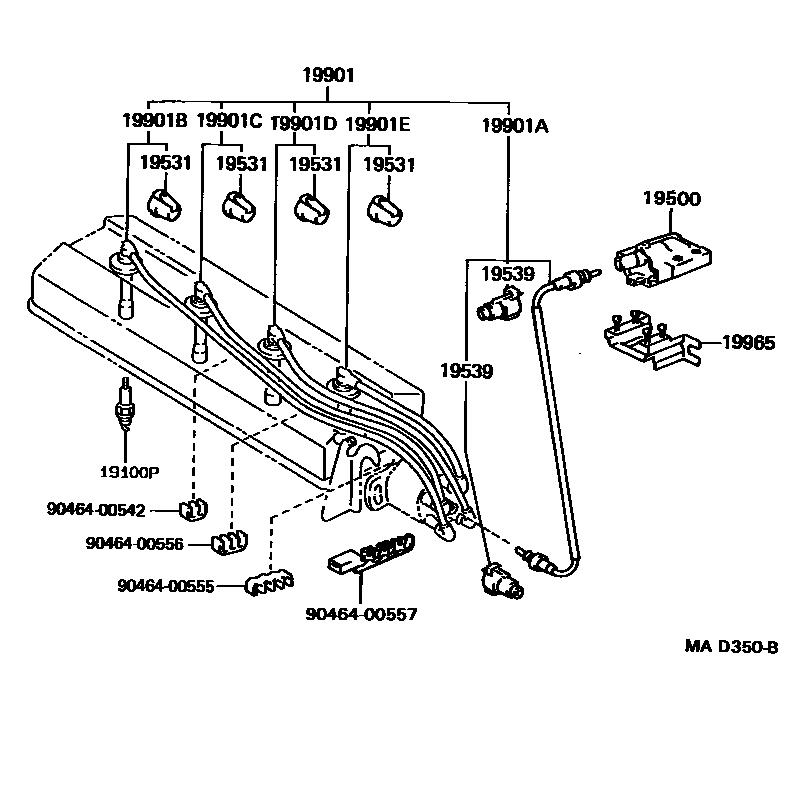

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01166i3SGE..SW20..W198912-199112

K20R-U

main90919-01180i3SGE..SW20..ARL,G198912-199606

PK20R8

sub90919-01231

main90919-01184i3SFE..SW20198912-199208

K20R-U11

19500COIL ASSY, IGNITION

main90919-02185i3SGE..SW20198912-199112

main90919-02197i3SFE..SW20198912-199112

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i3SFE..SW20198912-199208

19539HOLDER, RESISTIVE CODE, NO.4

main19539-74010i3SGE..SW20199112

NO.1

main19539-74010i3SFE..SW20198912-199208

main19539-74020i3SGE..SW20199112

NO.2

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21486i3SFE..SW20198912-199208

main90919-21494i3SGE..SW20198912-199112

main90919-21537i3SGE..SW20199112-199311

main90919-21580i3SGE..SW20199311

19901ACORD, COIL RESISTIVE

main19590-74010i3SFE..SW20198912-199208

main19590-74060i3SGE..SW20198912-199112

sub19590-74070

main19590-74170i3SGE..SW20199112

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15045i3SFE..SW20198912-199208

main90919-15046i3SGE..SW20198912-199112

main90919-15262i3SGE..SW20199112-199311

main90919-15396i3SGE..SW20199311

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15044i3SFE..SW20198912-199208

main90919-15047i3SGE..SW20198912-199112

main90919-15263i3SGE..SW20199112-199311

main90919-15397i3SGE..SW20199311

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15043i3SFE..SW20198912-199208

main90919-15048i3SGE..SW20198912-199112

main90919-15264i3SGE..SW20199112-199311

main90919-15398i3SGE..SW20199311

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15042i3SFE..SW20198912-199208

main90919-15049i3SGE..SW20198912-199112

main90919-15265i3SGE..SW20199112-199311

main90919-15399i3SGE..SW20199311

19965BAND, IGNITION COIL, NO.1

main90919-03112i3S#..SW20198912-199311

9046400542

main90464-00542

9046400555

main90464-00555

9046400556

main90464-00556

9046400557

main90464-00557

15 parts on this diagram · 4 diagrams in section
