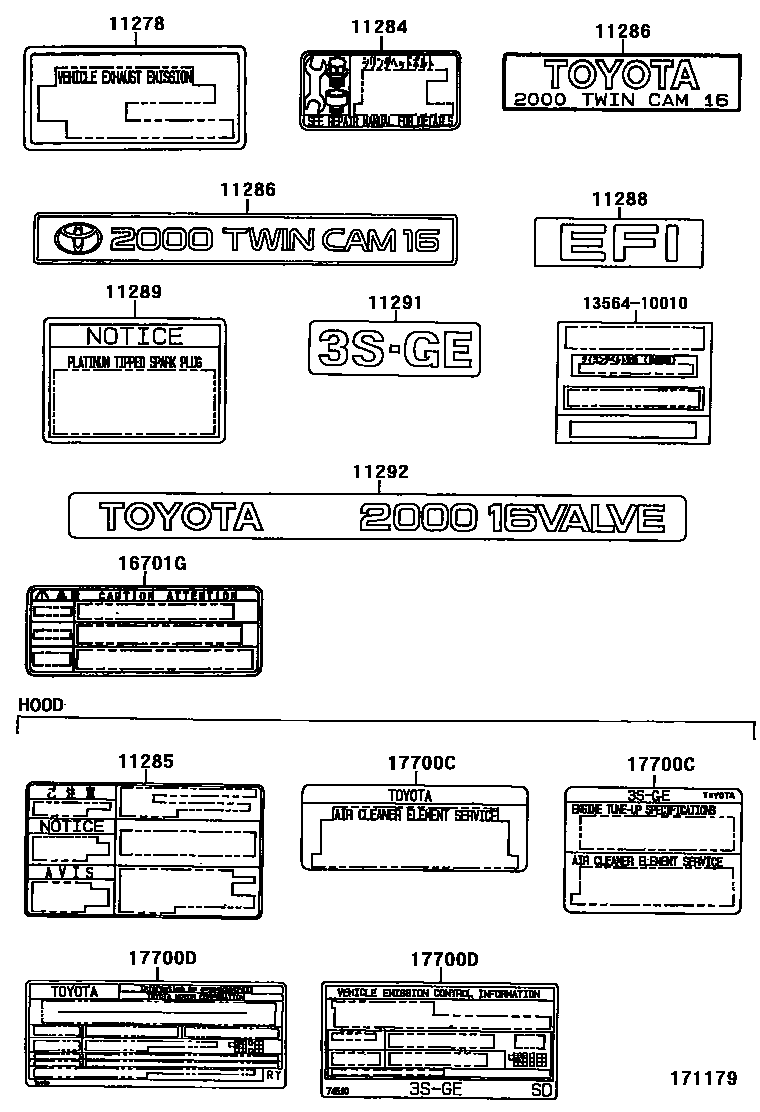

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-16020i3SGE..SW20..RHD..W198912-199112

SINGAPORE SPEC

sub11278-42010

11284PLATE, ENGINE BOLT INFORMATION

main11284-74030i3S#..SW20198912-199309

11285PLATE, COOLANT SYSTEM CAUTION

main11285-16011i3S#..SW20198912-199112

main11285-74010i3S#..SW20199112-199506

11286PLATE, ENGINE SPECIFICATION

main11286-74010i3SGE..SW20198912-199311

main11286-88460i3SGE..SW20199311-199602

sub11286-88461

main11286-88461i3SGE..SW20199602

11288PLATE, ENGINE SYSTEM

main11288-74030i3SFE..SW20198912-199208

sub11288-74020

11289PLATE, SPARK PLUG CAUTION

main11289-73020i3SGE..SW20..ARL,G198912

11291PLATE, ENGINE NAME

main11291-74040i3SFE..SW20198912-199205

sub11291-74070

main11291-74070i3SFE..SW20199205-199208

main11291-88360i3SGE..SW20198912-199311

main11291-88460i3SGE..SW20199311

11292PLATE, ENGINE NAME, NO.2

main11292-74090i3SFE..SW20198912-199208

16701GLABEL, CAUTION

main88723-20081i3SGE..SW20199702

sub16793-31070

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main11293-74080i3SGE..SW20..W198912-199311

main17791-74010i3SGE..SW20..LHD199112-199311

NORWAY SPEC OR FINLAND SPEC

main17791-74010i3SGE..SW20..ARL,G198912-199112

main90917-07118i3SGE..SW20198912-199605

main90917-07118i3SGE..SW20..LHD199605-199606

NORWAY OR FINLAND OR DENMARK SPEC

17700DPLATE, ENGINE CAUTION

main11298-74440i3SGE..SW20..G198912-199112

NORWAY SPEC OR DENMARK SPEC

main11298-74510i3SGE..SW20..ARL198912-199112

main11298-74641i3SGE..SW20..LHD199112-199311

NORWAY SPEC OR FINLAND SPEC

main11298-74730i3SGE..SW20..ARL199112

main11298-7A160i3SGE..SW20..LHD199311-199606

NORWAY OR FINLAND OR DENMARK SPEC

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

12 parts on this diagram · 1 diagram in section
