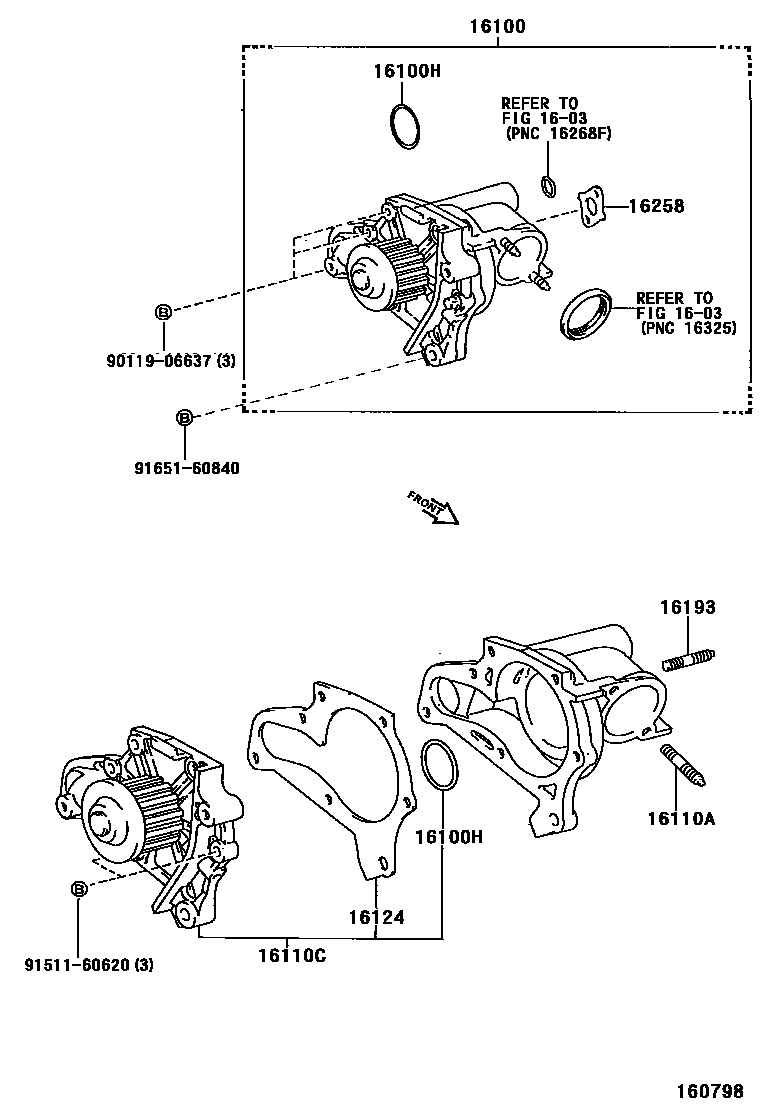

WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-79125i3SGE..SW20198912-199012

main16100-79135i3SFE..SW20198912-199208

main16100-79175i3SGE..SW20199012-199311

main16100-79225i3SGE..SW20199311

16100HRING, O(FOR WATER PUMP)

main90301-37005i3S#..SW20198912

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010×2i3S#..SW20198912

16110CPUMP ASSY, WATER, W/O COVER

main16110-79025i3SFE..SW20198912-199208

main16110-79115i3SGE..SW20198912-199311

main16110-79135i3SGE..SW20199311

16124GASKET, WATER PUMP COVER

main16124-74020i3S#..SW20198912-199308

main16124-88460i3SGE..SW20199308

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i3S#..SW20198912

16258GASKET(FOR HEATER RETURN)

main16258-74020i3SFE..SW20198912-199208

main16258-88381i3SGE..SW20198912-199311

main16258-88460i3SGE..SW20199311

9011906637

main90119-06637

9151160620

main91511-60620

9165160840

main91651-60840

11 parts on this diagram · 3 diagrams in section
