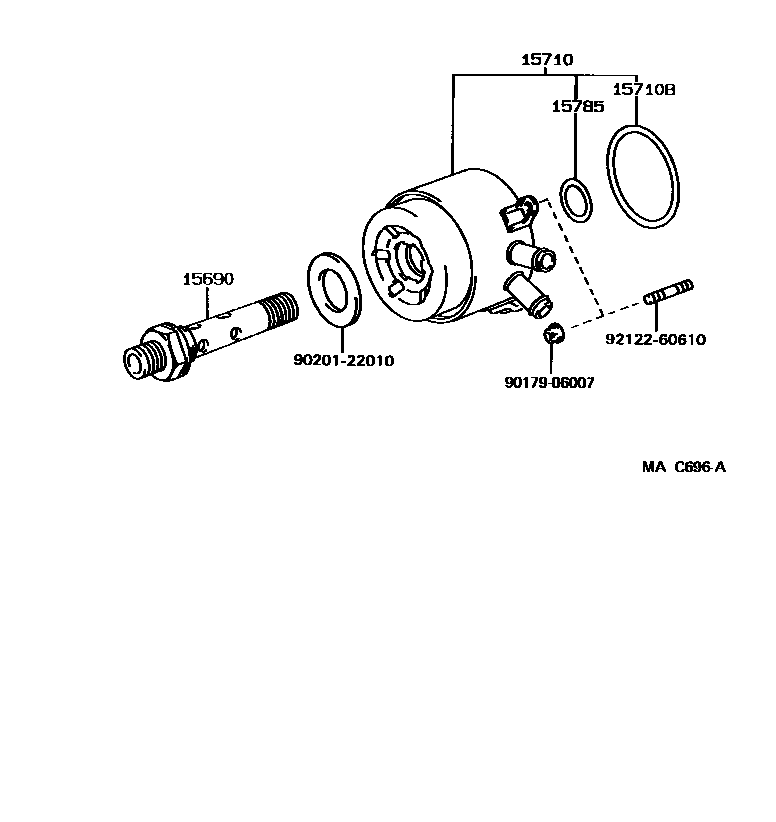

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-65020i3SGE..SW20199311-199606

main15690-74011i3SFE..SW20198912-199112

main15690-74020i3SFE..SW20199112-199208

main15690-88360i3SGE..SW20198912-199311

main15695-62010i3SGE..SW20199606

15710COOLER ASSY, OIL

main15700-88360i3SGE..SW20198912-199311

main15710-74022i3SFE..SW20198912-199112

main15710-74030i3SFE..SW20199112-199208

main15710-88460i3SGE..SW20199311-199606

main15710-88471i3SGE..SW20199606

15710BRING, O(FOR OIL COOLER)

main90301-52002i3S#..SW20198912-199311

main90301-56005i3SGE..SW20199311-199707

main90301-58002i3SGE..SW20199707

15785GASKET, OIL COOLER

main15785-35010i3S#..SW20198912-199311

9017906007

main90179-06007

9020122010

main90201-22010

9212260610

main92122-60610

7 parts on this diagram · 4 diagrams in section
