STEERING WHEEL

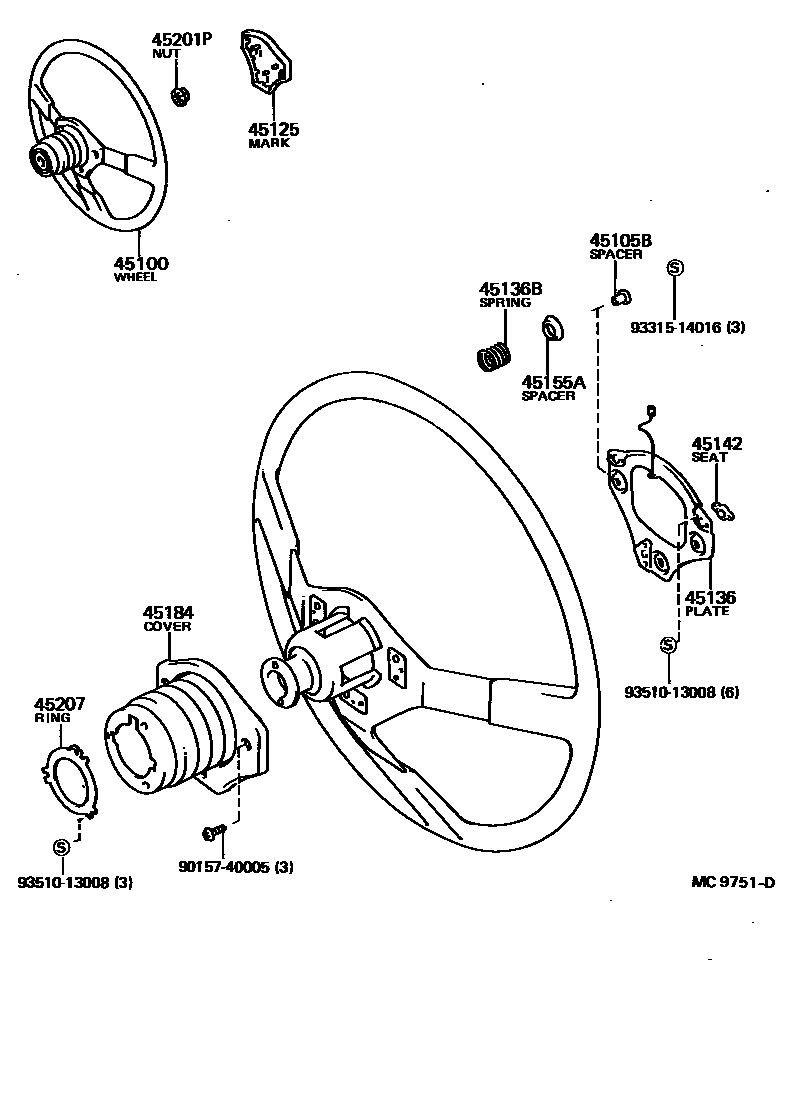

Parts diagram

45100WHEEL ASSY, STEERING

main45100-12300-01i198411-198508

BLACK

main45100-12450i198411-198508

LEATHER

main45100-17030i198508-198608

main45100-17040i198508-198601

LEATHER

main45100-17040-01i198601-198608

LEATHER,BLACK,BLACK,TRIM2#

main45100-17050-01i198803-198804

BLACK,TRIM2#

main45100-17050-04i198804-198912

DARK BLUE,TRIM8#

main45100-17050-05i198804-198808

DARK BEIGE,TRIM4#

main45100-17050-11i198808-198912

BLACK,TRIM2#

main45100-17070-01i198803-198808

BLACK,TRIM2#; LEATHER,BLACK,BLACK,TRIM2#

main45100-17070-04i198803-198912

DARK BLUE,TRIM8#; LEATHER,BLUE,DARK BLUE,TRIM8#

main45100-17070-05i198702-198803

LEATHER,BEIGE,DARK BEIGE,TRIM4#

main45100-17070-11i198808-198912

BLACK,TRIM2#; LEATHER,BLACK,BLACK,TRIM2#

main45100-17080-01i198702-198803

LEATHER,BLACK,BLACK,TRIM2#

main45100-17080-04i198804-198912

DARK BLUE,SYNTHETIC LEATHER,DARK BLUE,TRIM8#

main45100-17080-05i198803-198804

SYNTHETIC LEATHER,BEIGE,DARK BEIGE,TRIM4#

main45100-17080-11i198808-198912

SYNTHETIC LEATHER,BLACK,BLACK,TRIM2#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-17020i198608-198804

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04010×3i198411-198608

45125MARK, STEERING WHEEL PAD

main45125-12310-01i198411-198608

BLACK

45136PLATE, HORN BUTTON CONTACT

main45136-12120i198411-198608

45136BSPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE)

main90501-10083×3i198411-198608

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-12050×3i198411-198608

45155ASPACER, HORN CONTACT

main45155-12030×3i198411-198608

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12070-01i198411-198608

BLACK

45201PNUT, STEERING WHEEL SET

main90179-12025i198608-198804

main90179-12086i198411-198608

45207RING, HORN CONTACT

main45176-14050i198411-198608

9015740005

main90157-40005

9331514016

main93315-14016

9351013008

main93510-13008

14 parts on this diagram · 2 diagrams in section
