INDICATOR

3312

5501

81840CLAMP ASSY, DOOR INDICATOR

main81840-12010iTE7#..GT,SE,SR,XE197908-198204

main81840-12011iTE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN)198108-198401

main81850-12050iAE71,KE70..4D..ARL198108-198410

81840DBULB, DOOR INDICATOR LAMP

main90981-11018iTE7#..GT,SE,SR,XE197908-198401

12V 1.4W

81850LAMP ASSY, INDICATOR

main81850-12100iKE70,TE7#..(CP,LB)..(GEN,SA)197908-198305

main81850-12110iTE72..ARL197908-198108

main81850-12130iTE71..RHD..EUG197908-198108

main81850-12150iKE70..(CP,LB)..EUG197908-198108

HAZARD WARNING

81850BBULB, INDICATOR LAMP

main90981-11018iKE70,TE7#..CP,LB197908-198305

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034iKE70,TE7#..CP,LB197908-198305

12V 3.4W,12V 3.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-10010iTE71..SE;TE72..(SE,XE)..(EUR,SA)197908-198305

12V 3.4W

sub83101-14030

main83101-22010iKE70,TE7#..CP,LB197908-198305

12V 1.4W

sub83101-14040

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81850-12040iKE70,TE7#197908-198008

main81850-12041iKE70,TE7#198008-198108

main81850-12042iAE71,CE70,KE70,TE7#198108-198707

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iAE71,CE70,KE70,TE7#197908-198707

12V 1.2W W/O SOCKET,12V 1.4W

81943LENS, HEATER CONTROL INDICATOR

main81940-12010iTE7#..RHD..(ARL,EUR)197908-198008

main81940-12011iTE7#..RHD..(ARL,EUR)198008-198108

sub81940-12012

main81940-12012iTE72..(SE,XE)..(EUR,SA)198108-198308

main81940-12013iTE7#..LB198308-198401

main81940-12020iKE70,TE71..(CP,LB)..RHD..GEN197908-198008

main81940-12021iKE70,TE71..(CP,LB)..RHD..(GEN,SA)198008-198204

sub81940-12022

main81940-12030iKE70,TE7#..(CP,LB)..LHD..EUR197908-198008

main81940-12040iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

main81940-12041iKE70,TE71..(CP,LB)..LHD..GEN198008-198108

main81940-12050iKE70,TE71..(CP,LB)..RHD..GEN197908-198406

W/O HEATER

main81940-12060iKE70,TE71..(CP,LB)..LHD197908-198308

W/O HEATER

main81940-12072iKE70,TE7#..(CP,LB)..LHD..EUR198008-198108

sub81940-12073

main81940-12073iTE71..(CP,LB)..LHD;KE70,TE72..(CP,LB)..LHD..DX198108-198308

main81940-12080iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

*BV ONLY

main81940-12082iKE70,TE71..(CP,LB)..LHD..GEN198008-198108

*BV ONLY

sub81940-12083

main81940-12083iTE71..SAA198108-198308

*BV ONLY

main81940-12090iKE70,TE71..(CP,LB)..RHD..GEN197908-198008

*BV ONLY

main81940-12091iKE70,TE71..(CP,LB)..RHD..GEN198008-198108

*BV ONLY

sub81940-12092

main81940-12092iKE70,TE71..(CP,LB)..RHD..GEN198108-198406

*BV ONLY

main81942-12050iKE70,TE71..(CP,LB)..RHD..GEN198108-198406

*BV & AIR CONDITIONER

main81942-12060iTE71..SAA198108-198308

*BV & AIR CONDITIONER

main81943-12040iKE70..RHD..EUG197908-198008

main81943-12041iKE70..RHD..EUG198008-198305

sub81943-12042

main81943-12042iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198308

main81943-12050iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

main81943-12051iKE70,TE71..(DV,SED,WG)..LHD..GEN198008-198108

main81943-12060iKE70..(SED,WG)..LHD..EUR197908-198008

main81943-12072iKE70..(SED,WG)..LHD..EUR198008-198108

sub81943-12075

main81943-12073iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198409

sub81943-12075

main81943-12074iCE70,KE70..LHD198409-198508

sub81943-12075

main81943-12075iAE71,CE70,KE70..LHD198508-198707

main81943-12080iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

*BV ONLY

main81943-12081iKE70,TE71..(DV,SED,WG)..RHD..GEN198008-198108

*BV ONLY

sub81943-12083

main81943-12082iKE70,TE71..(DV,SED,WG)..RHD..GEN198108-198508

*BV ONLY

sub81943-12083

main81943-12083iKE70..RHD..GEN198508-198707

*BV ONLY

main81943-12090iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

*BV ONLY

main81943-12092iKE70,TE71..(DV,SED,WG)..LHD..GEN198008-198108

*BV ONLY

sub81943-12095

main81943-12093iKE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198409

*BV ONLY

sub81943-12095

main81943-12094iKE70..LHD198409-198508

*BV ONLY

sub81943-12095

main81943-12095iAE71,KE70..LHD198508-198707

*BV ONLY

main81943-12100iKE70,TE71..(DV,SED,WG)..RHD..(GEN,SA)197908-198008

main81943-12101iKE70,TE7#..SED..SA198008-198204

sub81943-12180

main81943-12191iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD198305-198508

main81943-12192iAE71,CE70,KE70..RHD198508-198707

9356755016

main93567-55016

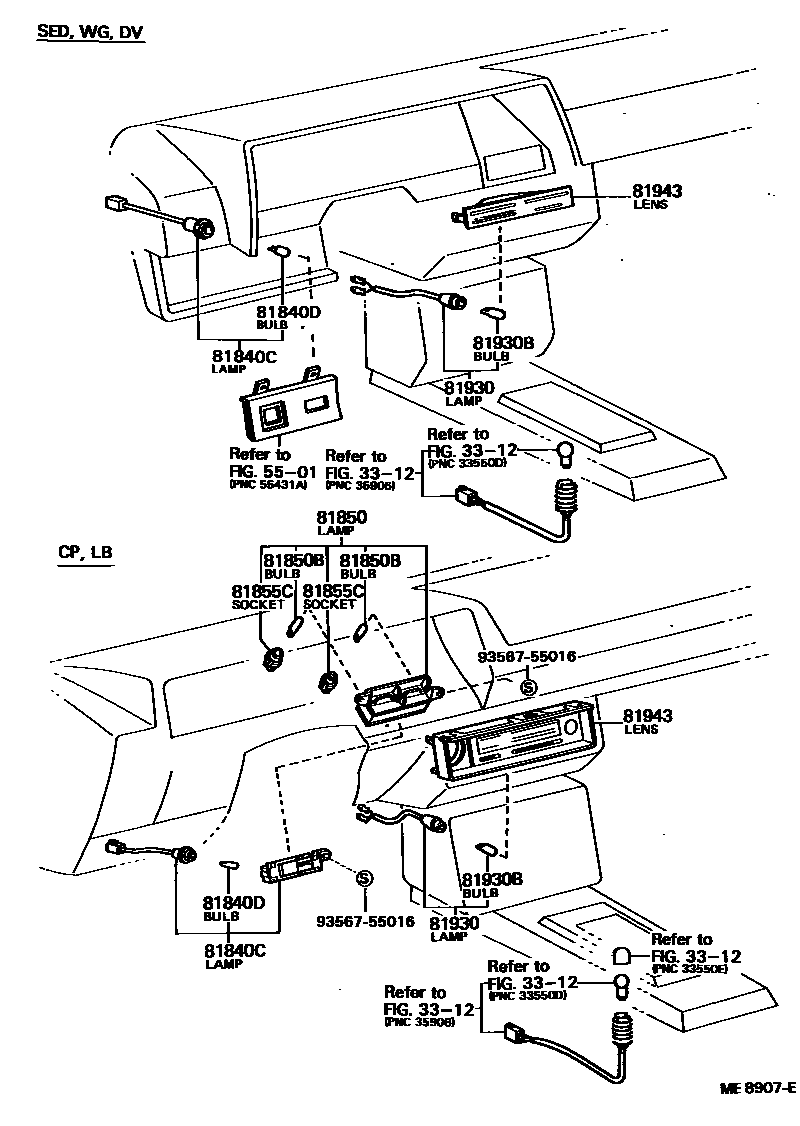

11 parts on this diagram · 1 diagram in section
