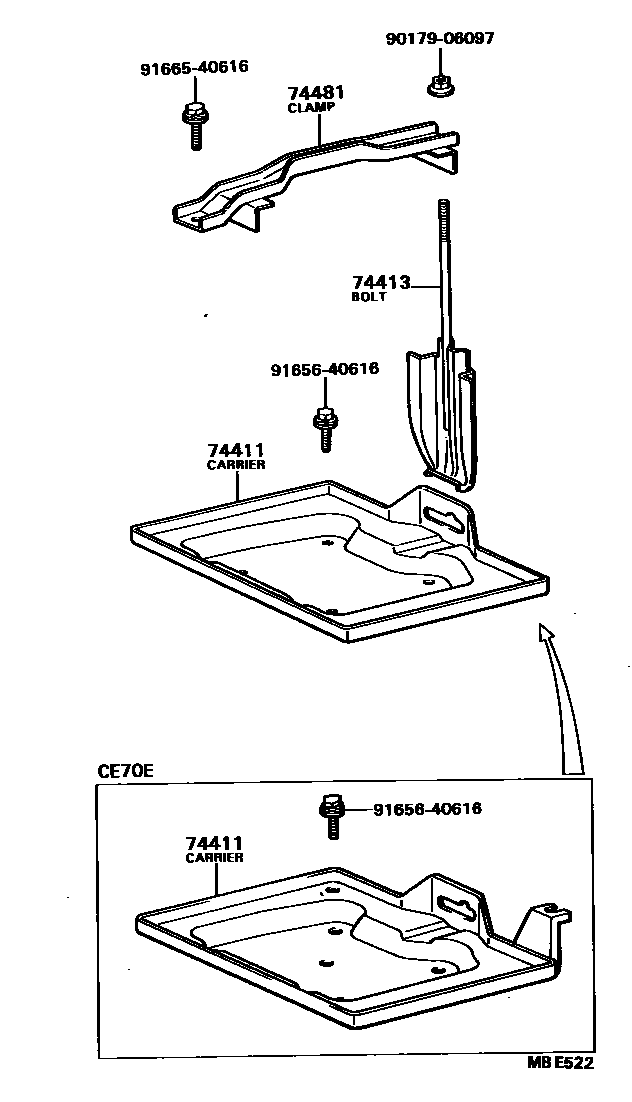

BATTERY CARRIER

74411CARRIER, BATTERY

main74403-12010iCE70198210-198301

LH

main74411-12110iTE71..LB..LHD..EUG197908-198305

*FRG,W/NS60L

main74411-12120iKE70,TE7#..EUR,SA197908-198305

W/N50ZL,55D23L

main74411-12130iCE70..LHD198210-198707

RH

main74412-12010iCE70..LHD198210-198305

*FRG SPEC,RH

main74431-14010iAE71,KE70,TE71..GEN,SAA197908-198707

W/NS40ZAL,NS40SL

main74431-14020iAE71,KE70..(DV,WG)..GEN; KE70..EUG;KE70,TE71..SAA198305-198707

W/N40L; W/N40L,NS40L

main74431-14050iAE71,KE70..4D..ARL198305-198410

W/NS40ZAL

74413BOLT, BATTERY CLAMP

main74402-12010iCE70..LHD198305-198707

RH,W/50D20R,NT80-S6

main74407-12060iKE70,TE72..2D..ARL; TE71..EUR,GEN,SAA;KE70..RHD..(EUR,GEN);KE70..SED..LHD..ATM..DX;KE70..(CP,LB,WG)..LHD..EUG;KE70..SED..LHD..MTM..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..MTM..DX..(GEN,SAA)197908-198305

W/N40L,NS40SL,NS40ZAL

main74407-12070iAE71,CE70,KE70,TE7#..EUR,SA; CE70..LHD198305-198707

LH,W/50D20L; W/55D23L,NX110

main74407-12080iCE70..LHD..DX198305-198707

*FRG,LH,W/NT80-S6

74481CLAMP, BATTERY HOLD DOWN

main74404-12110iTE71..EUR,GEN,SAA;KE70..LHD..DX..EUG;KE70..RHD..(EUR,GEN);KE70..LHD..(GL,STD,XL);KE70..LHD..DX..(GEN,SAA)198201-198305

W/NS40ZAL,NS40SL,NS60L

main74404-12130iAE71,KE70..(DV,WG)..GEN; KE70..EUG;KE70,TE71..SAA198305-198707

W/N40L; W/NS40L,N40L

main74404-12140iKE70..LHD..4F..4D..EUG;KE70..SED..LHD..2FC..EUG;KE70..(LB,SED)..LHD..4F..2D..EUG197908-198008

*FRG,W/N40L

main74404-12150iKE70,TE7#..EUR,SA197908-198305

W/N50ZL,55D23L

main74404-12160iTE71..LB..LHD..EUG197908-198305

*FRG,W/NS60L

main74404-12180iCE70198210-198301

LH

main74406-12010iCE70..LHD198305-198707

RH,W/50D20R

main74406-12020iCE70..LHD198210-198305

*FRG,RH

9017906097

main90179-06097

9165640616

main91656-40616

9166540616

main91665-40616

6 parts on this diagram · 1 diagram in section
