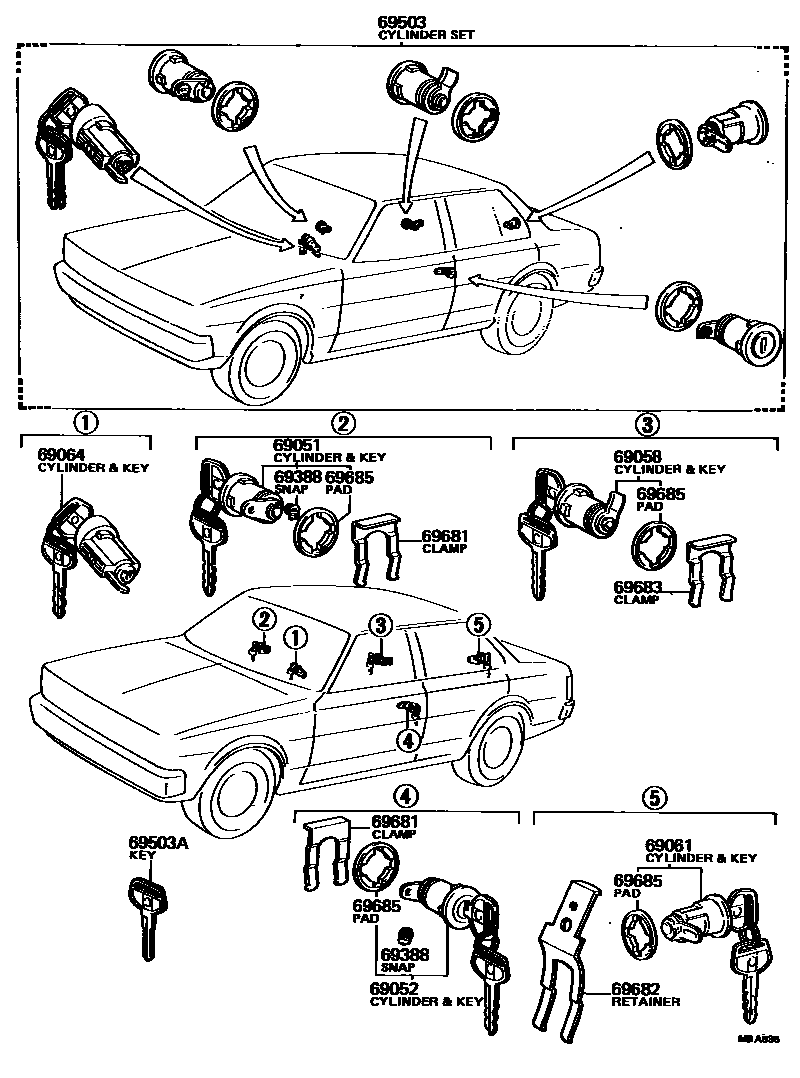

LOCK CYLINDER SET

0001 1 0004 1 0005 1 0009 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-13080iCE70,KE70..EUR198305-198707

main69051-19175iKE70,TE7#..CP,LB,SED197908-198003

sub69051-19176

main69051-19176iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198003-198502

sub69051-39036

main69051-19195iKE70..LB..4F..EUG;TE71..LB..LHD..EUG;KE70..SED..LHD..(2FC,4F)..EUR197908-198003

*FRG

sub69051-19196

main69051-19196iKE70..LB..4F..EUG;TE71..LB..LHD..EUG;KE70..SED..LHD..(2FC,4F)..EUG198003-198108

*FRG

main69051-19205iKE70..WG..LHD..4F..4D..EUG197908-198002

*FRG

sub69051-19206

main69051-19206iKE70..WG..LHD..4F..4D..EUG198002-198108

*FRG

sub69051-13080

main69051-19315iKE70,TE7#..CP,LB,SED198109-198206

sub69051-19176

main69051-29266iKE70,TE71..DV,WG198109-198206

main69051-29285iKE70,TE71..DV,WG197908-198002

sub69051-29286

main69051-29286iAE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)198002-198707

sub69051-13080

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-13080iCE70,KE70..EUR198305-198707

main69052-19175iKE70,TE7#..CP,LB,SED197908-198003

sub69052-19176

main69052-19176iKE70,TE7#..CP,LB,SED198003-198502

sub69052-39036

main69052-19195iKE70..LB..4F..EUG;TE71..LB..LHD..EUG;KE70..SED..LHD..(2FC,4F)..EUR197908-198003

*FRG

sub69052-19196

main69052-19196iKE70..SED..STD..EUG;KE70,TE71..(LB,SED)..LHD..(2FC,3FC,5F)..EUG198003-198108

*FRG

main69052-19205iKE70..WG..LHD..4F..4D..EUG197908-198002

*FRG

sub69052-19206

main69052-19206iKE70..WG..LHD..4F..4D..EUG198002-198108

*FRG

sub69052-13080

main69052-19315iKE70,TE7#..CP,LB,SED198109-198206

sub69052-19176

main69052-29266iKE70,TE71..DV,WG198109-198206

main69052-29285iKE70,TE71..DV,WG197908-198002

sub69052-29286

main69052-29286iAE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)198002-198707

sub69052-13080

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-13070iCE70,KE70..EUR198305-198707

main69058-19065iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

sub69058-37070

main69058-19075iKE70,TE71..DV,WG197908-198108

sub69058-19095

main69058-19085iKE70..SED..STD..EUG;KE70,TE71..(LB,SED)..LHD..(2FC,3FC,5F)..EUG197908-198108

*FRG

main69058-19095iKE70..WG..LHD..4F..4D..EUG197908-198108

*FRG

main69058-19175iKE70,TE71..DV,WG198108-198707

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-12120iCE70,KE70,TE71..SED..LHD..EUR198108-198305

sub69055-19555

main69055-12130iKE70,TE7#..(CP,LB)..LHD..(EUG,SDN)198108-198305

sub69055-19195

main69055-12350iTE72..GL198305-198404

main69055-19155iTE72..SE,XE;KE70,TE71..(CP,LB)..(GEN,SA,SAA)197908-198406

sub69055-19535

main69055-19165iAE71,KE70,TE71..SED197908-198502

main69055-19185iCE70,KE70..SED..RHD..EUG197908-198305

sub69055-19555

main69055-19195iKE70,TE7#..(CP,LB)..EUR197908-198305

main69055-19275iKE70..SED..STD..EUG;KE70..SED..LHD..(2FC,5F)..EUG197908-198108

*FRG

main69055-19305iKE70,TE71..LB..LHD..(3FC,5F)..EUG197908-198108

*FRG

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12030iKE70,TE7#..CP,LB,SED197908-198502

sub69057-12060

main69057-12040iKE70..LB..4F..EUG;TE71..LB..LHD..EUG;KE70..SED..LHD..(2FC,4F)..EUG197908-198108

*FRG

main69057-13020iKE70..WG..SAA197908-198309

sub69057-13021

main69057-13021iAE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA)198305-198508

sub69057-13022

main69057-13022iAE71,KE70..GEN,SA198508-198707

main69057-13030iKE70..WG..LHD..5F;KE70..WG..4D..STD..EUG197908-198108

*FRG

sub69057-13050

main69057-13050iCE70,KE70..EUR198305-198508

main69057-13051iCE70,KE70..EUR198508-198707

main69057-19015iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

main69057-19015iCE70,KE70..LHD..EUR198305-198412

W/NEIMAN KEY

69388SNAP, ROD(FOR DOOR LOCK)

main69377-30020iKE70,TE7#197908-198707

main69759-24080iKE70,TE7#198109-198206

RH

main69759-24090iKE70,TE7#198109-198206

LH

69503CYLINDER SET, LOCK

main69005-12150iKE70,TE7#..SED..(ARL,GEN,SA,SAA)197908-198502

main69005-12170iTE72..SE,XE;KE70,TE71..(CP,LB)..(GEN,SA,SAA)197908-198406

main69005-12190iKE70..SED..EUR197908-198305

main69005-12200iKE70,TE7#..(CP,LB)..EUR197908-198305

main69005-12210iKE70..SED..LHD..(2FC,4F)..EUG197908-198108

*FRG

main69005-12220iKE70,TE71..LB..LHD..(3FC,5F)..EUG197908-198108

*FRG

main69005-12280iCE70,KE70..LHD..EUR198305-198412

W/NEIMAN KEY

main69005-12280iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

main69005-12600iTE72..GL198305-198404

main69005-13060iKE70,TE71..DV,WG197908-198108

main69005-13070iKE70..WG..LHD..4F..4D..EUG197908-198108

*FRG

main69005-13091iKE70..WG..RHD..EUG;KE70,TE71..(DV,WG)..(ARL,GEN,SA,SAA)198108-198309

main69005-13092iAE71,KE70,TE71..(DV,WG)..(ARL,GEN,SA)198305-198508

sub69005-13093

main69005-13093iAE71,KE70..GEN,SA198508-198707

sub69005-13111

main69005-13110iCE70,KE70..EUR198305-198508

sub69005-13111

main69005-13111iCE70,KE70..EUR198508-198707

69503AKEY, BLANK

main69515-12050iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198412

MASTER KEY,NEIMAN

main90999-00066iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

MASTER KEY,MASTER KEY

sub90999-00085

main90999-00067iKE70,TE71..DV,WG197908-198707

MASTER KEY

main90999-00068iAE71,CE70,KE70,TE7#..SED197908-198502

SUB KEY,SUB KEY

sub90999-00094

main90999-00074iKE70..SED..STD..EUG;KE70,TE71..(LB,SED)..LHD..(2FC,3FC,5F)..EUG197908-198108

MASTER KEY,*FRG

sub90999-00104

main90999-00075iKE70..SED..STD..EUG;KE70..SED..LHD..(2FC,5F)..EUG197908-198108

SUB KEY,*FRG

sub90999-00094

main90999-00081iKE70..WG..LHD..5F;KE70..WG..4D..STD..EUG197908-198108

MASTER KEY,W(*68),MASTER KEY,*FRG

sub90999-00124

main90999-00081iCE70,KE70..EUR198305-198707

MASTER KEY,W(*68)

sub90999-00124

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iAE71,CE70,KE70,TE7#197908-198707

69682RETAINER, LOCK CYLINDER

main69551-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

main69561-12050iAE71,CE70,KE70,TE7#..SED197908-198502

main69561-12090iKE70,TE71..CP197908-198305

main69561-12100iKE70,TE7#..LB197908-198406

69683CLAMP, FUEL LOCK CYLINDER

main69581-14010iAE71,CE70,KE70,TE71..DV,WG197908-198707

main69681-20040iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198412

W/NEIMAN KEY

main69681-20040iKE70,TE71..DV,WG197908-198108

69685PAD, LOCK CYLINDER

main69513-12020iAE71,CE70,KE70,TE7#..CP,LB,SED198003-198502

W/DOOR

main69513-12020iAE71,CE70,KE70,TE71..DV,WG198002-198707

W/FR DOOR

main69513-12020iAE71,CE70,KE70,TE71..DV,WG198108-198707

W/FUEL

main69513-14010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

W/FUEL LID

main69553-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

W/BACK DOOR

main69685-12010iAE71,CE70,KE70,TE7#..CP,LB,SED198003-198502

W/LUGGAGE,BACK DOOR

main69685-12010iKE70,TE71..DV,WG197908-198002

W/DOOR,FUEL

main69685-12010iKE70,TE7#..CP,LB,SED197908-198003

W/DOOR,LUGGAGE

12 parts on this diagram · 4 diagrams in section
