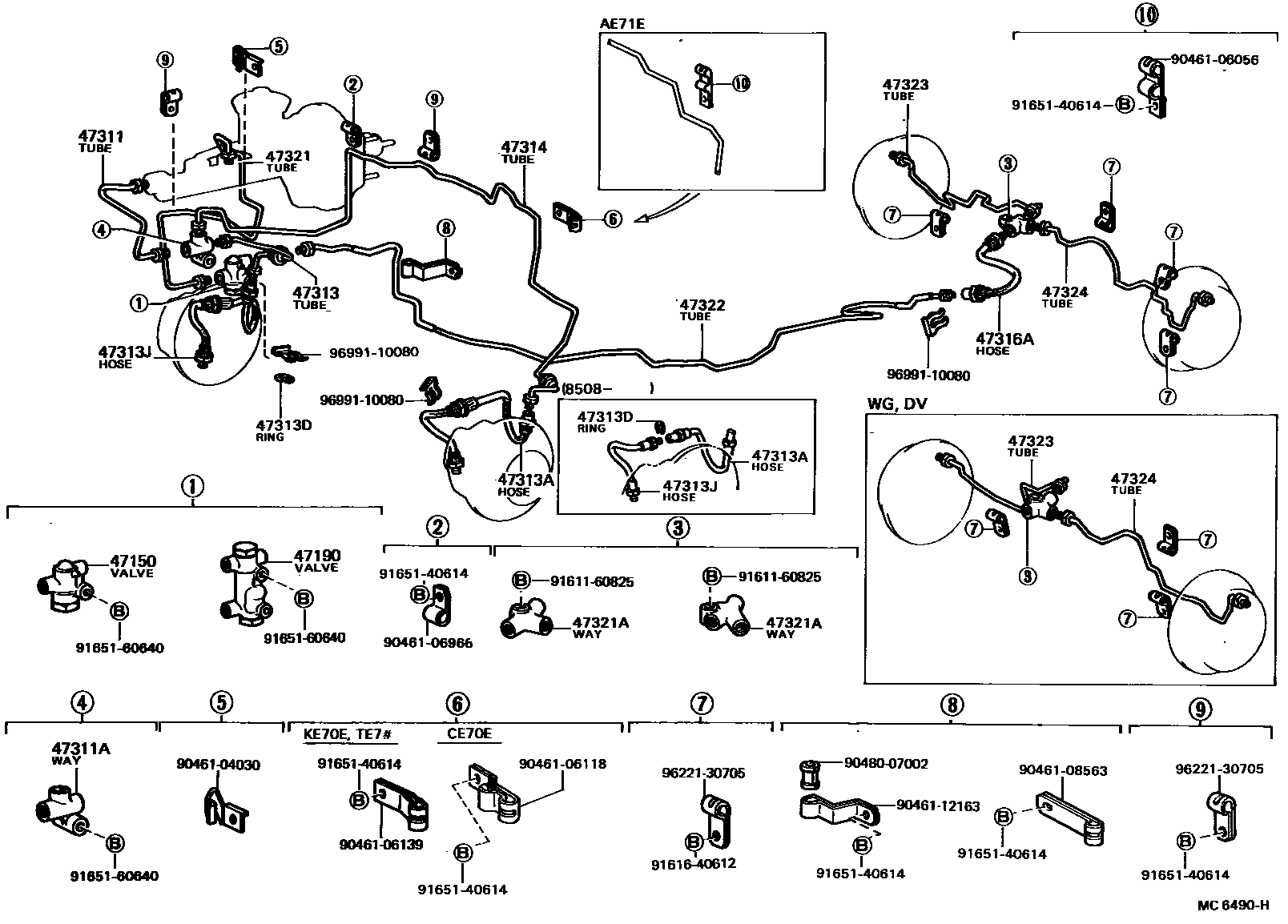

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-12041iAE71,KE70,TE71..EUR,GEN,SAA197908-198707

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12010iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR197908-198707

20KG/CM2

main47190-12020iCE70,TE71..RHD..EUG197908-198305

15KG/CM2

sub47190-12050

main47190-12030iCE70,TE71..LHD..EUG197908-198707

15KG/CM2

main47190-12050iCE70..RHD198501-198707

15KG/CM2

sub47190-43010

main47190-22030iKE70..RHD..EUG197908-198707

20KG/CM2

main47190-22040iKE70..4D..ARL198108-198110

30KG/CM2

47311TUBE, FRONT BRAKE, NO.1

main47312-12030iTE7#..RHD..(ARL,EUR,GEN)197908-198305

main47312-12040iAE71,KE70,TE7#..ARL,SA197908-198707

main47312-12050iKE70..LHD..EUG197908-198108

sub47312-12080

main47312-12060iTE71..SAA197908-198308

sub47312-12090

main47312-12070iTE7#..LHD..(EUG,SDZ)198108-198305

main47312-12080iKE70..SDN,SDZ197908-198305

SWEDEN PACKAGE

main47312-12090iTE72..EUR197908-198305

SWEDEN PACKAGE

main47312-12100iKE70..LHD..(GEN,SAA)197908-198308

main47312-12110iKE70..LHD..(EUG,SDZ)198108-198305

main47312-12120iAE71..GEN198508-198707

main47312-12130iCE70..LHD198210-198707

main47312-12160iAE71..STD198305-198707

main47312-12190iTE71..GEN198305-198406

main47312-12230iKE70..LB..LHD..GEN;KE70..LHD..4D..DX..GEN;KE70..LHD..(GL,STD,XL)..GEN198304-198305

CKD SPEC

main47312-13010iKE70..LHD..(EUR,GEN)198305-198707

main47312-13020iKE70..SDZ198305-198707

SWEDEN PACKAGE

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iKE70,TE7#..RHD..(GEN,SA)197908-198707

main90413-10004iCE70,KE70,TE7#..LHD197908-198707

47313TUBE, FRONT BRAKE, NO.3

main47314-12110iCE70,KE70..RHD..(ARL,EUR,GEN)197908-198707

main47314-12130iTE7#..RHD..(ARL,EUR)197908-198305

main47314-12140iKE70,TE71..LHD..GEN197908-198108

main47314-12141iKE70,TE71..SAA198108-198308

sub47314-13020

main47314-12160iTE71..RHD..GEN197908-198305

sub47314-12170

main47314-12170iKE70,TE72..SDN,SDZ197908-198305

SWEDEN PACKAGE

sub47314-12250

main47314-12181iAE71..GEN198508-198707

main47314-12250iCE70,KE70..LHD..EUR198305-198707

main47314-13010iCE70,KE70..RHD..(EUR,GEN)198305-198707

main47314-13020iKE70..LHD..GEN198305-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02393iAE71,KE70,TE72..2D..ARL197908-198707

main90947-02476iAE71,CE70,KE70..EUR,GEN198508-198707

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200iAE71,CE70,KE70,TE7#197908-198707

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02224iTE71..GEN,SAA197908-198508

main96960-32304iCE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

sub96960-32306

47314TUBE, FRONT BRAKE, NO.4

main47315-12250iKE70,TE7#..SA197908-198305

sub47315-13010

main47315-12260iTE7#..RHD..(ARL,EUR,GEN)197908-198305

sub47315-12390

main47315-12280iCE70,TE71..LHD;KE70..SED..LHD..4F..DX..EUG;KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX197908-198308

sub47315-12290

main47315-12290iKE70,TE72..SDN,SDZ197908-198305

SWEDEN PACKAGE

sub47315-13040

main47315-12300iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

main47315-12310iCE70..RHD198210-198305

sub47315-13020

main47315-12390iTE71..GEN198305-198406

main47315-13010iKE70..RHD..GEN198305-198707

main47315-13020iCE70..RHD198501-198707

main47315-13030iKE70..RHD..EUG198305-198707

main47315-13040iCE70,KE70..LHD..(EUR,GEN)198305-198707

main47315-13050iAE71..RHD198305-198707

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02409iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

sub90947-02724

main96940-32805iCE70,KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SA,SAA)197908-198502

main96940-33155iKE70,TE71..DV,WG197908-198108

47321TUBE, REAR BRAKE, NO.1

main47322-12010iTE7#..RHD..(ARL,EUR,GEN)197908-198305

main47322-12020iKE70..LHD..(EUG,SDZ)197908-198305

sub47322-12060

main47322-12030iAE71,KE70..4D..ARL197908-198707

main47322-12040iTE71..SAA197908-198308

sub47322-12070

main47322-12060iKE70..SDN,SDZ197908-198305

SWEDEN PACKAGE

main47322-12070iTE72..EUR197908-198305

SWEDEN PACKAGE

main47322-12090iKE70..LHD..(GEN,SAA)197908-198308

main47322-12100iAE71..GEN198508-198707

main47322-12110iCE70..LHD198210-198707

main47322-12170iTE71..GEN198305-198406

main47322-13010iAE71..STD198305-198707

main47322-13020iKE70..LHD..(EUR,GEN)198305-198707

main47322-13030iKE70..SDZ198305-198707

SWEDEN PACKAGE

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10029iAE71,CE70,KE70,TE71..DV,WG197908-198707

main90413-10098iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

47322TUBE, REAR BRAKE, NO.2

main47323-12010iKE70..(CP,LB,SED)..RHD197908-198204

main47323-12020iTE7#..(CP,LB,SED)..RHD..(ARL,EUR,GEN)197908-198305

sub47323-12190

main47323-12030iKE70..2D..ARL197908-198309

sub47323-13040

main47323-12040iTE71..WG..RHD..GEN197908-198305

sub47323-12030

main47323-12050iKE70,TE72..(LB,SED)..(SDN,SDZ)197908-198305

main47323-12060iKE70..WG..(SDN,SDZ)197908-198305

sub47323-13060

main47323-12070iKE70,TE71..(LB,SED)..SAA197908-198308

sub47323-12050

main47323-12080iKE70..WG..SAA197908-198308

sub47323-12060

main47323-12110iTE71..SED..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198305

sub47323-12180

main47323-12120iCE70..RHD198210-198305

sub47323-12180

main47323-12130iCE70..LHD198210-198305

main47323-12180iTE7#..(LB,SED)..SA;KE70..SED..(GEN,SA)198305-198502

main47323-12190iTE71..GEN198305-198406

main47323-13030iCE70..LHD198305-198707

main47323-13040iAE71..STD198305-198707

main47323-13050iCE70..RHD198501-198508

main47323-13051iCE70..RHD198508-198707

main47323-13060iAE71,KE70..LHD..(EUR,GEN)198305-198707

47323TUBE, REAR BRAKE, NO.3

main47324-12010iKE70..SED..SAA197908-198308

sub47324-12120

main47324-12040iCE70,TE71..(DX,SR,XE)..EUG197908-198305

sub47324-12130

main47324-12050iTE71..GT;TE72..ARL197908-198009

sub47324-12070

main47324-12051iTE71..GT;TE72..ARL198009-198305

sub47324-12071

main47324-12060iKE70..SED..(SDN,SDZ)197908-198305

main47324-12070iTE72..SDN197908-198009

main47324-12071iTE72..EUR198009-198305

main47324-12120iKE70,TE71..(DX,GL)..GEN198305-198406

main47324-12130iKE70,TE7#..(LB,SED)..SA198305-198502

main47324-13010iKE70..WG..EUG;KE70..DV..(EUR,GEN);KE70,TE71..WG..(GEN,SAA)197908-198309

sub47324-13030

main47324-13020iTE71..(DV,WG)..SA198204-198305

sub47324-13050

main47324-13030iKE70..WG..(SDN,SDZ)197908-198305

sub47324-13040

main47324-13040iKE70..(DV,WG)..(EUR,GEN)198305-198707

main47324-13050iAE71,KE70..(DV,WG)..SA198305-198707

47324TUBE, REAR BRAKE, NO.4

main47325-12010iKE70..LHD..5F..2D;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN);KE70197908-198308

sub47325-12070

main47325-12020iTE71..(CP,LB,SED)..(DX,GL,SE,SR,XE)..(GEN,SAA)197908-198308

sub47325-12120

main47325-12050iCE70,TE71..(DX,SR,XE)..EUG197908-198305

sub47325-12130

main47325-12060iTE71..GT;TE72..ARL197908-198009

sub47325-12080

main47325-12061iTE71..GT;TE72..ARL198009-198305

sub47325-12081

main47325-12070iKE70..SED..(SDN,SDZ)197908-198305

main47325-12080iTE72..SDN197908-198009

main47325-12081iTE72..EUR198009-198305

main47325-12120iTE71..GEN198305-198406

main47325-12130iKE70,TE7#..(LB,SED)..SA198305-198502

main47325-12160iKE70..SED..GEN198305-198406

main47325-13010iKE70..WG..EUG;KE70..DV..(EUR,GEN);KE70..WG..(GEN,SAA)197908-198309

sub47325-13040

main47325-13020iTE71..(DV,WG)..SA198204-198305

sub47325-13070

main47325-13030iTE71..WG..GEN197908-198305

sub47325-13060

main47325-13040iKE70..WG..(SDN,SDZ)197908-198305

sub47325-13050

main47325-13050iKE70..(DV,WG)..(EUR,GEN)198305-198707

main47325-13060iAE71..STD198309-198707

main47325-13070iCE70,TE71..DV,WG198305-198707

9046104030

main90461-04030

9046106056

main90461-06056

9046106118

main90461-06118

9046106139

main90461-06139

9046106966

main90461-06966

9046108563

main90461-08563

9046112163

main90461-12163

9048007002

main90480-07002

9161160825

main91611-60825

9161640612

main91616-40612

9165140614

main91651-40614

9165160640

main91651-60640

9622130705

main96221-30705

9699110080

main96991-10080

29 parts on this diagram · 5 diagrams in section
