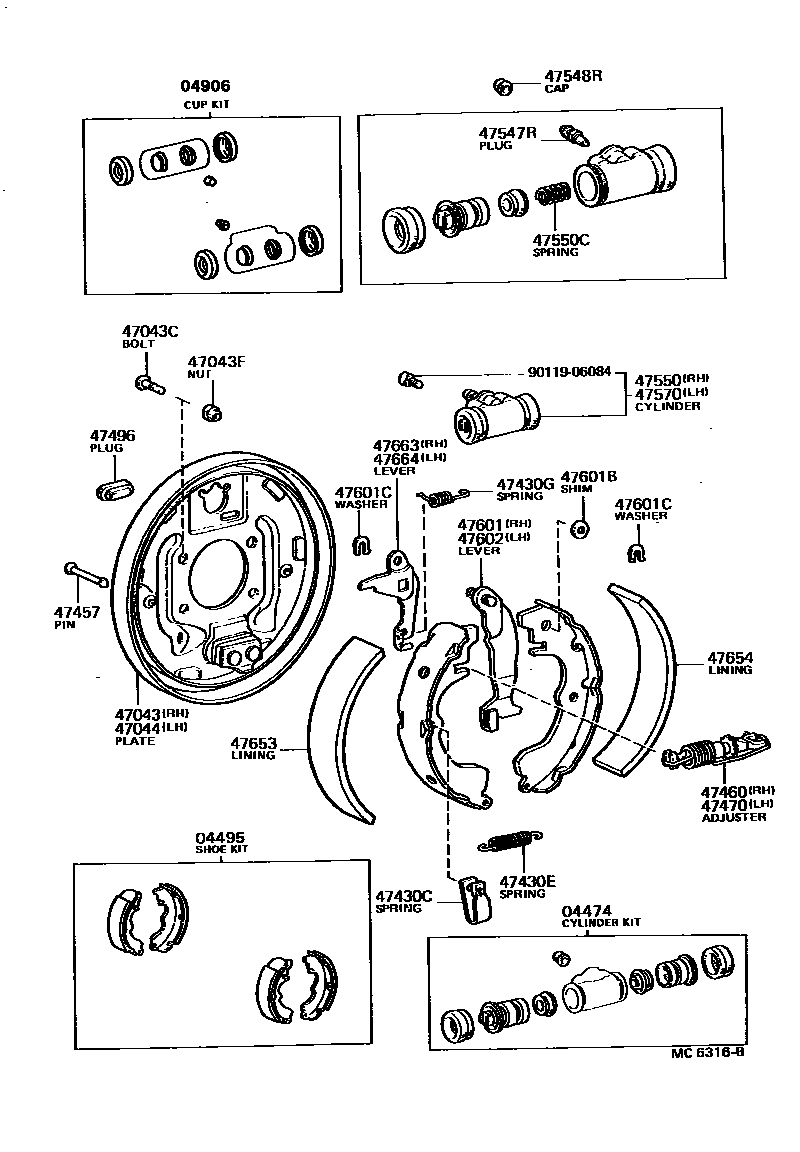

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-11030×2iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

main04474-11031×2iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197910-198110

main04474-11032×2iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SR,STD,XE)..(GEN,SAA)198110-198201

main04474-12020×2iTE71..(DX,GL,SR,STD,XE)..(GEN,SAA)198201-198406

04495SHOE KIT, REAR BRAKE

main04495-12010iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main04495-14010iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

04906CUP KIT, REAR WHEEL CYLINDER

main04906-11031iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197908-198110

WHEEL CYLINDER ID=20.64

main04906-12030iCE70,TE71..LHD..(DX,SR,XE)..EUG; TE71..GT197908-198305

WHEEL CYLINDER ID=19.05

main04906-12040iAE71,KE70,TE7#..SA198007-198707

WHEEL CYLINDER ID=20.64

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12030iKE70..EUR,GEN,SAA; TE71..(CP,LB,SED)..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198305

main47043-12040iAE71,KE70..2D..ARL198108-198406

main47043-13010iAE71,KE70..(DV,WG)..SA198406-198707

main47043-14011iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198502

main47043-20050iTE71..GT;TE72..ARL,EUR197908-198305

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iTE71..GT;TE71..DV,WG;TE72..ARL,EUR197908-198305

*10-1.25PX37-15

main42184-22020×8iKE70..DV..(EUR,GEN);KE70..(CP,LB,SED,WG)..(EUR,GEN,SA,SAA)197908-198707

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iCE70,KE70,TE7#197908-198305

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12030iAE71,KE70,TE71..EUR,GEN,SAA198305-198707

main47044-12040iTE71..WG..GEN197908-198305

main47044-13010iCE70,TE71..DV,WG198305-198707

main47044-14011iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198502

main47044-20050iTE71..GT;TE72..ARL,EUR197908-198305

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010×4iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198305

main90501-18017×4iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18299×2iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main90506-23346×2iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

main90506-12276×2iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010×4iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main47447-20030×4iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-12020iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main47061-14021iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-12020iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main47062-14021iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAE71,CE70,KE70,TE7#197908-198707

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iAE71,CE70,KE70,TE7#197908-198707

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAE71,CE70,KE70,TE7#197908-198707

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iAE71,KE70..SA; CE70198608-198707

ID=20.64

main47550-19115iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

ID=20.64

main47550-19116iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197910-198110

ID=20.64

main47550-19117iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SR,STD,XE)..(GEN,SAA)198110-198201

ID=20.64

main47550-19125iCE70,TE71..LHD..(DX,SR,XE)..EUG; TE71..GT;TE72..ARL,EUR197908-198305

ID=19.05

main47550-19135iCE70,TE71..EUG197908-198608

ID=20.64

main47550-19165iAE71,KE70..ARL,EUR,GEN,SAA198201-198707

ID=20.64

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010×2iCE70,TE71..LHD..(DX,SR,XE)..EUG; TE71..GT;TE72..ARL,EUR197908-198305

WHEEL CYLINDER ID=19.05

main47509-12020×2iCE70,TE71..EUG197908-198707

WHEEL CYLINDER ID=20.64

main90501-07006×2iTE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197908-198406

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iAE71,KE70; CE70198608-198707

ID=20.64

main47550-19115iKE70;TE71..(DX,SE,SR,STD,XE)..GEN197908-197910

ID=20.64

main47550-19116iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SE,SR,STD,XE)..(GEN,SAA)197910-198110

ID=20.64

main47550-19117iKE70..ARL,EUR,GEN,SAA; TE71..(DX,SR,STD,XE)..(GEN,SAA)198110-198201

ID=20.64

main47550-19125iCE70,TE71..LHD..(DX,SR,XE)..EUG; TE71..GT;TE72..ARL,EUR197908-198305

ID=19.05

main47550-19135iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198608

ID=20.64

main47550-19165iTE71..(DX,GL,SR,STD,XE)..(GEN,SAA)198201-198406

ID=20.64

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

main47611-12011iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iAE71,CE70,KE70,TE7#197908-198707

T=0.3,T=0.3

main90564-08151×2iAE71,CE70,KE70,TE7#197908-198707

T=0.6,T=0.6

main90564-08152×2iAE71,CE70,KE70,TE7#197908-198707

T=0.9,T=0.9

main90564-08172×2iAE71,CE70,KE70,TE7#197908-198707

T=0.2,T=0.2

main90564-08173×2iAE71,CE70,KE70,TE7#197908-198707

T=0.4,T=0.4

main90564-08174×2iAE71,CE70,KE70,TE7#197908-198707

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iAE71,CE70,KE70,TE7#197908-198707

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

main47612-12011iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-12020×2iTE71..(DX,GL,SE,SR,STD,XE)..(GEN,SAA)197908-198406

main47655-14010×2iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-12020×2iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47655-14010×2iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-12011iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47643-20020iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198007-198707

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-12011iAE71,KE70..ARL,EUR,GEN,SAA197908-198707

main47644-20020iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
