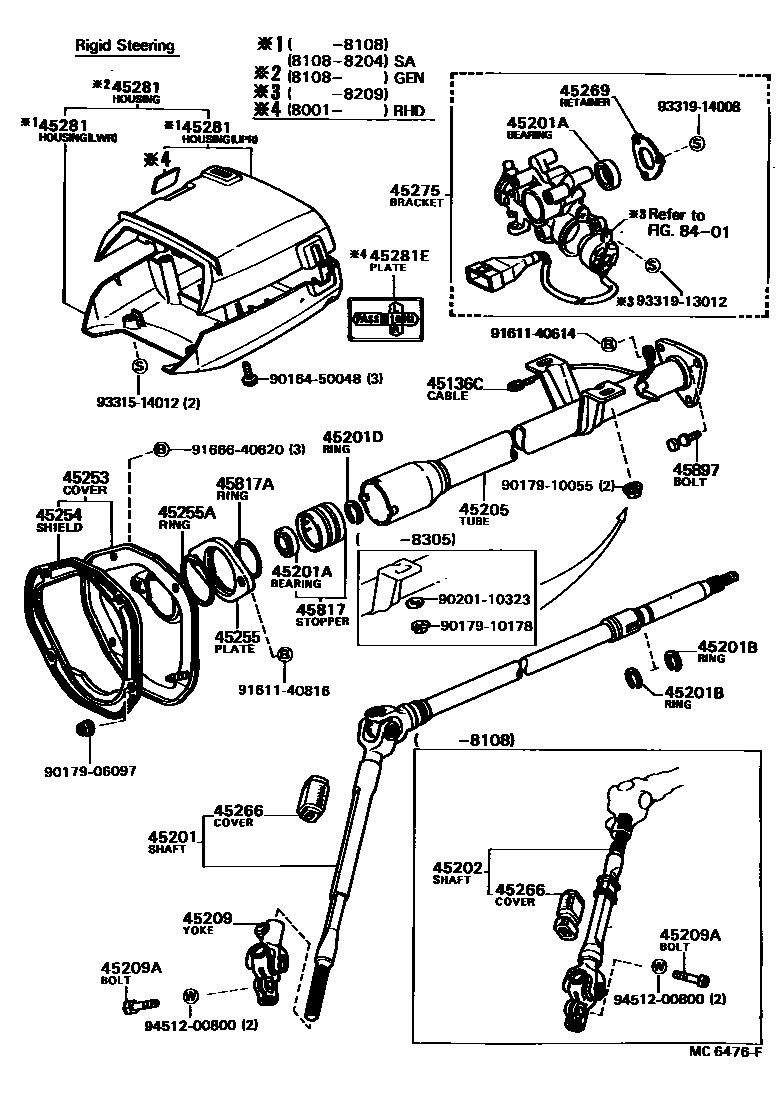

STEERING COLUMN & SHAFT

0001 1 0003 1 0008 1 0010 1 0013 1 0017 1 0021 1 0022 1 0023 1

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07129iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198707

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-12120iKE70..(DV,WG)..4F..GEN197908-198707

W/RIGID STEERING

main45210-12060iKE70..CP,LB,SED;KE70..(DV,WG)..EUR197908-198108

W/COLLAPSIBLE STEERING

main45210-12070iTE71;KE70..(DV,WG)..4F..(GEN,SA,SAA)198204-198707

W/COLLAPSIBLE STEERING

main45210-12080iKE70..SED..(GEN,SA)197908-198108

W/RIGID STEERING

main45210-12100iKE70..(CP,LB,SED)..RHD;KE70..(DV,WG)..RHD..(ARL,EUR)198108-198305

W/COLLAPSIBLE STEERING

main45210-12101iKE70..SED..GEN198305-198406

W/COLLAPSIBLE STEERING

main45210-12140iKE70..SED..RHD..GEN198204-198305

W/RIGID STEERING

main45210-12141iKE70..SED..GEN198305-198406

W/RIGID STEERING

main45210-12150iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)198108-198305

W/COLLAPSIBLE STEERING

main45210-12151iAE71..GEN198508-198707

W/COLLAPSIBLE STEERING

main45210-12160iKE70..SED..LHD..GEN198108-198305

W/RIGID STEERING

main45210-12180iCE70..RHD198210-198305

W/COLLAPSIBLE STEERING

main45210-22050iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

W/TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

UPR

main90363-18038iTE72..ARL,EUR198204-198305

UPR

main90363-28001iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

LWR

main90363-30007iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE71,CE70,KE70,TE7#197908-198707

T=1.20,T=1.2

main90520-17196×2iKE70,TE7#197908-198204

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198707

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45260-12010iKE70..WG..RHD..EUG;KE70..(CP,LB,SED)..RHD197908-198108

main45260-12020iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN197908-198108

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12090iKE70..(DV,WG)..GEN; TE7#..4D197908-198202

W/RIGID STEERING; W/RIGID STEERING,L=555.6

main45205-12091iTE7#..4D198202-198204

W/RIGID STEERING,L=529.7

main45205-12100iKE70..SED..(GEN,SA)197908-198108

W/RIGID STEERING

main45205-12200iKE70..SED..RHD..GEN198108-198406

W/RIGID STEERING

main45870-12070iAE71..ARL;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198707

W/COLLAPSIBLE STEERING(BALL)

main45870-12080iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

W/COLLAPSIBLE STEERING(BALL)

main45870-12090iCE70..RHD198501-198707

main45870-12100iTE7#..RHD..(ARL,GEN)198204-198406

W/COLLAPSIBLE STEERING(MESH)

main45870-12110iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

W/TILT STEERING

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14030iKE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)198108-198305

main45209-32010iKE70..SED..GEN198305-198406

45209ABOLT, HEXAGON(FOR STEERING SLIDING YOKE SET)

main90101-08047×2iKE70..CP,LB,SED;KE70..(DV,WG)..EUR197908-198108

main90101-08070×2iKE70..SED..GEN198305-198406

45253COVER, STEERING COLUMN HOLE

main45025-12030iKE70..(DV,WG)..RHD..4F..(GEN,SA)198202-198707

W/COLLAPSIBLE STEERING

main45025-12040iCE70..RHD198210-198305

W/COLLAPSIBLE STEERING

main45025-12050iKE70..(CP,LB,SED)..RHD;KE70..(DV,WG)..RHD..(ARL,EUR)197908-198707

main45025-12060iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)197908-198208

main45025-12070iTE71..LHD..4D..GEN198202-198305

W/RIGID STEERING

main45025-12080iCE70,TE7#..LHD; KE70..(DV,WG)..LHD..(GEN,SAA)198202-198707

W/COLLAPSIBLE STEERING

main45025-12100iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)198208-198707

45254SHIELD, STEERING COLUMN HOLE

main45254-12020iCE70,TE7#..RHD; KE70..(DV,WG)..RHD..4F..(GEN,SA)197908-198707

main45254-12030iAE71,KE70..WG..5F..(GEN,SA)198403-198707

main45254-12040iCE70,TE7#..LHD; KE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

main45254-12050iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)197908-198208

main45254-12060iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)198208-198707

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iCE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)197908-198707

main45255-12030iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198707

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iCE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)197908-198707

main90301-60122iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198707

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12010iKE70..CP,LB,SED;KE70..(DV,WG)..EUR197908-198108

main45266-12020iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)198108-198707

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iCE70,KE70..RHD;TE71..LB..RHD..5F;TE71..(CP,DV,SED,WG)..RHD; TE71..LHD..(GEN,SAA);KE70..(CP,LB)..LHD..GEN;KE70..LHD..4D..DX..(GEN,SAA);KE70..LHD..(GL,STD,XL)..(GEN,SAA); TE72..ARL198209-198305

main45269-35010iKE70,TE71; TE72..ARL,EUR198204-198209

45275BRACKET, STEERING COLUMN, UPPER

main45020-12130iKE70,TE7#..RHD197908-198204

main45020-12140iKE70,TE7#..LHD197908-198108

main45275-12090iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198410

IGNITION SWITCH=NEIMAN

main45280-12020iTE72..(GL,SE,XE)..(EUR,SA)198204-198209

main45280-12021iTE72..(4FC,5F)..(EUR,SA)198209-198404

main45280-12060iTE72..ARL198209-198305

main45280-12070iTE71..LHD..(GEN,SAA);KE70..(CP,LB)..LHD..GEN;KE70..LHD..4D..DX..(GEN,SAA);KE70..LHD..(GL,STD,XL)..(GEN,SAA)198209-198305

45281HOUSING, STEERING COLUMN

main45286-12100-01iKE70,TE7#..SA198108-198204

UPR,BLACK,BLACK,TRIM0#,2#

main45286-12100-04iKE70,TE7#..(DX,SE)..SA198108-198204

UPR,BLUE,BLUE,TRIM8#

main45286-12100-05iKE70,TE71..(SED,WG)..RHD..(DX,XL)..(GEN,SA)198001-198108

UPR,BEIGE,BEIGE,TRIM4#

main45286-12100-06iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN,SA)198001-198108

UPR,DARK BROWN,BROWN,TRIM4#

main45286-12120-01iKE70,TE7#..LHD197908-198108

UPR,BLACK,BLACK,TRIM0#,2#,4#,8#

main45286-12120-04iKE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL)197908-198108

UPR,BLUE,BLUE,TRIM8#

main45286-12120-05iKE70,TE71..(SED,WG)..LHD..(DX,XL)197908-198108

UPR,BEIGE,BEIGE,TRIM4#

main45286-12120-06iKE70,TE7#..(CP,LB)..LHD197908-198108

UPR,DARK BROWN,BROWN,TRIM4#

main45286-12130iKE70,TE71..RHD..EUG197908-198108

UPR,BLACK

main45286-12140-01iKE70,TE7#..RHD..(ARL,GEN)197908-198001

UPR,BLACK,BLACK,TRIM0#,2#,4#,8#

main45286-12140-04iKE70,TE7#..RHD..(DX,SE,SR,XE,XL)..(ARL,GEN)197908-198001

UPR,BLUE,BLUE,TRIM8#

main45286-12140-05iKE70,TE71..(SED,WG)..RHD..(DX,XL)..GEN197908-198001

UPR,BEIGE,BEIGE,TRIM4#

main45286-12140-06iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198001

UPR,DARK BROWN,BROWN,TRIM4#

main45286-12923-01iKE70,TE72..2D..ARL198108-198309

BLACK,BLACK,TRIM0#,2#

main45286-12923-02iAE71..STD198309-198406

MAROON,RED/MAROON,TRIM3#

main45286-12923-03iAE71..STD198309-198406

GRAY,GRAY,TRIM1#

main45286-12923-04iKE70,TE71..(LB,SED)..(DX,GL)..(GEN,SA)198305-198502

BLUE,BLUE,TRIM8#

main45286-12923-06iKE70,TE71..RHD..(DX,GL,SR,XE,XL)..GEN198108-198204

DARK BROWN,BROWN,TRIM4#

main45286-12923-16iKE70..RHD..GEN198408-198707

BROWN,BROWN,TRIM4#

main45286-12924-01iKE70,TE71..SAA198305-198308

BLACK,BLACK,TRIM0#,2#,4#,8#

main45286-12924-02iCE70,KE70..LHD..(EUR,GEN)198305-198408

MAROON,RED/MAROON,TRIM3#

main45286-12924-03iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

main45286-12924-04iKE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA)198108-198305

BLUE,BLUE,TRIM8#

main45286-12924-06iKE70,TE71..LHD..(DX,GL,GT,SR,XL)..(GEN,SAA)198108-198305

DARK BROWN,BROWN,TRIM4#

main45286-12924-16iAE71,CE70,KE70..LHD198408-198707

BROWN,BROWN,TRIM4#

main45286-12925-01iCE70,KE70,TE71..RHD..EUG198108-198305

BLACK,BLACK,TRIM0#,2#,4#,8#

main45286-12925-02iKE70..RHD..EUG198305-198408

MAROON,RED/MAROON,TRIM3#

main45286-12925-03iCE70,KE70..RHD..EUG198305-198707

GRAY,GRAY,TRIM1#

main45286-12925-04iCE70,KE70,TE71..RHD..EUG198108-198305

BLUE,BLUE,TRIM8#

main45286-12925-06iCE70,KE70,TE71..RHD..EUG198108-198305

DARK BROWN,BROWN,TRIM4#

main45286-12925-16iCE70,KE70..RHD..EUG198408-198707

BROWN,BROWN,TRIM4#

main45286-12926-01iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

BLACK,W/TICT STEERING,BLACK,TRIM0#,2#,4#,8#

main45286-12926-06iTE72..(GL,SE,XE)..(EUR,SA)198204-198404

DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

main45286-12927-01iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

BLACK,IGNITION SWITCH=NEIMAN,BLACK,TRIM0#,2#,4#,8#

main45286-12927-02iCE70,KE70..LHD..EUR198305-198410

MAROON,IGNITION SWITCH=NEIMAN,RED/MAROON,TRIM3#

main45286-12927-03iCE70,KE70..LHD..EUR198305-198410

GRAY,IGNITION SWITCH=NEIMAN,GRAY,TRIM1#

main45286-12927-04iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

BLUE,IGNITION SWITCH=NEIMAN,BLUE,TRIM8#

main45286-12927-06iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

D-BROWN,IGNITION SWITCH=NEIMAN,BROWN,TRIM4#

main45287-12080-01iKE70,TE7#..RHD..(ARL,GEN,SA)197908-198108

LWR,BLACK,BLACK,TRIM0#,2#,4#,8#

main45287-12080-04iKE70..4D..ARL198108-198305

LWR,BLUE,BLUE,TRIM8#

main45287-12080-06iAE71,KE70..4D..ARL198108-198410

LWR,DARK BROWN,BROWN,TRIM4#

main45287-12080-15iKE70,TE71..(SED,WG)..RHD..(DX,XL)..(GEN,SA)197908-198108

LWR,BEIGE,BEIGE,TRIM4#

main45287-12090-01iKE70,TE7#..LHD197908-198108

LWR,BLACK,BLACK,TRIM0#,2#,4#,8#

main45287-12090-04iKE70,TE7#..LHD..(DX,GT,SE,SR,XE,XL)197908-198108

LWR,BLUE,BLUE,TRIM8#

main45287-12090-05iKE70,TE71..(SED,WG)..LHD..(DX,XL)197908-198108

LWR,BEIGE,BEIGE,TRIM4#

main45287-12090-06iKE70,TE7#..(CP,LB)..LHD197908-198108

LWR,DARK BROWN,BROWN,TRIM4#

main45287-12100iKE70,TE71..RHD..EUG197908-198108

LWR,BLACK

45281EPLATE, SAFETY CAUTION

main45283-12010iAE71,KE70,TE7#..RHD..(ARL,GEN,SA)198001-198707

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)197908-198501

main45808-12030iAE71;KE70..EUR; KE70..5F..GEN198501-198707

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96710-02053iKE70..CP,LB,SED;KE70..(DV,WG)..EUR197908-198007

main96711-24053iAE71;KE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)198007-198707

45897BOLT, STEERING LOCK SET

main45897-12030iTE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA197908-198707

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016450048

main90164-50048

9017906097

main90179-06097

9017910055

main90179-10055

9017910178

main90179-10178

9020110323

main90201-10323

9161140614

main91611-40614

9161140816

main91611-40816

9166640620

main91666-40620

9331514012

main93315-14012

9331913012

main93319-13012

9331914008

main93319-14008

9451200800

main94512-00800

34 parts on this diagram · 9 diagrams in section
