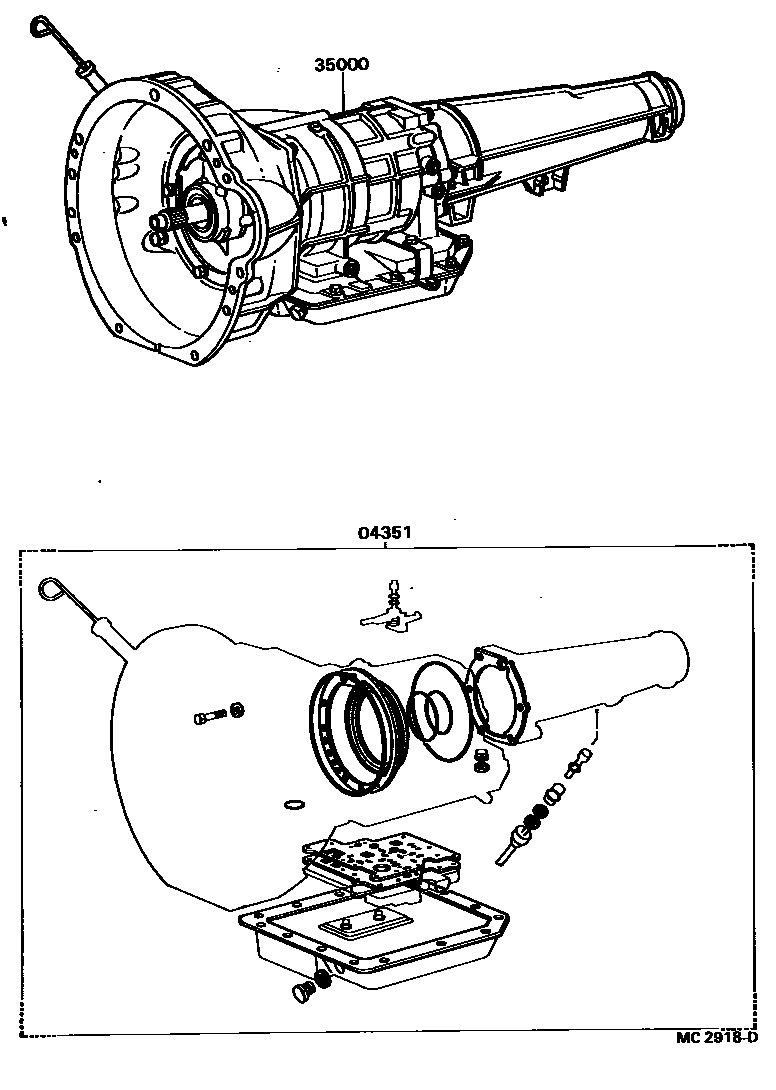

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1 0004 1

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-12011iKE70..2FC197908-198108

main04351-22020iTE71..3FC197908-197909

main04351-22021iTE7#..3FC..SA198108-198204

main04351-22023iAE71..3FC198305-198410

main04351-22032iTE72..4FC198204-198401

main04351-22050iAE71..GEN198508-198707

35000TRANSMISSION ASSY, AUTOMATIC

main35000-12481iTE72..SA198008-198011

SMG R=20:6

main35000-12482iTE72..SA198011-198204

SMG R=20:6

main35000-12490iKE70..2FC197908-198108

main35000-12520iTE71..3FC..(EUR,SA); TE71..3FC..GEN197908-198008

SMG R=21:6; SMG R=21:6,165SR13 TIRE

main35000-12521iTE71..3FC..(EUR,SA); TE71..3FC..GEN198008-198011

SMG R=21:6; SMG R=21:6,165SR13 TIRE

main35000-12522iTE71..3FC..(EUR,SA); TE71..3FC..GEN198011-198108

SMG R=21:6; SMG R=21:6,165SR13 TIRE

main35000-12530iTE72..SA198007-198008

SMG R=20:6

main35000-12560iTE71..3FC..GEN197908-198008

SMG R=22:6

main35000-12561iTE71..3FC..GEN198008-198011

SMG R=22:6

main35000-12562iTE71..3FC..GEN198011-198108

SMG R=22:6

main35000-12591iKE70..3FC..(EUR,GEN)198108-198305

main35000-12640iTE71..3FC198204-198305

DIFF R=4.100

main35000-12650iTE71..LHD..3FC..GEN198108-198305

DIFF R=3.909

main35000-12770iAE71..3FC198305-198707

SMG R=22:6

main35000-12780iKE70..3FC..GEN198305-198406

SMG R=21:6

main35000-12790iTE71..3FC198305-198401

SMG R=21:6

main35000-12800iTE72..4FC198305-198401

SMG R=20:6

2 parts on this diagram · 3 diagrams in section
