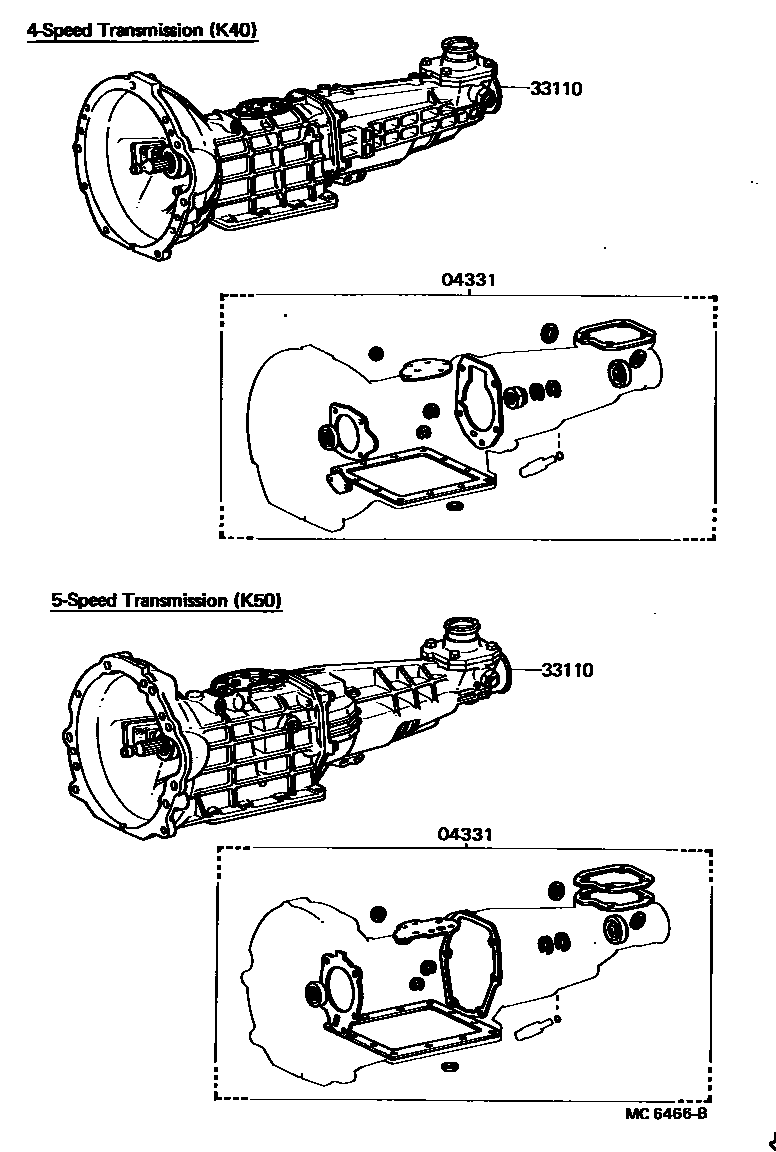

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1 0004 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-12060iKE70..4F197908-198707

main04331-12070iKE70..5F197908-198707

main04331-14030iAE71,TE7#..MTM198106-198707

main04331-20030iTE7#..MTM197908-198106

main04331-20050iCE70198508-198707

main04331-22030iCE70198210-198508

33110TRANSMISSION ASSY, MANUAL

main33030-12130iKE70..RHD..4F;KE70..(CP,DV,LB)..LHD..4F;KE70..(SED,WG)..LHD..4F..EUG;KE70..(SED,WG)..LHD..4F..GEN197908-198108

main33030-12131iKE70..4F..(EUR,GEN,SA)198305-198707

main33030-12150iKE70..LHD..5F..EUG;KE70..LHD..5F..GEN;KE70..RHD..5F..(EUR,GEN,SA)198212-198305

main33030-12151iKE70..DX..EUG;KE70..5F..(GEN,SA)198305-198707

main33030-12200iKE70..SDN197908-198108

main33030-12230iTE72..ARL197908-198008

main33030-12260iTE72..5F198008-198106

main33030-12390iCE70198305-198508

main33030-12400iCE70198210-198305

main33030-12430iKE70..SDZ198208-198212

main33030-12431iKE70..SDZ;KE70..5F..ARL198305-198707

main33030-12441iAE71..5F198305-198707

main33030-12480iAE71..STD198309-198406

main33030-12490iCE70198508-198707

main33030-14540iTE71..4F198106-198304

main33030-14541iTE71..SAA;TE71..(CP,DV,SED,WG)..4F198304-198405

main33030-14550iTE72..5F..(GL,SE,XE)..(EUR,SA)198204-198304

main33030-14551iTE71..5F198304-198502

main33030-14560iTE72..(DX,SE)..(ARL,EUR)198204-198305

main33030-14720iTE72..SDZ198208-198305

main33030-20441iTE71..4F197908-198008

main33030-20491iTE72..4F197908-198008

main33030-20501iTE72..5F..SDN197908-198008

main33030-20541iTE71..5F197908-198008

main33030-20770iTE71..4F198008-198106

main33030-20790iTE71..5F198008-198106

2 parts on this diagram · 4 diagrams in section
