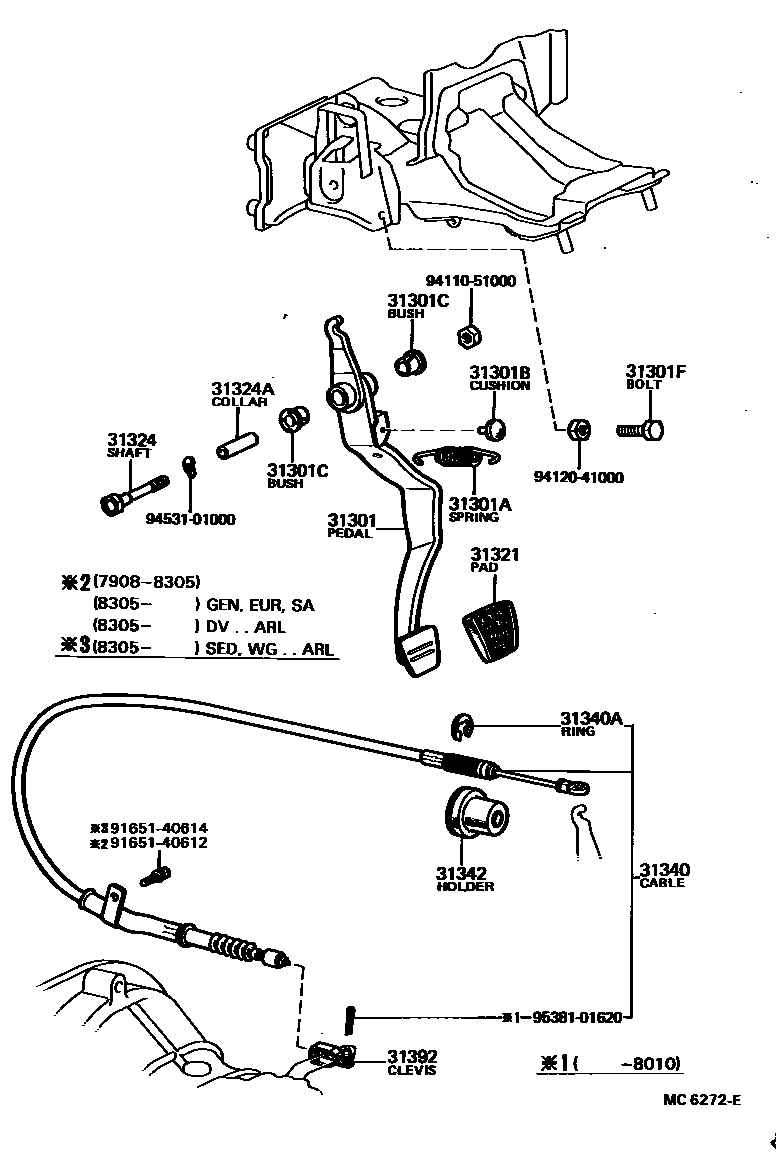

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12120iKE70..RHD..5F197908-198707

main31301-12130iKE70..LHD..MTM197908-198108

sub31301-12200

main31301-12140iTE71..MTM..SA197908-198204

sub31301-12190

main31301-12150iTE7#..LHD..MTM197908-198108

sub31301-12210

main31301-12160iKE70..(DV,WG)..RHD..GEN197908-198108

sub31301-12180

main31301-12180iKE70..(DV,WG)..RHD..4F..(GEN,SA)198108-198707

main31301-12190iCE70,TE7#..RHD..MTM198108-198707

main31301-12200iKE70..LHD..MTM198108-198707

main31301-12210iCE70,TE7#..LHD..MTM198108-198707

main31301-12260iAE71..MTM198305-198707

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31321PAD, CLUTCH PEDAL

main31321-12030iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31324SHAFT, CLUTCH PEDAL

main90101-10015iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

31340CABLE ASSY, CLUTCH RELEASE

main31340-19205iKE70..WG..5F..GEN197908-198707

main31340-19225iKE70..LHD..MTM197908-198707

main31340-19235iKE70..(DV,WG)..RHD..4F..(GEN,SA)197908-198707

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

31342HOLDER, CLUTCH CABLE, INNER

main31342-12902iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

31392CLEVIS, CLUTCH CABLE

main31392-10010iKE70..2D..ARL197908-198707

9165140612

main91651-40612

9165140614

main91651-40614

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

9538101620

main95381-01620

18 parts on this diagram · 6 diagrams in section
