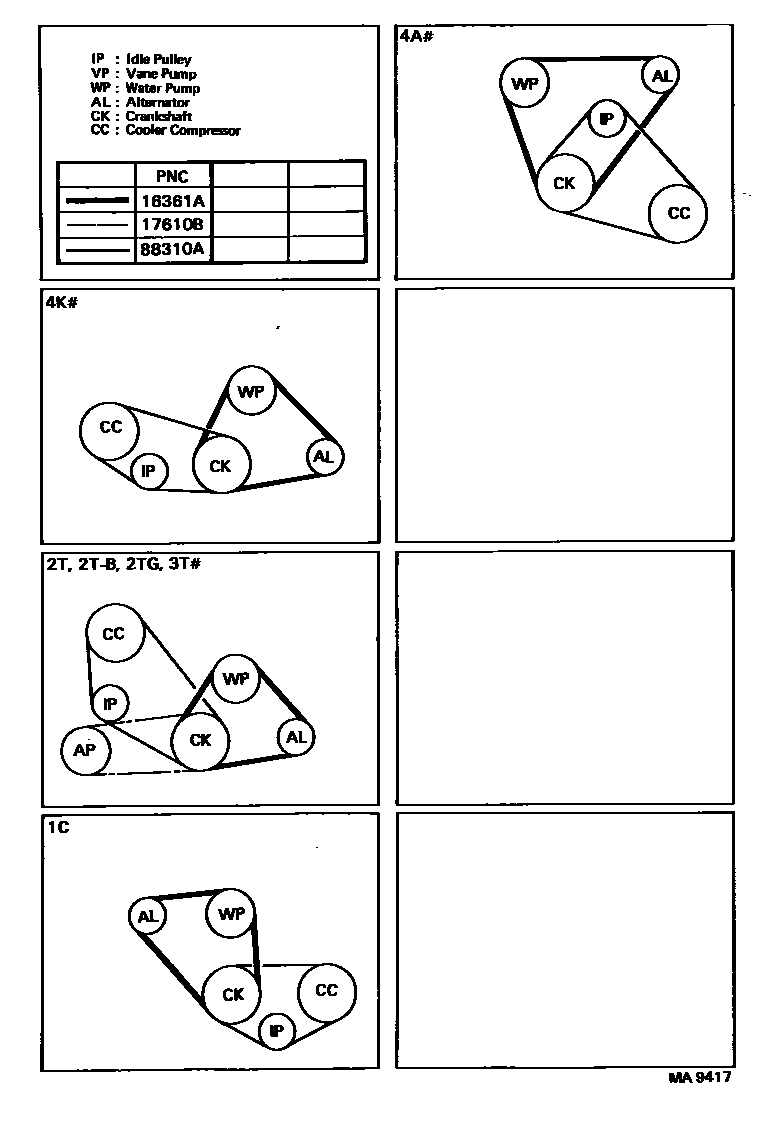

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02123i1C..CE70198210-198707

main99321-00840i4K..KE70..GEN197908-198108

W/COOLER,MITUBOSI

main99321-00850i2TG..TE71197908-198305

main99321-00870i4K#..KE70197908-198108

main99321-00885i2T,2TB..TE71..EUR,GEN197908-198012

main99321-50975i4A#..AE71198305-198707

main99331-10885i3TC..TE72197908-198209

main99521-10860i2T,2TB..TE71..SA198007-198012

17610BBELT, V(FOR AIR PUMP)

main99332-10815i3TC..TE72197908-198305

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99321-51000iAE71..GEN198508-198707

BANDO

main99322-00890iAE71198305-198410

main99322-00930iKE70..SED..GEN198308-198406

L=930

main99322-00940iKE70..ARL198305-198410

main99322-00950iTE71..GEN,SAA197908-198305

main99322-00970iTE72..ARL198108-198305

main99332-10860iAE71..GEN198508-198707

L=860,MITUBOSI

3 parts on this diagram · 1 diagram in section
