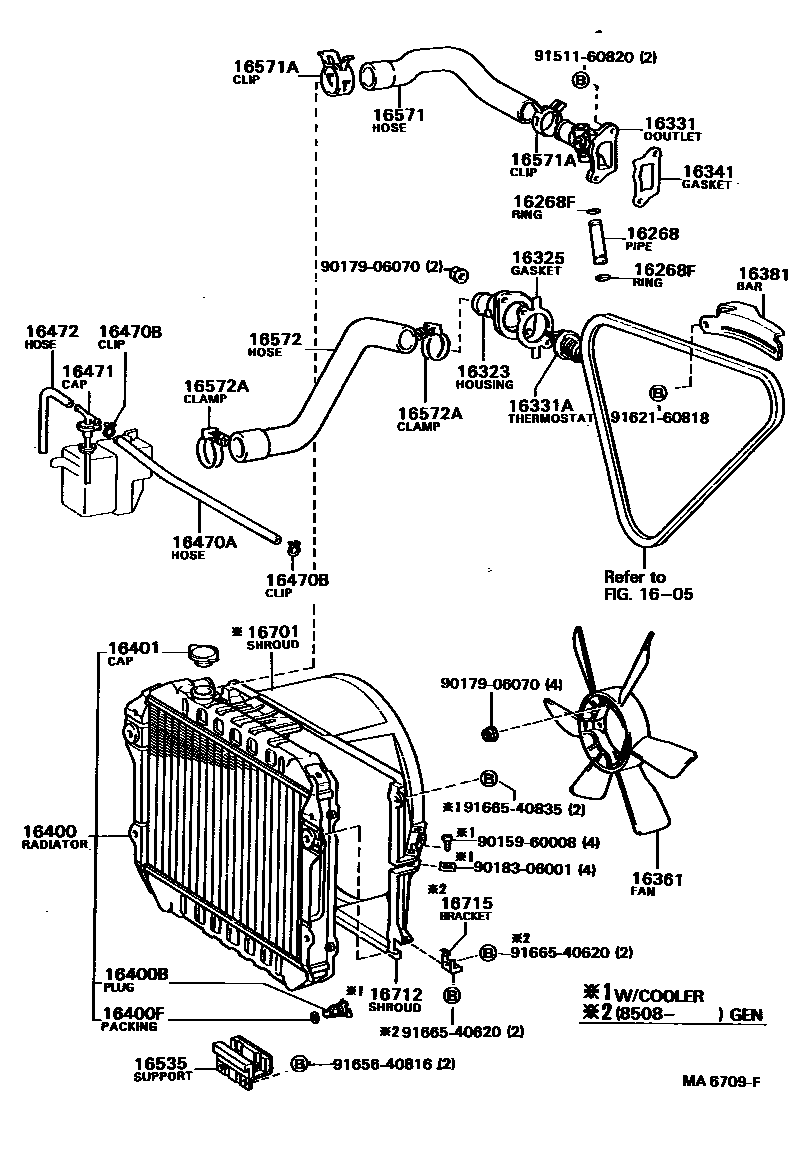

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1 0011 1 0013 1 0014 1 0015 1

1605

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i4A#..AE71198305-198503

sub16268-15011

main16268-15011i4A..AE71198503-198707

main16268-64010i1C..CE70198210-198508

sub16268-64020

main16268-64050i1C..CE70198508-198707

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i4A#..AE71198305-198707

16323HOUSING, WATER INLET

main16323-15020i4A#..AE71198305-198707

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1C..CE70198210-198707

sub16325-63011

main16325-70021i4A#..AE71198305-198707

16331OUTLET, WATER

main16331-13010i4K#..KE70..EUR197908-198108

sub16331-13011

main16331-13011i4K#..KE70..EUR198108-198707

main16331-15050i4A#..AE71198305-198707

main16331-22031i4K#..KE70..ARL,GEN,SA,SAA197908-198707

main16331-26050i2TG..TE71197908-198305

main16331-26060i2T,2TB,3T#..TE7#197908-198502

main16331-64010i1C..CE70198210-198707

16331ATHERMOSTAT

main90916-03020i4K#..KE70197908-197911

*WAX 82-95,*(F)

main90916-03034i4K..KE70..GEN,SA,SAA197908-198212

*WAX 82-95,*(F)

main90916-03036i2TG..TE71197908-198311

*WAX 88-100,*(F)

sub90916-03040

main90916-03036i2TG..TE71..EUG197908-198008

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i4K#..KE70197908-198212

*WAX 82-95,KUZEH

sub90916-03083

main90916-03038i4K#..KE70197908-197911

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i4K#..KE70..EUR197908-198410

*WAX 88-100,KUZEH

sub90916-03078

main90916-03046i1C..CE70198210-198707

*WAX 82-95,*WAX 82-95

main90916-03054i4K..KE70..RHD..(GEN,SA);4K..KE70..(CP,LB)..LHD..GEN;4K..KE70..LHD..4D..DX..(GEN,SAA);4K..KE70..LHD..(GL,STD,XL)..(GEN,SAA)198212-198707

*WAX 82-95

sub90916-03083

main90916-03055i4K#..KE70..EUR198212-198707

*WAX 88-100,*WAX 88-100

sub90916-03078

main90916-03055i2T..TE71..SAA;2TB,3T#..TE7#..4FC,5F;2T..TE71..LB..(3FC,5F);2T..TE71..CP,DV,SED,WG198212-198707

*WAX 88-100

sub90916-03078

16341GASKET, WATER OUTLET

main16341-13011i4K#..KE70197908-198707

sub16341-13040

main16341-15011i4A#..AE71198305-198707

sub16341-15012

main16341-38010i2T,2TB,3T#..TE7#197908-198201

sub16341-38012

main16341-38011i2T,2TB,3T#..TE7#198201-198502

sub16341-38012

main16341-64010i1C..CE70198210-198707

sub16341-64020

main16341-88260i2TG..TE71197908-198208

sub16341-88280

main16341-88280i2TG..TE71198208-198305

sub16341-88281

16361FAN

main16361-13050i4K..KE70..3FC..EUG198108-198305

main16361-13060i4KC..KE70..4D..ARL198205-198707

main16361-14010i4K#..KE70..MTM..EUR197908-198707

main16361-15010i4K..KE70..2FC..EUG197908-198108

main16361-16010i4A#..AE71198305-198707

main16361-24031i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SA,SAA)197908-198205

main16361-24041i4KC..KE70..ARL197908-198309

main16361-26020i2T,2TB..TE71..MTM..SA198007-198012

main16361-26030i2T..TE71..3FC..SA198007-198012

main16361-26040i2T#,3TC..TE7#..ARL,EUR,GEN197908-198502

main16361-31030i4K..KE70..GEN,SAA197908-198212

W/COOLER

sub16361-31031

main16361-38010i1C..CE70198210-198707

16381BAR, FAN BELT ADJUSTING

main16381-15030i4A#..AE71198305-198707

main16381-24011i4K#..KE70197908-198707

main16381-25010i2T#,3T#..TE7#197908-198502

main16381-64011i1C..CE70198210-198612

main16381-64040i1C..CE70198612-198707

16400RADIATOR ASSY

main16400-13080i4K..KE70..MTM..EUG197908-198001

sub16400-13081

main16400-13081i4K..KE70..MTM..EUG198001-198007

sub16400-13082

main16400-13082i4K#..KE70..MTM..EUR198007-198707

main16400-13090i4K..KE70..2FC..EUG197908-198001

sub16400-13091

main16400-13091i4K..KE70..2FC..EUG198001-198002

sub16400-13092

sub32941-12031

main16400-13092i4K..KE70..ATM..EUG198002-198305

main16400-13110i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SA)197908-198204

main16400-13120i4K..KE70..2FC..GEN197908-198108

sub16400-13170

main16400-13130i4KC..KE70197908-198001

sub16400-13131

main16400-13131i4K..KE70..LB..4F;4K..KE70..(CP,LB)..5F;4K..KE70..CP..LHD..4F198003-198108

W/HEAD LAMP CLEANER

main16400-13131i4KC..KE70198001-198108

main16400-13170i4K..KE70..LHD..2FC..GEN198011-198108

MIDDLE EAST SPEC

main16400-13180i4K..KE70..MTM..(GEN,SA)198205-198707

sub16400-13300

main16400-13190i4K..KE70..3FC..GEN198108-198406

main16400-13220i4KC..KE70..2D..ARL198108-198309

main16400-13300i4K..KE70..LHD..MTM..GEN198205-198707

MIDDLE EAST SPEC

sub16400-13190

main16400-13300i4K..KE70..LHD..GEN198305-198707

OMAN SPEC

sub16400-13190

main16400-13300i4K..KE70..SAA198205-198308

sub16400-13190

main16400-15100i4A#..AE71..MTM198305-198707

sub16400-15170

main16400-15170i4A..AE71..GEN198305-198707

main16400-26200i3TC..TE72..SDN;2T#..TE71..MTM..(EUR,GEN)197908-198406

sub16400-26360

main16400-26220i2T..TE71..3FC..(EUR,GEN)197908-198305

sub16400-26360

main16400-26300i2T..TE71..LHD..MTM..GEN198010-198305

MIDDLE EAST SPEC

sub16400-26360

main16400-26300i2T,3TC..TE7#..ARL,SAA197908-198305

sub16400-26360

main16400-26360i2T..TE71..LHD..3FC..GEN198108-198305

MIDDLE EAST SPEC

main16400-64010i1C..CE70198210-198305

main16400-64090i1C..CE70198404-198707

sub16400-64010

main16410-64080i1C..CE70198305-198404

sub16400-64090

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i1C..CE70197908-198707

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i2T#,3TC..TE7#..ARL,EUR,GEN,SAA197908-198110

sub96711-19007

main96711-19007i4A#..AE71198110-198707

16401CAP SUB-ASSY, RADIATOR

main16401-36011i2T#,3T#..TE7#197908-198707

16470TANK ASSY, RADIATOR RESERVE

main16470-26060i2TG,3TC..TE7#..LHD197908-198305

main16470-26060i2T,2TB..TE71..LHD..EUG198005-198108

W/HEAD LAMP CLEANER

main16470-26070i4K..KE70..LHD..EUG198003-198108

W/HEAD LAMP CLEANER

sub16470-26060

main16470-26070i4KC..KE70197908-198108

sub16470-26060

main16470-26090i1C..CE70..LHD198210-198707

COLD SPEC

main16470-26100i4K#..KE70..LHD..EUR198108-198707

W/HEAD LAMP CLEANER

sub16470-26090

main16470-26100i4KC..KE70..SDZ198305-198707

COLD SPEC

sub16470-26090

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33299i4KC..KE70198701-198707

L=1000(*H,L=350),COLD SPEC,NO.1

main90099-33299i4K#..KE70..LHD..EUR198604-198701

L=1000(*H,L=350),W/HEAD LAMP CLEANER

main90099-33299i4KC..KE70198701-198707

L=1000(*H,L=350),W/*HC,NO.1

main90099-33299i4KC..KE70198604

L=1000(*H,L=350),COLD SPEC

main90099-33534i1C..CE70198210-198707

L=1000

main90445-12001i4K..KE70..EUG198701-198707

L=600(*H,L=166),COLD SPEC

sub90445-12043

main90445-12001i4K..KE70..EUG198701-198707

L=600(*H,L=166),W/*HC,NO.2

sub90445-12043

main90445-12015i2T,2TB..TE71..LHD..EUG198005-198108

L=1300,W/HEAD LAMP CLEANER

main90445-12015i2TG,3TC..TE7#..LHD197908-198305

L=1300

main90445-12023i2T,2TB..TE71..EUG198008-198305

L=600(*H,L=380),L=380

sub90445-12078

main90445-12043i4K..KE70..RHD..EUG198008-198707

L=600(*H,L=360)

sub90445-12078

main90445-12073i3TC..TE72..ARL;2T,2TB,3T..TE7#197908-198502

L=420,L=420

sub90099-33370

main90445-12073i4KC..KE70..2D..ARL197908-198707

L=420

sub90099-33370

main90445-12090i4KC..KE70197908-197911

L=1300(*H,L=1200)

sub90445-12015

main90445-12095i4K..KE70..(DV,SED,WG)..LHD..EUG198003-198108

W/HEAD LAMP CLEANER

main90445-12095i4KC..KE70197911-198108

main90445-12351i4A..AE71..GEN198108-198707

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1C..CE70197908-198707

16471CAP SUB-ASSY, RESERVE TANK

main16471-34030i2TG,3TC..TE7#..LHD197908-198305

main16471-34030i4K..KE70..LHD..EUG198003-198108

W/HEAD LAMP CLEANER

main85339-12010i4K#..KE70..EUR,GEN,SA,SAA197908-198707

16472HOSE, BREATHER

main85338-12010i4K..KE70..EUR,SAA197908-198707

main85338-16010i4K..KE70..GEN,SA197908-198707

sub85338-12010

main85338-30010i4K#..KE70..LHD..EUR198108-198701

W/HEAD LAMP CLEANER

main85338-30010i4KC..KE70..SDZ198210-198701

COLD SPEC

main85338-70100i1C..CE70..LHD198609-198707

COLD SPEC

main85338-70100i4KC..KE70198701-198707

W/HEAD LAMP CLEANER

16535SUPPORT, RADIATOR, LOWER

main16533-26010i3TC..TE72..DX,SE;2T#..TE71..EUR,GEN,SAA197908-198707

main16533-26030i1C..CE70198210-198707

16571HOSE, RADIATOR, INLET

main16571-15020i4A#..AE71198305-198707

main16571-64020i1C..CE70198210-198707

main16572-13020i4K#..KE70..EUR197908-198707

main16572-13060i4K..KE70..GEN,SA197908-198204

main16572-13080i4KC..KE70..2D..ARL198108-198707

main16572-26020i2TG..TE71197908-198305

main90916-01166i2T,2TB,3T#..TE7#197908-198502

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i4A#..AE71198305-198508

sub90467-33003

main90467-34001i2TG..TE71197908-198305

WATER OUTLET SIDE

sub90467-33003

main90467-34002i4A..AE71198508-198601

sub90467-34003

main90467-34003i4A..AE71198601-198707

sub90467-34004

main90467-37001i4K#..KE70197908-198204

WATER OUTLET SIDE

sub90467-37003

main90467-37001i4K#..KE70198005-198707

sub90467-37003

main90467-37001i2TG..TE71198108-198305

RADIATOR SIDE

sub90467-37003

main96111-10430i4K..KE70..SA197908-198204

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-13040i4K#..KE70..EUR197908-198707

main16571-13070i4KC..KE70..2D..ARL197908-198707

main16571-26060i2T#,3T#..TE7#197908-198502

main16572-15080i4A#..AE71198305-198707

main16572-64020i1C..CE70198210-198707

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i2T#,3T#..TE7#197908-198502

RADIATOR SIDE

main90460-47036i4K#..KE70197908-198707

main90467-34002i4A..AE71198508-198601

sub90467-34003

main90467-34003i4A..AE71198601-198707

sub90467-34004

main90467-37001i1C..CE70198210-198707

sub90467-37003

main96111-10400i4A#..AE71198305-198508

main96111-10500i2T#,3T#..TE7#197908-198502

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-12030i4K..KE70..LHD..4D..DX..GEN;4K..KE70..(CP,LB)..LHD..GEN;4K..KE70..LHD..(GL,STD,XL)..GEN198205-198707

W/COOLER

main16711-12030i4K..KE70..SAA198302-198502

main16711-12030i4K..KE70..RHD..GEN198302-198707

MIDDLE EAST SPEC,W/COOLER

main16711-12030i4K..KE70..LHD..GEN198305-198707

OMAN SPEC,W/COOLER

main16711-12040i4AC..AE71198305-198707

W/COOLER

main16711-13050i4K..KE70..2FC..EUG197908-198108

main16711-13080i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SA,SAA)197908-198305

main16711-13090i4K..KE70..2FC..GEN197908-198309

main16711-13090i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SAA)197908-198205

W/COOLER

main16711-13100i4K#..KE70..EUR197908-198707

main16711-13101i4K#..KE70..MTM..EUR198108-198305

main16711-13160i4K..KE70..3FC..EUG198108-198305

main16711-27031i2T#,3TC..TE7#..ARL,GEN,SAA197908-198406

W/COOLER

main16711-64020i1C..CE70198210-198707

16712SHROUD, FAN, NO.2

main16712-12010i4K..KE70..LHD..4D..DX..GEN;4K..KE70..(CP,LB)..LHD..GEN;4K..KE70..LHD..(GL,STD,XL)..GEN198205-198707

W/COOLER

main16712-12010i4K..KE70..LHD..GEN198305-198707

OMAN SPEC,W/COOLER

main16712-12010i4K..KE70..SAA198302-198502

main16712-12010i4K..KE70..RHD..GEN198302-198707

MIDDLE EAST SPEC,W/COOLER

main16712-12020i4AC..AE71198305-198707

W/COOLER

main16712-13010i4K..KE70..RHD..MTM..(GEN,SA);4K..KE70..SED..LHD..MTM..4D..GEN;4K..KE70..(CP,DV,LB,WG)..LHD..GEN197908-198305

main16712-13020i4K..KE70..2FC..GEN197908-198309

main16712-13020i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SAA)197908-198205

W/COOLER

main16712-27031i2T#,3TC..TE7#..ARL,GEN,SAA197908-198406

W/COOLER

main16712-64010i1C..CE70198210-198707

16715BRACKET, FAN SHROUD

main16715-28010i4A..AE71..GEN198508-198707

W/COOLER

main16715-28010i1C..CE70198210-198707

9015960008

main90159-60008

9017906070

main90179-06070

9018306001

main90183-06001

9151160820

main91511-60820

9162160818

main91621-60818

9165640816

main91656-40816

9166540620

main91665-40620

9166540835

main91665-40835

35 parts on this diagram · 11 diagrams in section
