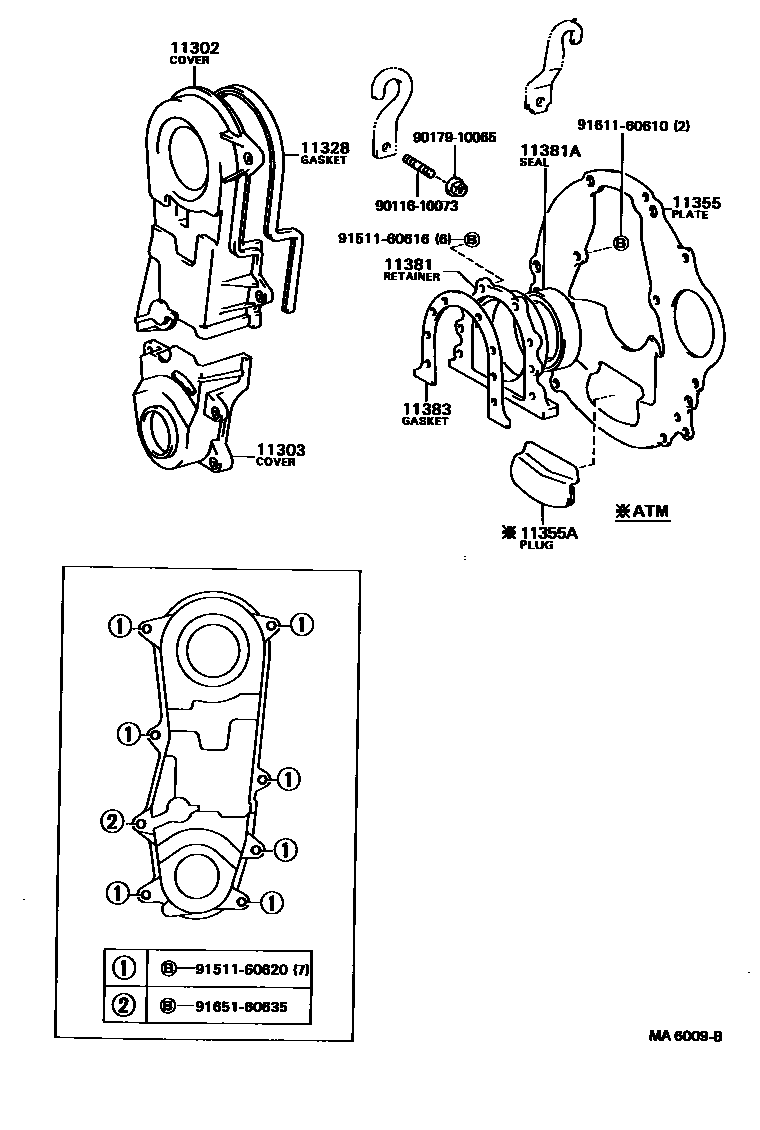

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15020i4A#..AE71198305-198707

main11321-13030i4K#..KE70197908-198108

main11321-13040i4K#..KE70198108-198303

main11321-13041i4KC..KE70;4K..KE70..RHD;4K..KE70..SED..LHD..4F..4D;4K..KE70..SED..4F..2D..EUG;4K..KE70..(CP,DV,LB,WG)..LHD;4K..KE70..SED..LHD..(3FC,5F)198303-198509

main11321-13042i4K#..KE70198509-198707

main11321-25010i2T,2TB..TE71..SA198007-198012

main11321-28010i2T,2TB,3T#..TE7#198012-198502

main11321-88220i2TG..TE71197908-198004

main11321-88221i2TG..TE71198004-198305

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15020i4A#..AE71198305-198707

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13010i4K#..KE70197908-198105

main11328-13011i4K#..KE70198105-198707

main11328-15020i4A#..AE71198305-198707

main11328-25011i2T,2TB,3T#..TE7#197908-198201

main11328-25012i2T,2TB,3T#..TE7#198201-198502

main11328-88220i2TG..TE71197908-198305

11355PLATE, REAR END

main11305-13010i4K..KE70..MTM..EUG197908-198503

main11355-13010i4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM197908-198102

main11355-13011i4KC..KE70..MTM;4K..KE70..5F..(GEN,SA);4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..4F..(GEN,SA,SAA)198102-198503

main11355-13012i4KC..KE70;4K..KE70..GEN,SA198503-198707

main11355-15021i4A#..AE71..MTM198305-198707

main11355-15031i4A..AE71..GEN198508-198707

main11355-24041i4K..KE70..2FC197908-198102

main11355-24042i4K..KE70..ATM198102-198503

main11355-24043i4K..KE70..EUG198503-198707

main11355-25011i2T#..TE71..MTM; 3TC..TE72..ARL197908-198008

main11355-25012i2T#,3T#..TE7#..MTM198008-198502

main11355-25022i2T,3T..TE7#..3FC197908-198008

main11355-25023i2T,3T..TE7#..ATM198008-198401

main11355-26020i3TC..TE72..SDN197908-198008

main11355-64010i1C..CE70198210-198505

main11355-64011i1C..CE70198505-198707

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01160i2T,3T..TE7#..ATM197908-198401

main90950-01215i4K..KE70..2FC197908-198102

main90950-01264i4AC..AE71..3FC198305-198410

main90950-01343i4K..KE70..ATM198102-198503

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13010i4K#..KE70197908-198303

main11381-13011i4KC..KE70;4K..KE70..RHD;4K..KE70..SED..LHD..4F..4D;4K..KE70..SED..4F..2D..EUG;4K..KE70..(CP,DV,LB,WG)..LHD;4K..KE70..SED..LHD..(3FC,5F)198303-198707

main11381-15010i4A#..AE71198305-198707

main11381-25010i2T#,3T#..TE7#197908-198502

main11381-64010i1C..CE70198210-198310

main11381-64011i1C..CE70198310-198505

main11381-64012i1C..CE70198505-198707

11381ASEAL, ENGINE REAR OIL

main90311-70001i4K#..KE70197908-198205

HTC 70 92 12

main90311-70004i4A#..AE71; 4K#..KE70198205-198707

HTC 70 92 8.5

main90311-75113i2T#,3T#..TE7#197908-198502

HTC 75 100 13

main90311-90002i1C..CE70198210-198505

main90311-90003i1C..CE70198505-198707

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i4K#..KE70197908-198707

main11383-15010i4A#..AE71198305-198707

main11383-25010i2T#,3T#..TE7#197908-198502

main11383-64010i1C..CE70198210-198310

9011610073

main90116-10073

9017910065

main90179-10065

9151160616

main91511-60616

9151160620

main91511-60620

9161160610

main91611-60610

9165160635

main91651-60635

14 parts on this diagram · 5 diagrams in section
