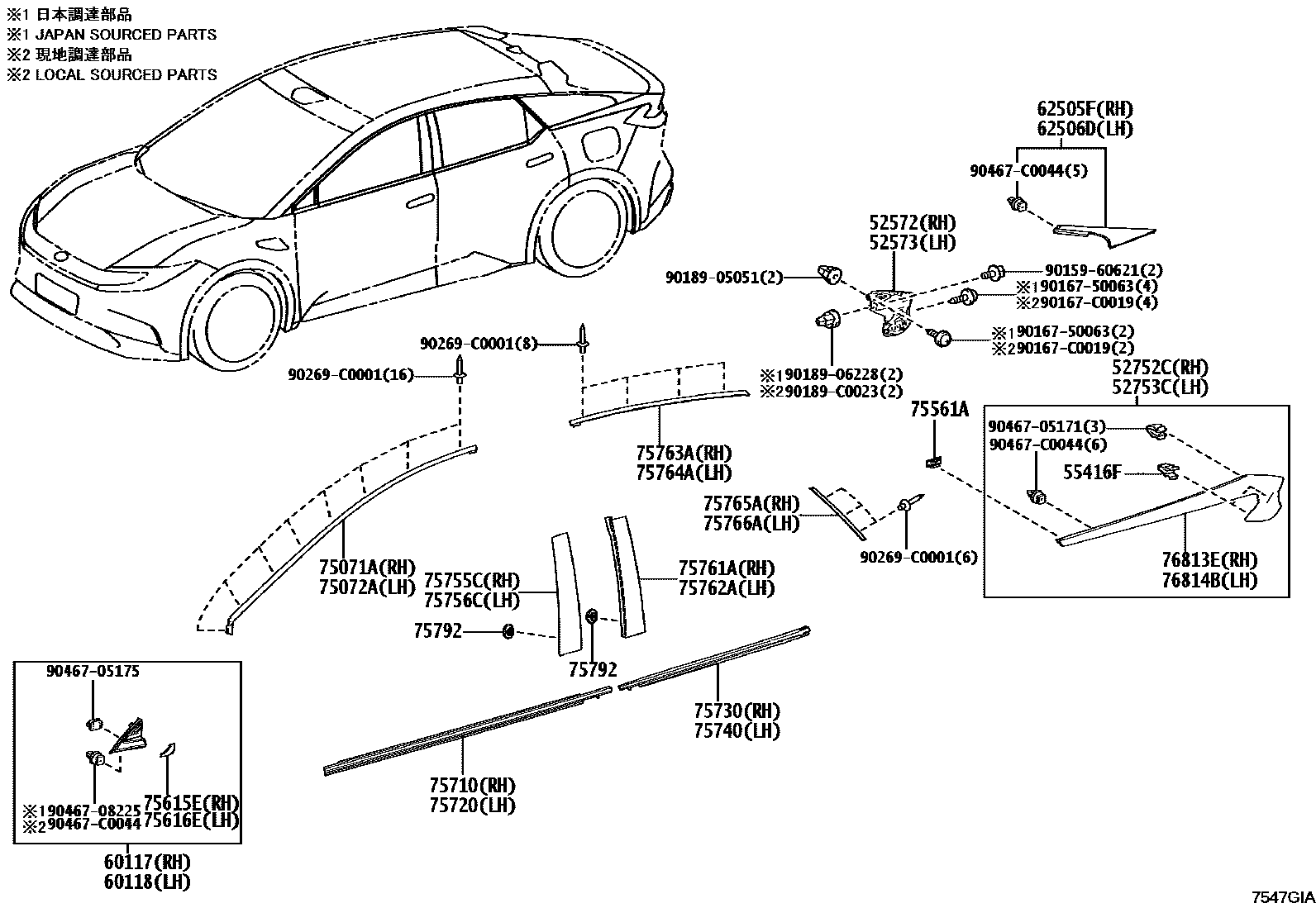

SIDE MOULDING
52572BRACKET, UPPER RETAINER BUMPER, NO.1
52573BRACKET, UPPER RETAINER BUMPER, NO.2
52752CMOULDING, REAR BUMPER SIDE, RH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
52753CMOULDING, REAR BUMPER SIDE, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
55416FRETAINER, INSTRUMENT CLUSTER FINISH PANEL
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
62505FMOULDING SUB-ASSY, QUARTER TRIM, RH
62506DMOULDING SUB-ASSY, QUARTER TRIM, LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75615EMOULDING, FRONT FENDER, OUTSIDE UPPER RH
75616EMOULDING, FRONT FENDER, OUTSIDE UPPER LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
76813EMOULDING, BACK DOOR OUTSIDE GARNISH, RH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
76814BMOULDING, BACK DOOR OUTSIDE GARNISH, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
9015960621
main90159-60621
9016750063
main90167-50063
90167C0019
main90167-C0019
9018905051
main90189-05051
9018906228
main90189-06228
90189C0023
main90189-C0023
90269C0001
main90269-C0001
9046705171
main90467-05171
9046705175
main90467-05175
9046708225
main90467-08225
90467C0044
main90467-C0044
40 parts on this diagram · 2 diagrams in section
