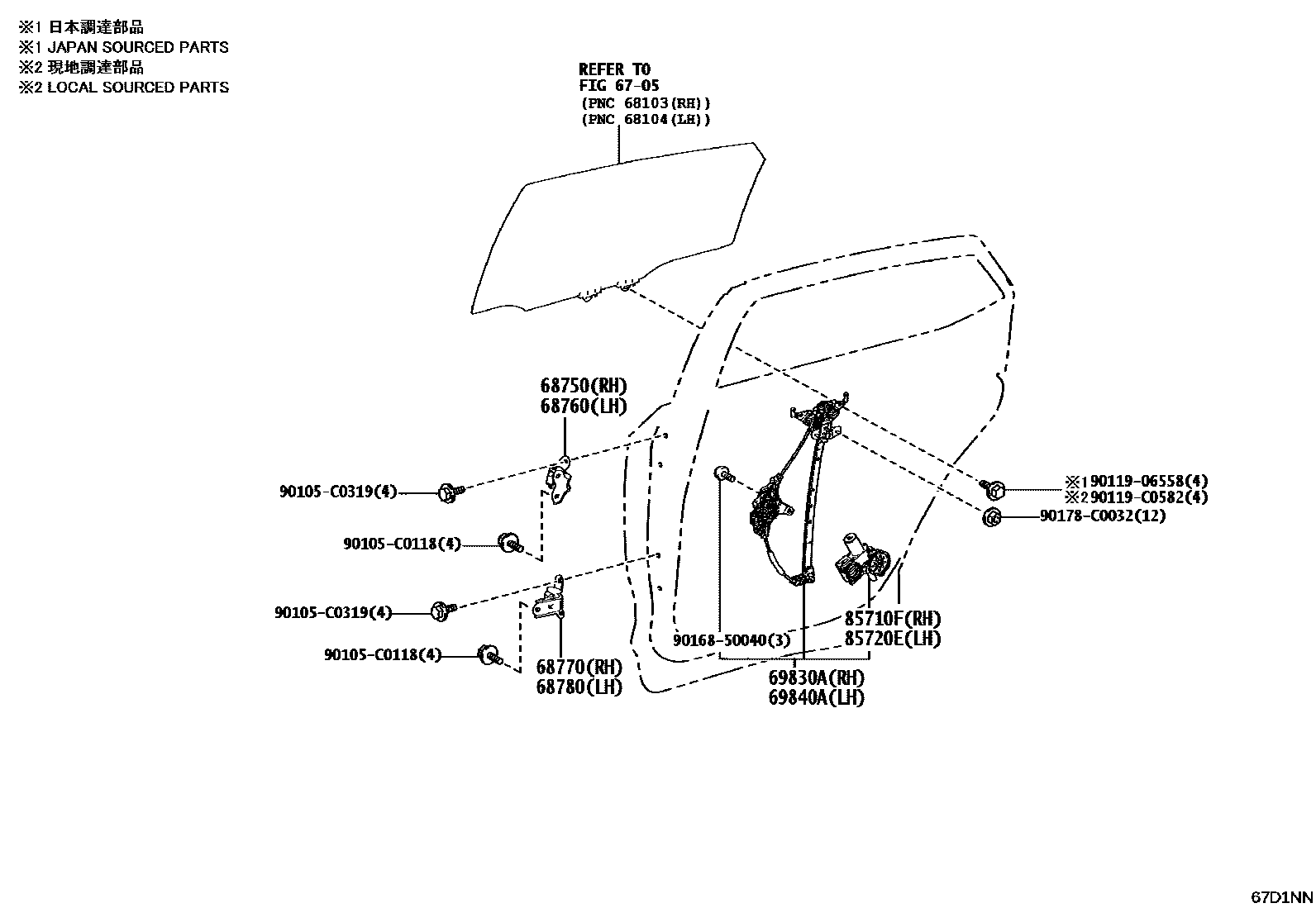

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iBEAG11202412

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iBEAG11202412

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-07020iBEAG11202412

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-07020iBEAG11202412

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-03040iBEAG11202412

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-03040iBEAG11202412

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-03060iBEAG11202412

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-03060iBEAG11202412

90105C0118

main90105-C0118

90105C0319

main90105-C0319

9011906558

main90119-06558

90119C0582

main90119-C0582

9016850040

main90168-50040

90178C0032

main90178-C0032

15 parts on this diagram · 1 diagram in section
