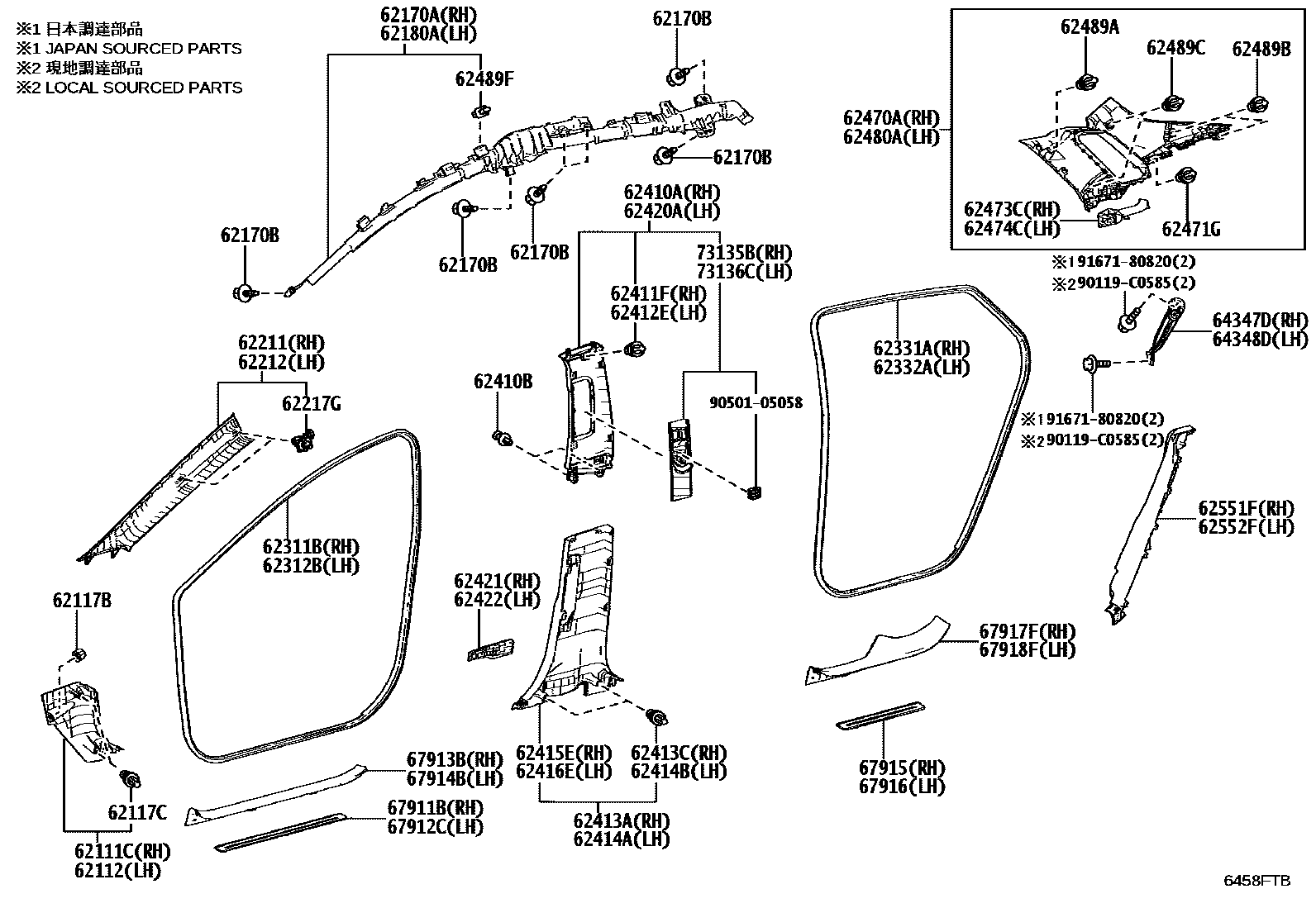

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-03060-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

main62111-03070-C0supersedes 62111-03060-C0iBEAG11..F,G,L202412

ADVANCED PACKAGE,BLACK,TRIM0#,2#,3#

62112BOARD, COWL SIDE TRIM, LH

main62112-03050-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iBEAG11202412

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0035×4iBEAG11202412

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-03030iBEAG11202412

62170BBOLT, W/WASHER

main90119-C0107×12iBEAG11202412

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-03030iBEAG11202412

62211GARNISH, FRONT PILLAR, RH

main62210-03030-B0iBEAG11..G,L; BEAG11..N202412

LT. GRAY,TRIM0#,2#,3#; LT. GRAY,TRIM2#

main62210-03040-B0iBEAG11..F202412

LT.GRAY,TRIM0#,2#,3#

62212GARNISH, FRONT PILLAR, LH

main62220-03030-B0iBEAG11..G,L; BEAG11..N202412

LT. GRAY,TRIM0#,2#,3#; LT. GRAY,TRIM2#

main62220-03040-B0iBEAG11..F202412

LT.GRAY,TRIM0#,2#,3#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iBEAG11202412

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-03030iBEAG11202412

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-03030iBEAG11202412

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-03020iBEAG11202412

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-03020iBEAG11202412

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-03020-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62410BCLIP

main90467-C0046×4iBEAG11202412

62411FCLIP, CENTER PILLAR GARNISH, RH

main90467-C0035iBEAG11202412

62412ECLIP, CENTER PILLAR GARNISH, LH

main90467-C0035iBEAG11202412

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-03040-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×2iBEAG11202412

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-03040-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×2iBEAG11202412

62415EPANEL, CENTER PILLAR GARNISH, RH

main62415-03030-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62416EPANEL, CENTER PILLAR GARNISH, LH

main62416-03030-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-03020-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62421COVER, CENTER PILLAR GARNISH, RH

main62421-03020-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62422COVER, CENTER PILLAR GARNISH, LH

main62422-03010-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-03040-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main62217-13010×2iBEAG11202412

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-03010-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-03010-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-03040-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-C0034×2iBEAG11202412

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-C0035×4iBEAG11202412

62489CCLIP, ROOF SIDE INNER GARNISH

main90467-C0036×4iBEAG11202412

62489FCLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iBEAG11202412

62551FGARNISH, REAR SEAT SIDE, RH

main62551-03030-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-03370-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

64347DBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-03020iBEAG11202412

64348DBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-03020iBEAG11202412

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-03010-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67912CPLATE, FRONT DOOR SCUFF OUTSIDE, LH

main67912-03010-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-03030-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-03020-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-03010-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-03010-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-03030-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-03020-C0iBEAG11..F,G,L; BEAG11..N202412

BLACK,TRIM0#,2#,3#; BLACK,TRIM2#

73135BCOVER, SHOULDER BELT ANCHOR, RH

main73023-02160-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

73136CCOVER, SHOULDER BELT ANCHOR, LH

main73024-02160-B0iBEAG11..F,G,L; BEAG11..N202412

LT.GRAY,TRIM0#,2#,3#; LT.GRAY,TRIM2#

90119C0585

main90119-C0585

9050105058

main90501-05058

9167180820

main91671-80820

53 parts on this diagram · 1 diagram in section
