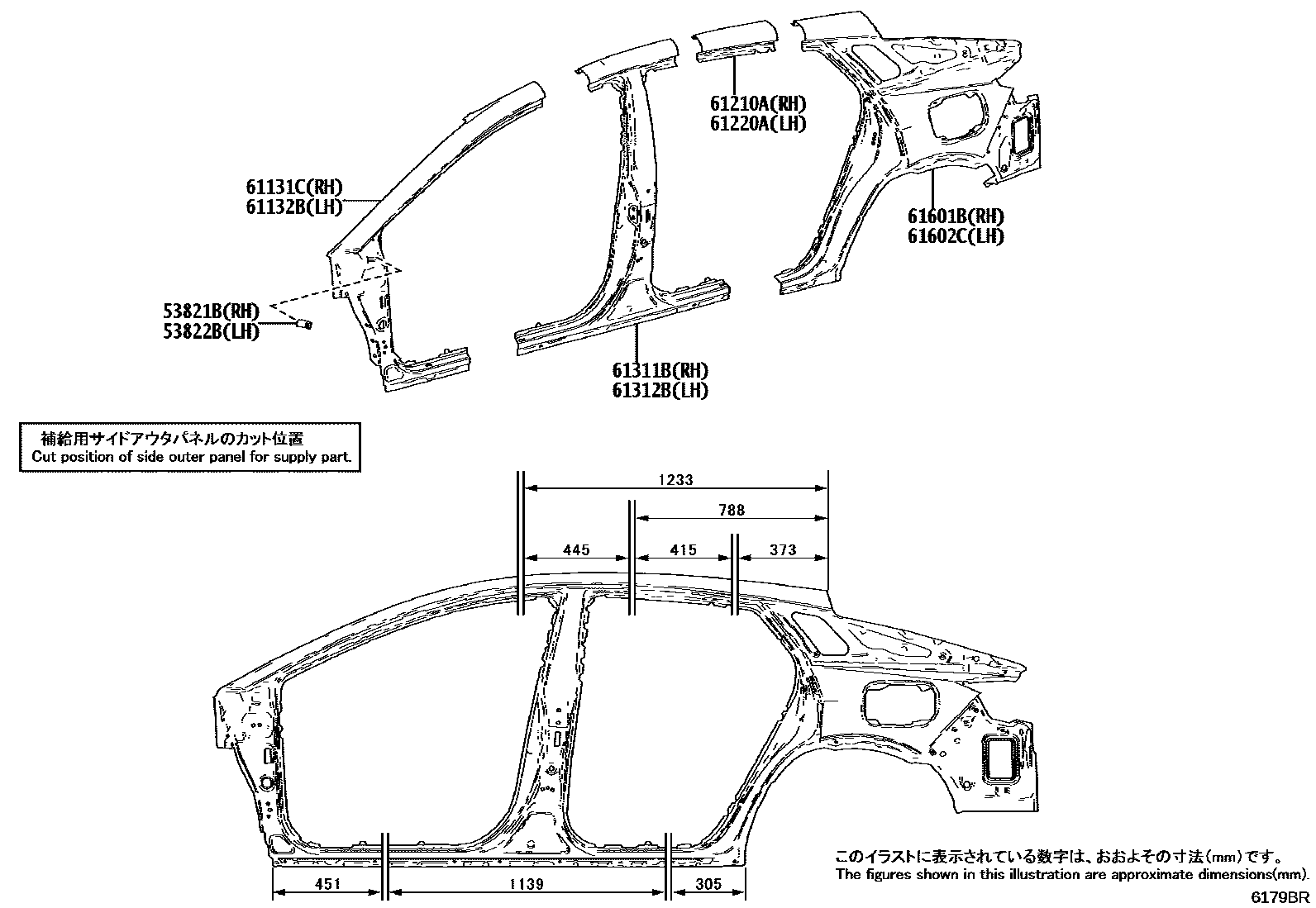

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-03010×2iBEAG11202412

53822BBRACKET, FRONT FENDER, REAR LH

main53821-03010×2iBEAG11202412

61131CPILLAR, FRONT BODY, OUTER RH

main61131-03060iBEAG11202412

61132BPILLAR, FRONT BODY, OUTER LH

main61132-03060iBEAG11202412

61210ARAIL ASSY, ROOF SIDE, RH

main61210-03020iBEAG11202412

61220ARAIL ASSY, ROOF SIDE, LH

main61220-03020iBEAG11202412

61311BPILLAR, CENTER BODY, OUTER RH

main61311-03040iBEAG11202412

61312BPILLAR, CENTER BODY, OUTER LH

main61312-03040iBEAG11202412

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-03080iBEAG11202412

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-03100iBEAG11202412

10 parts on this diagram · 3 diagrams in section
