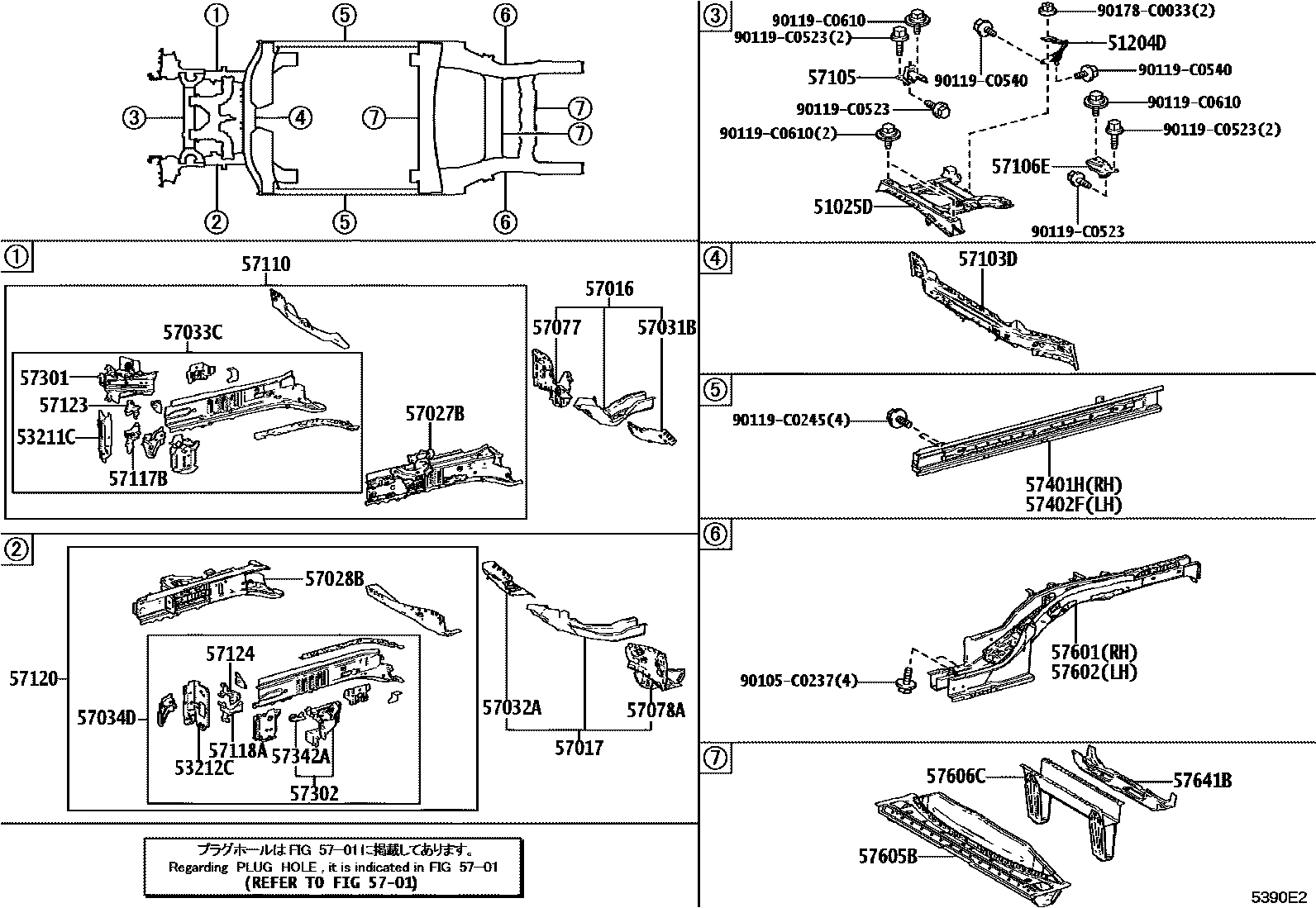

FLOOR SIDE MEMBER

51025DBRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER

main51025-03011iBEAG11202412

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-03010iBEAG11202412

53211CSUPPORT, RADIATOR, RH

main53211-0R080iBEAG11202412

53212CSUPPORT, RADIATOR, LH

main53212-0R070iBEAG11202412

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57017-03011iBEAG11202412

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57018-03011iBEAG11202412

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-03011iBEAG11202412

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-03010iBEAG11202412

57031BBRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH

main57031-03011iBEAG11202412

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-03011iBEAG11202412

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-03011iBEAG11202412

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-03011iBEAG11202412

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-03010iBEAG11202412

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-03010iBEAG11202412

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-03010iBEAG11202412

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-03011iBEAG11202412

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-03011iBEAG11202412

57110MEMBER ASSY, FRONT SIDE, RH

main57110-03011iBEAG11202412

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-03010iBEAG11202412

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-03010iBEAG11202412

57120MEMBER ASSY, FRONT SIDE, LH

main57120-03011iBEAG11202412

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-03010iBEAG11202412

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-03010iBEAG11202412

57301OUTRIGGER SUB-ASSY, NO.1 RH

main57301-03031iBEAG11202412

57302OUTRIGGER SUB-ASSY, NO.1, LH

main57302-03011iBEAG11202412

57342AGUSSET, OUTRIGGER, NO.2 LH

main57342-0R020iBEAG11202412

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-03021iBEAG11202412

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-03020iBEAG11202412

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-03060iBEAG11202412

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-03050iBEAG11202412

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-03020iBEAG11202412

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-03040iBEAG11202412

57641BREINFORCEMENT, REAR FLOOR SIDE MEMBER, INSIDE

main57641-03010iBEAG11202412

90105C0237

main90105-C0237

90119C0245

main90119-C0245

90119C0523

main90119-C0523

90119C0540

main90119-C0540

90119C0610

main90119-C0610

90178C0033

main90178-C0033

40 parts on this diagram · 1 diagram in section
