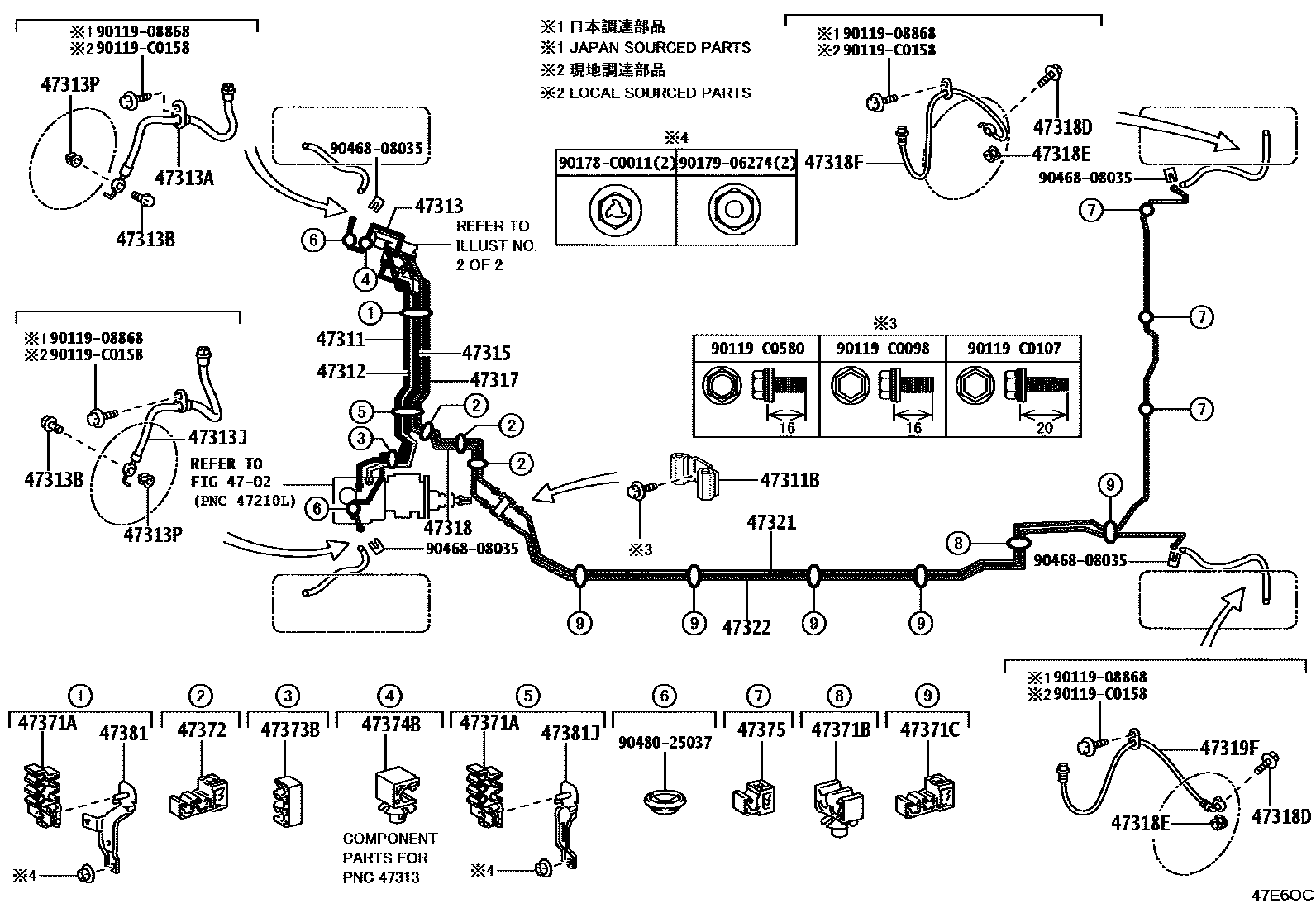

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-03020iBEAG11202412

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iBEAG11202412

(J)

main90412-C0004iBEAG11202412

(L)

47312TUBE, FRONT BRAKE, NO.2

main47312-03020iBEAG11202412

47313TUBE, FRONT BRAKE, NO.3

main47313-03020iBEAG11202412

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2138iBEAG11202412

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iBEAG11202412

(J)

main90401-C0001×2iBEAG11202412

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2139iBEAG11202412

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iBEAG11202412

47315TUBE, FRONT BRAKE, NO.5

main47315-03020iBEAG11202412

47317TUBE, FRONT BRAKE, NO.7

main47317-03010iBEAG11202412

47318TUBE, FRONT BRAKE, NO.8

main47318-03010iBEAG11202412

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iBEAG11202412

(J)

main90401-C0001×2iBEAG11202412

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iBEAG11202412

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2124iBEAG11202412

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2125iBEAG11202412

47321TUBE, REAR BRAKE, NO.1

main47321-03030iBEAG11202412

47322TUBE, REAR BRAKE, NO.2

main47322-03020iBEAG11202412

47371ACLAMP, BRAKE TUBE, NO.1

main47371-0E120×2iBEAG11202412

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D12iBEAG11202412

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D60×5iBEAG11202412

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D60×3iBEAG11202412

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E43iBEAG11202412

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D17iBEAG11202412

47375CLAMP, BRAKE TUBE, NO.5

main90949-01C82×3iBEAG11202412

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-03010iBEAG11202412

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-03020iBEAG11202412

9011908868

main90119-08868

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0158

main90119-C0158

90119C0580

main90119-C0580

90178C0011

main90178-C0011

9017906274

main90179-06274

9046808035

main90468-08035

9048025037

main90480-25037

36 parts on this diagram · 2 diagrams in section
