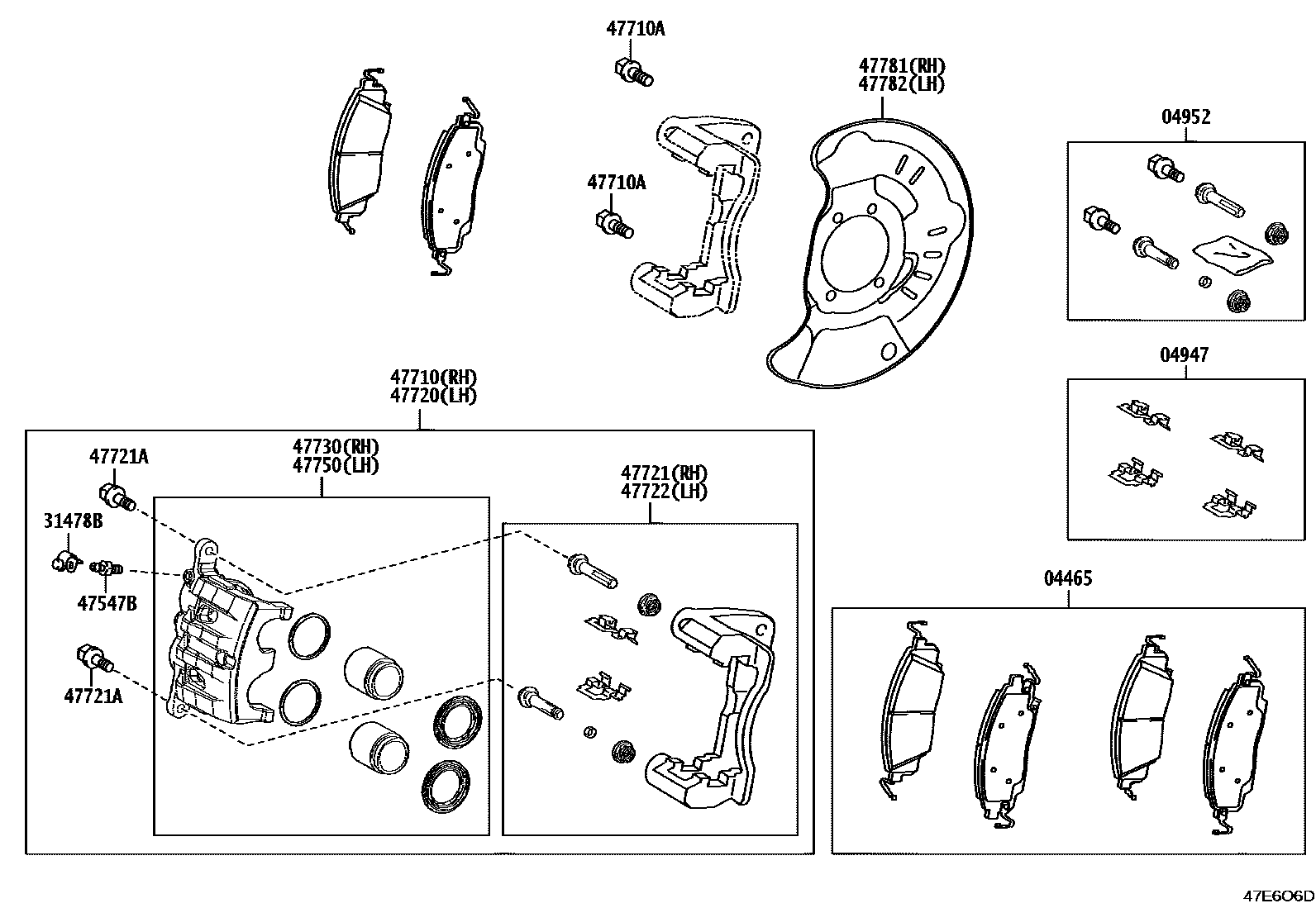

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02660iBEAG11..F,G202412

MARK GA9002

main04465-02670iBEAG11..L,N202412

MARK GA9002

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02200iBEAG11..L,N202412

main04947-02230iBEAG11..F,G202412

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02430iBEAG11..F,G202412

main04952-03040iBEAG11..L,N202412

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-03030iBEAG11202412

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-03030iBEAG11202412

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-03040iBEAG11..L,N202412

main47710-03050iBEAG11..F,G202412

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212×2iBEAG11202412

*14-1.5PX35.5-31,(J)

main90105-C0361×2iBEAG11202412

*14-1.5PX35.5-31,(L)

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-03050iBEAG11..L,N202412

main47720-03060iBEAG11..F,G202412

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-03040iBEAG11..L,N202412

main47721-03050iBEAG11..F,G202412

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90069-31429×2iBEAG11..L,N202412

LH

main90069-31439×2iBEAG11..L,N202412

RH

main90069-31440×2iBEAG11..F,G202412

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-03040iBEAG11..L,N202412

main47722-03050iBEAG11..F,G202412

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-03040iBEAG11..L,N202412

main47730-03050iBEAG11..F,G202412

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-03040iBEAG11..L,N202412

main47750-03050iBEAG11..F,G202412

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-03020iBEAG11202412

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-03020iBEAG11202412

15 parts on this diagram · 2 diagrams in section
