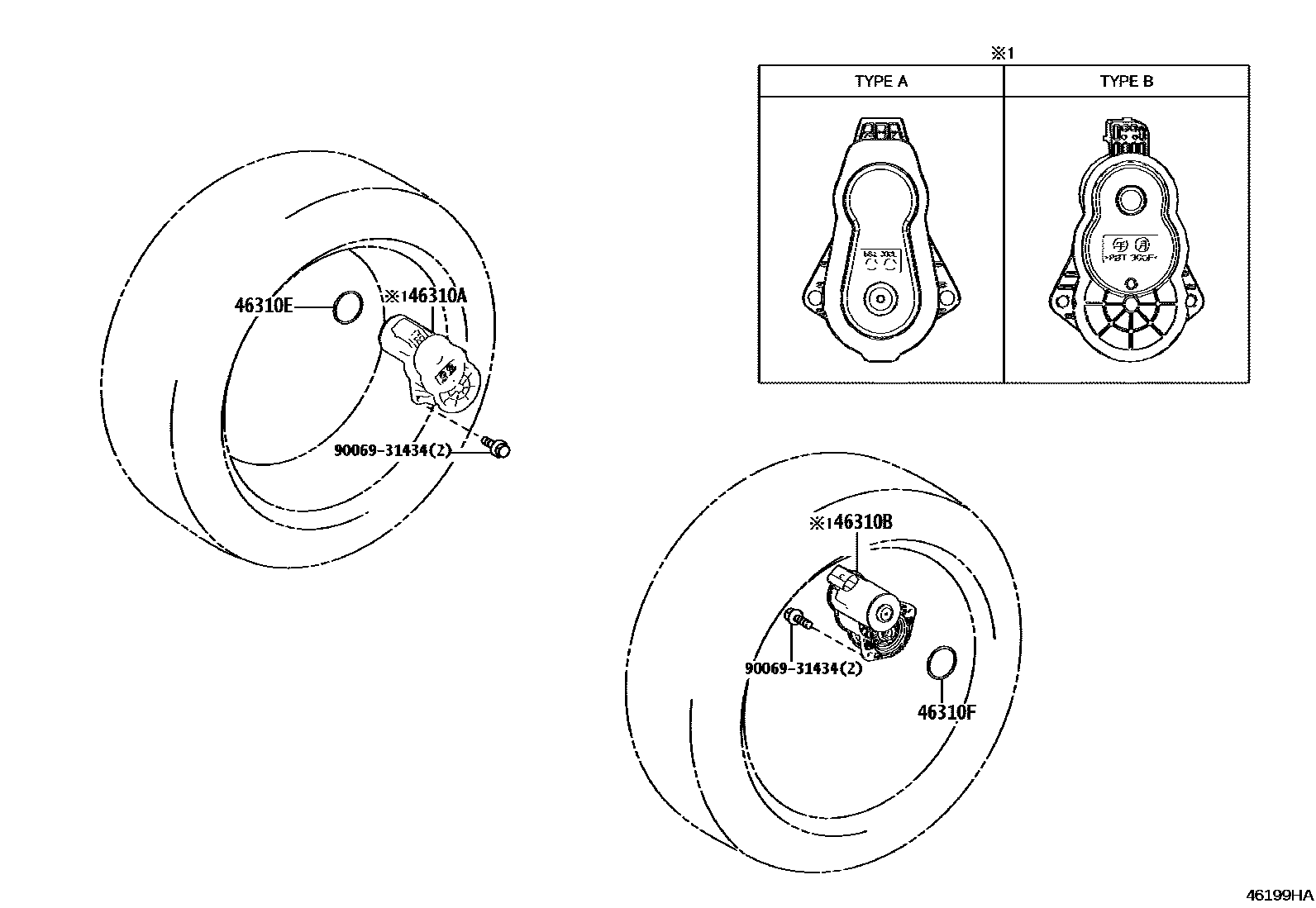

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-03010iBEAG11..L,N202412

TYPE A(REFER ILLUST)

main46310-03020iBEAG11..F,G202412

TYPE B(REFER ILLUST)

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-03010iBEAG11..L,N202412

TYPE A(REFER ILLUST)

main46310-03020iBEAG11..F,G202412

TYPE B(REFER ILLUST)

46310ESEAL(FOR PARKING BRAKE ACTUATOR, RH)

main47737-03050iBEAG11202412

46310FSEAL(FOR PARKING BRAKE ACTUATOR, LH)

main47737-03050iBEAG11202412

9006931434

main90069-31434

5 parts on this diagram · 1 diagram in section
