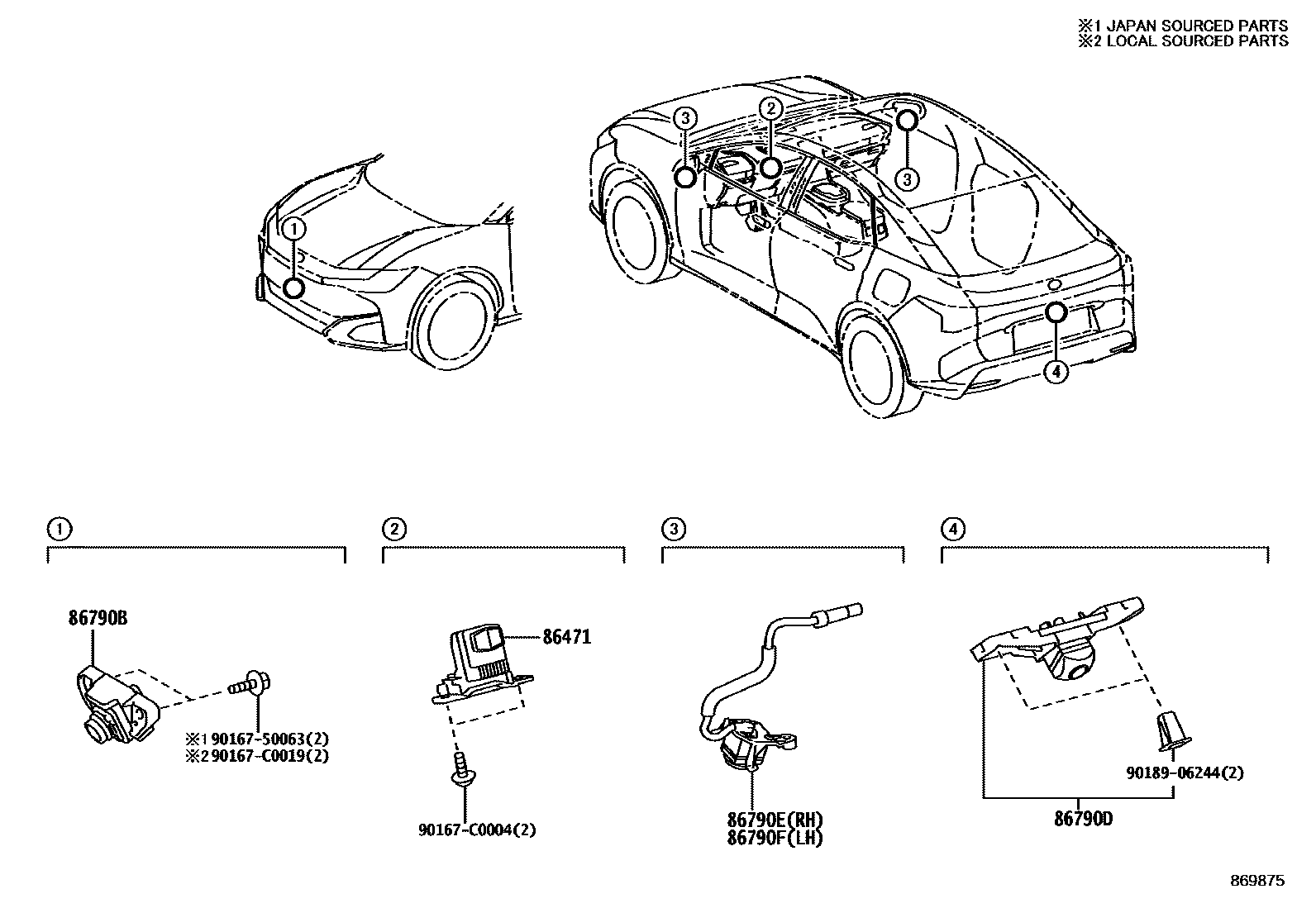

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86471CAMERA, DRIVER MONITOR

main86471-03020iBEAM10..J202301

ADVANCED PACKAGE

main86471-03030iBEJG10..M,N202407

WHITE ADVANCED PACKAGE

86790BCAMERA ASSY, TELEVISION, FR

main86790-03010iBEAM10..J202301

SAFETY PACKAGE

main86790-03210iBEJG10..M,N202407

SAFETY PACKAGE

main86790-03250iBEJG10..H202407

86790DCAMERA ASSY, TELEVISION, RR

main86790-03040supersedes 867B0-03020iBEAM10..J202301

SAFETY PACKAGE

main86790-03240supersedes 867B0-03050iBEJG10..M,N202407

SAFETY PACKAGE

main86790-03270iBEJG10..H202407

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-03020iBEAM10..J202301

SAFETY PACKAGE

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-03030iBEAM10..J202301

SAFETY PACKAGE

9016750063

main90167-50063

90167C0004

main90167-C0004

90167C0019

main90167-C0019

9018906244

main90189-06244

9 parts on this diagram · 2 diagrams in section
