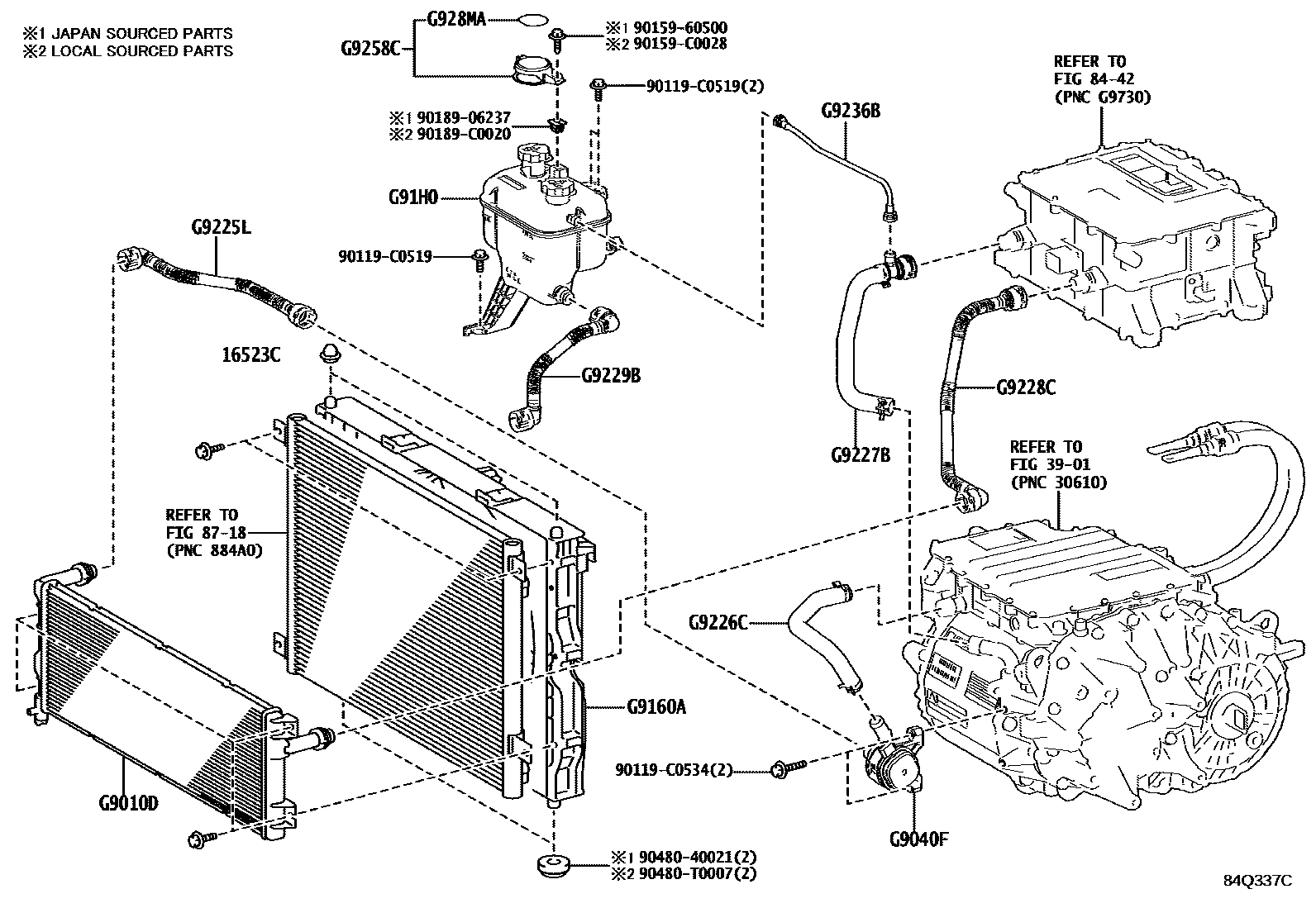

BEV COOLING

16523CCUSHION, RADIATOR SUPPORT

main16523-F2010×2iEM..BEAM10202301

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8442DC/DC CONVERTER & CHARGER(BEV OR FCEV)

→ Go to FIG 84-42

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

G9010DRADIATOR ASSY

mainG901003010iBEJG10202407

G9040FPUMP ASSY, WATER W/MOTOR, NO.2

mainG904003010iBEJG10202407

G9160AFAN ASSY, INVERTER COOLING W/MOTOR

mainG916003010iBEJG10202407

G91H0TANK ASSY, BATTERY RESERVE

mainG91H003010iBEJG10202407

G9225LHOSE, INVERTER COOLING, NO.1

mainG922503010iBEJG10202407

G9226CHOSE, INVERTER COOLING, NO.2

mainG922603010iBEAM10202301

mainG922603020iBEJG10..H202407

G9227BHOSE, INVERTER COOLING, NO.3

mainG922703010iBEJG10202407

G9228CHOSE, INVERTER COOLING, NO.4

mainG922803010iBEJG10202407

G9229BHOSE, INVERTER COOLING, NO.5

mainG922903010iBEJG10202407

G9236BHOSE, INVERTER COOLING, NO.6

mainG923603010iBEJG10..J,M,N202407

mainG923603030iBEJG10..H202407

G9258CCAP, BATTERY RESERVE TANK

mainG96JC0R020iBEJG10202407

G928MALABEL, BATTERY COOLANT CAUTION

mainG928M0R020iBEAM10202301

90119C0519

main90119-C0519

90119C0534

main90119-C0534

9015960500

main90159-60500

90159C0028

main90159-C0028

9018906237

main90189-06237

90189C0020

main90189-C0020

9048040021

main90480-40021

90480T0007

main90480-T0007

24 parts on this diagram · 1 diagram in section
