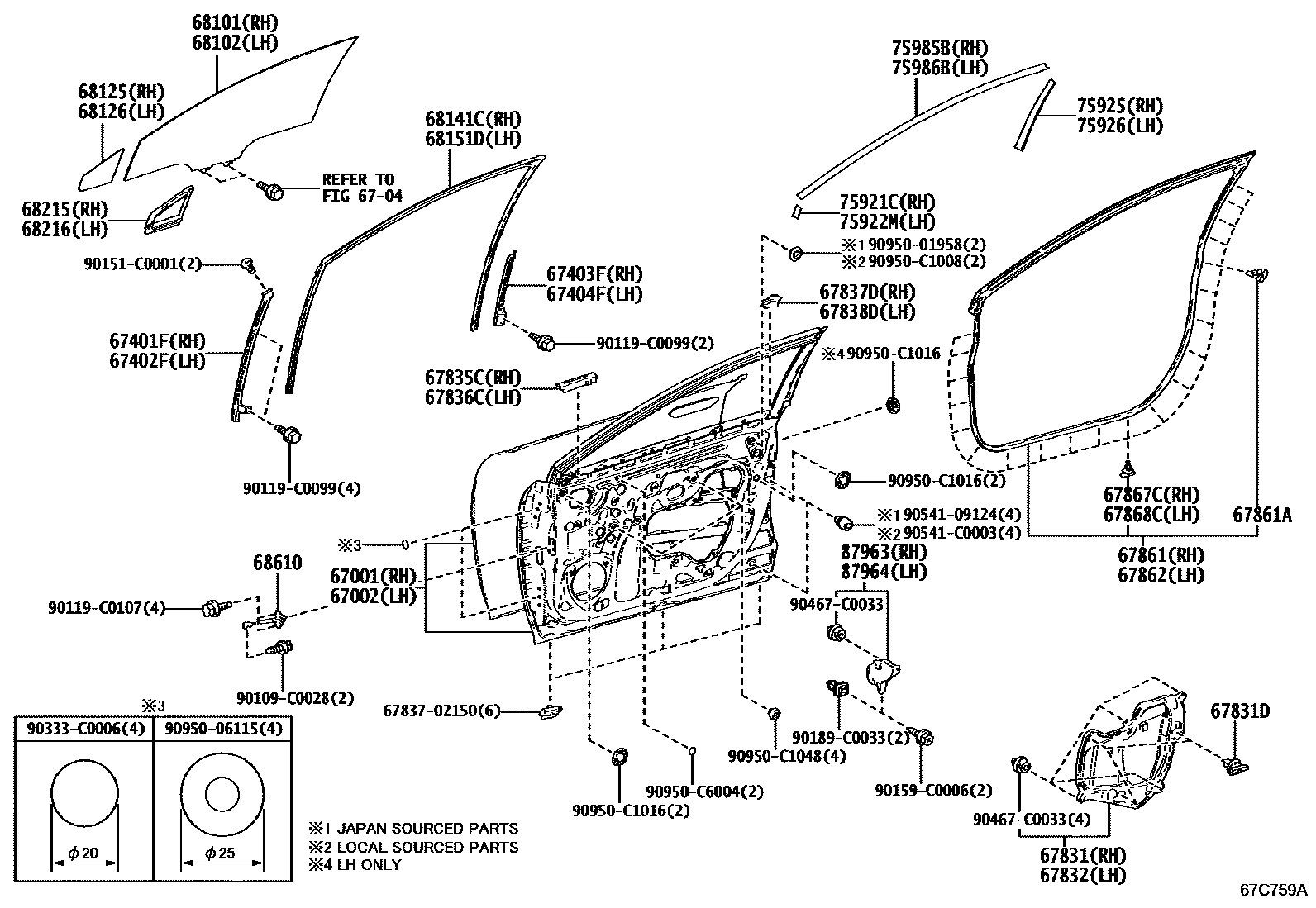

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-03080iBEAM10202301-202401

main67001-03081iBEJG10202402

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-03030iBEJG10202301

6704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-03020iBEAM10202301

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-03020iBEJG10202301

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-03020iBEJG10202301

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-03020iBEJG10202301

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-03020iBEAM10202301

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4020iBEJG10202301

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-03020iBEJG10202301

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-03010iBEAM10202301

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-03010iBEAM10202301

67837DSEAL, FRONT DOOR VENT, RH

main67837-03010iBEAM10202301-202501

main67837-03011iBEJG10202501

67838DSEAL, FRONT DOOR VENT, LH

main67838-03010iBEJG10202301-202501

main67838-03011iBEJG10202501

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-03020iBEJG10202301

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main90467-04034iBEJG10202301

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-03020iBEJG10202301

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D090iBEJG10202301

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iBEJG10202301

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-03030iBEJG10202301

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-03030iBEJG10202301

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-03010iBEJG10202301

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-03010iBEJG10202301

68141CRUN, FRONT DOOR GLASS, RH

main68141-03010iBEJG10202301

68151DRUN, FRONT DOOR GLASS, LH

main68151-03010iBEJG10202301

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-03010iBEJG10202301

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-03010iBEJG10202301

68610CHECK ASSY, FRONT DOOR

main68610-03010iBEJG10202301

75921CTAPE, BLACK OUT, NO.1 RH

main75975-03010iBEAM10202301

75922MTAPE, BLACK OUT, NO.1 LH

main75976-03010iBEAM10202301

75925TAPE, BLACK OUT, NO.3 RH

main75965-03010iBEAM10202301

75926TAPE, BLACK OUT, NO.3 LH

main75966-03010iBEAM10202301

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-03010iBEAM10202301

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-03010iBEAM10202301

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-03020iBEJG10202301

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-03020iBEJG10202301

6783702150PROTECTOR, FRONT DOOR SERVICE HOLE COVER

main67837-02150

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90189C0033

main90189-C0033

90333C0006

main90333-C0006

90467C0033

main90467-C0033

9054109124

main90541-09124

90541C0003

main90541-C0003

9095001958

main90950-01958

9095006115

main90950-06115

90950C1008

main90950-C1008

90950C1016

main90950-C1016

90950C1048

main90950-C1048

90950C6004

main90950-C6004

53 parts on this diagram · 2 diagrams in section
