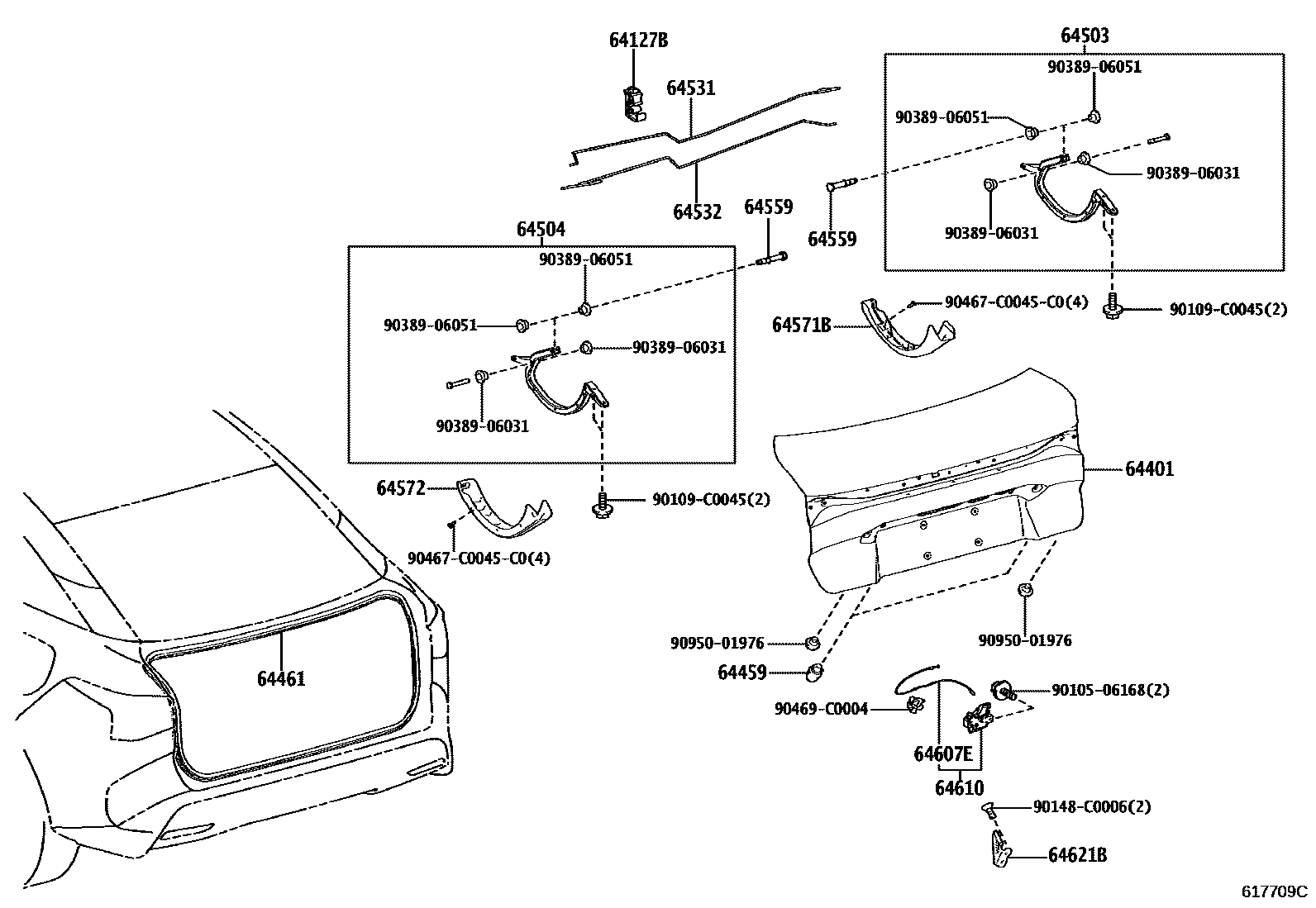

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iBEAM10202301

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-03040iBEAM10202301

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iBEAM10202301

(J)

main90541-C0009×2iBEJG10202407

(L)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-03020iBEJG10202407

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-03010iBEAM10202301-202312

main64503-03011iBEJG10202407

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-03010iBEAM10202301-202312

main64503-03011iBEJG10202407

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-03010iBEAM10202301

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-03010iBEAM10202301

64559PIN, LUGGAGE DOOR HINGE

main64559-32030×2iBEAM10202301

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-03010-C0iBEAM10202312

BLACK,TRIM0#,1#,2#,4#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-03010-C0iBEJG10; BEJG10..M202407

BLACK,TRIM0#,2#; FLEET PACKAGE,BLACK,TRIM0#,2#; TAXI PACKAGE,BLACK,TRIM0#,2#

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-03010iBEJG10202407

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-03010iBEJG10202407

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D040iBEJG10202407

9010506168

main90105-06168

90109C0045

main90109-C0045

90148C0006

main90148-C0006

9038906031

main90389-06031

9038906051

main90389-06051

90467C0045C0

main90467-C0045C0

90469C0004

main90469-C0004

9095001976

main90950-01976

22 parts on this diagram · 1 diagram in section
