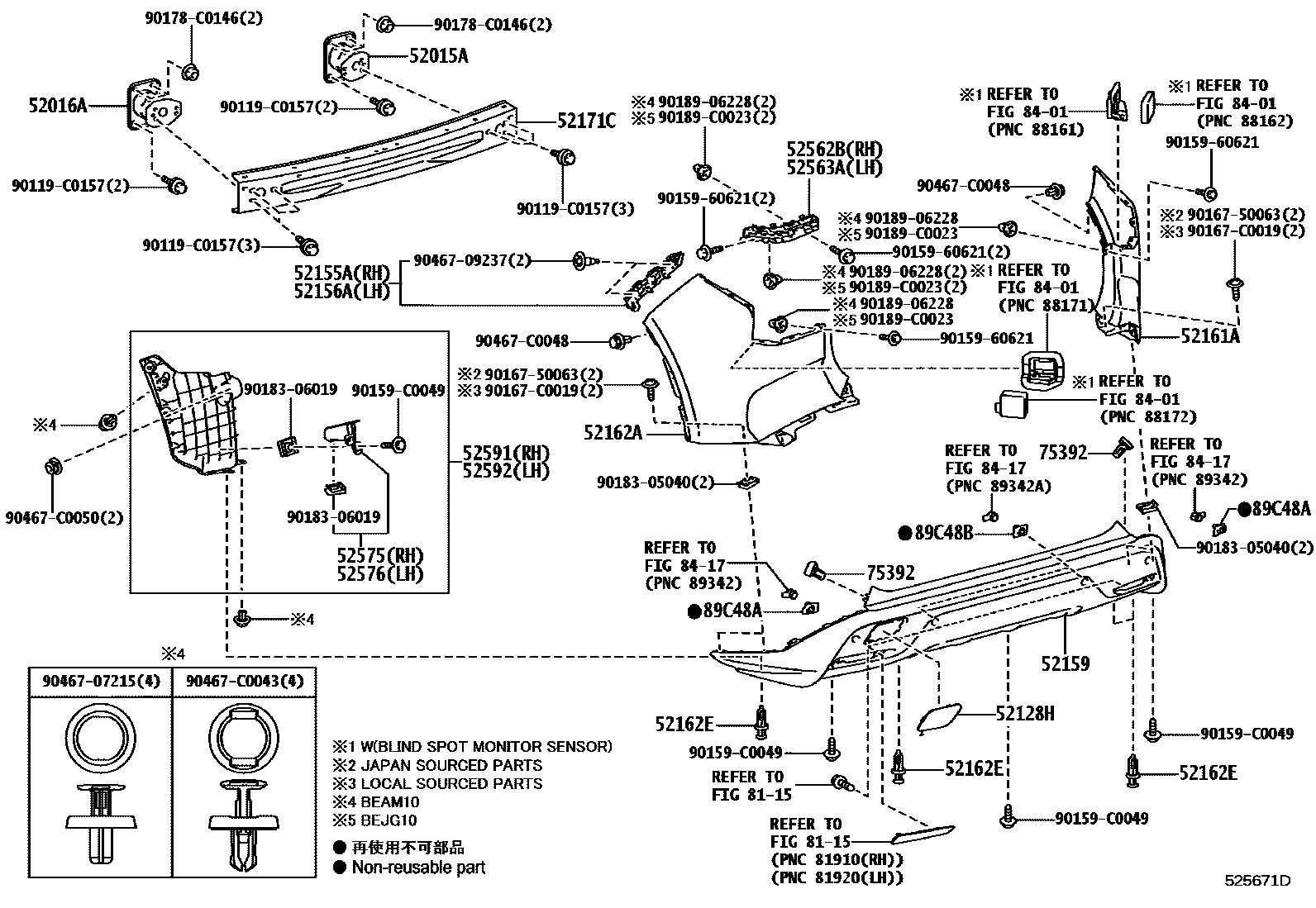

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-03040iBEJG10202407

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-03020iBEJG10202407

52128HCOVER, REAR BUMPER HOLE, LH

main52107-03020iBEJG10202407

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-03010iBEJG10202407

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-03010iBEJG10202407

52159COVER, REAR BUMPER

main52159-03030iBEAM10202301

NO PAINT REQ.

main52159-03050iBEJG10..H202407

NO PAINT REQ.

main52159-03070iBEJG10..J,M,N202407

NO PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-03901iBEJG10..H,M,N202407

main52161-03902iBEJG10..H202407

52162APIECE, REAR BUMPER, LH

main52162-03901iBEAM10202301

main52162-03902iBEJG10..H202407

52162EPIECE, REAR BUMPER

main52161-02040×4iBEJG10202407

52171CREINFORCEMENT, REAR BUMPER

main52171-03050iBEJG10202407

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-03010iBEJG10202407

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-03010iBEJG10202407

52575RETAINER, REAR BUMPER SIDE, RH

main52575-03010iBEJG10202407

52576RETAINER, REAR BUMPER SIDE, LH

main52576-03010iBEJG10202407

52591SEAL, REAR BUMPER SIDE, RH

main52591-03010iBEJG10202407

52592SEAL, REAR BUMPER SIDE, LH

main52592-03010iBEJG10202407

75392RETAINER, OUTSIDE MOULDING

main75392-0R030×2iBEJG10202407

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-03100iBEAM10202301

RH

main89348-03110iBEAM10202301

LH

main89348-03320iBEJG10..J,M,N202407

RH

main89348-03330iBEJG10..J,M,N202407

LH

main89348-03380iBEJG10..H202407

LH

main89348-03390iBEJG10..H202407

RH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-03080iBEAM10202301

RH

main89348-03090iBEAM10202301

LH

main89348-03340iBEJG10..J,M,N202407

RH

main89348-03350iBEJG10..J,M,N202407

LH

main89348-03400iBEJG10..H202407

LH

main89348-03410iBEJG10..H202407

RH

90119C0157

main90119-C0157

9015960621

main90159-60621

90159C0049

main90159-C0049

9016750063

main90167-50063

90167C0019

main90167-C0019

90178C0146

main90178-C0146

9018305040

main90183-05040

9018306019

main90183-06019

9018906228

main90189-06228

90189C0023

main90189-C0023

9046707215

main90467-07215

9046709237

main90467-09237

90467C0043

main90467-C0043

90467C0048

main90467-C0048

90467C0050

main90467-C0050

37 parts on this diagram · 2 diagrams in section
