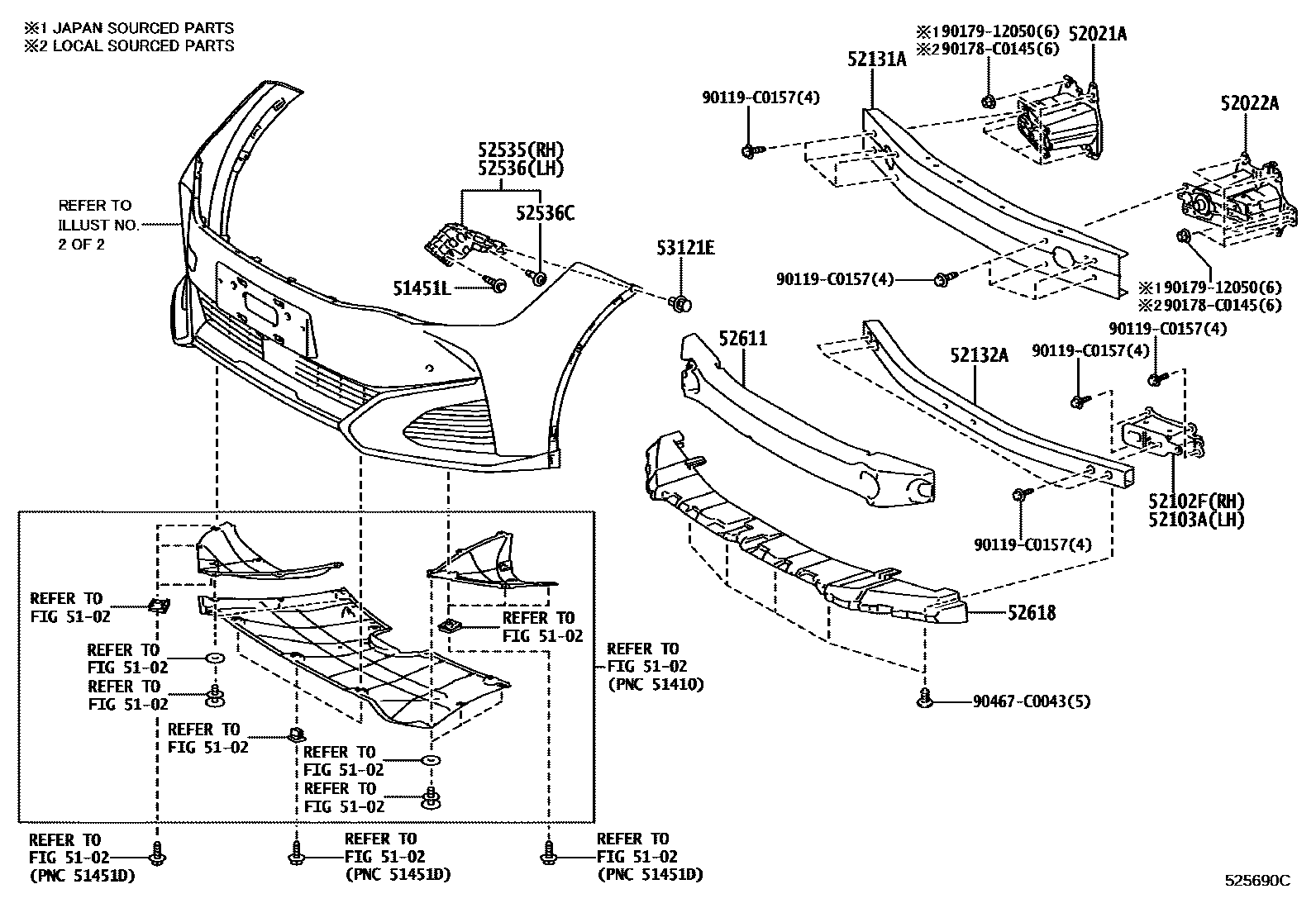

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5102

51451LBOLT, NO.1

main90109-C0022iBEAM10202301

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main57107-03010iBEAM10202301

main57107-03011iBEJG10202407

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main57108-03010iBEAM10202301

main57108-03011iBEJG10202407

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-03010iBEJG10202301

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-03010iBEAM10202301

52131AREINFORCEMENT, FRONT BUMPER

main52131-03020iBEJG10202301

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-03020iBEJG10202301

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-03010iBEJG10202407

NO PAINT REQ.

main52535-03010iBEAM10202301

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-03010iBEJG10202407

NO PAINT REQ.

main52536-03010iBEAM10202301

52536CCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iBEJG10202301

52611ABSORBER, FRONT BUMPER ENERGY

main52611-03020iBEJG10202301

52618ABSORBER, FRONT BUMPER, LOWER

main52618-03010iBEJG10202301

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-C0048iBEJG10202301

90119C0157

main90119-C0157

90178C0145

main90178-C0145

9017912050

main90179-12050

90467C0043

main90467-C0043

18 parts on this diagram · 3 diagrams in section
