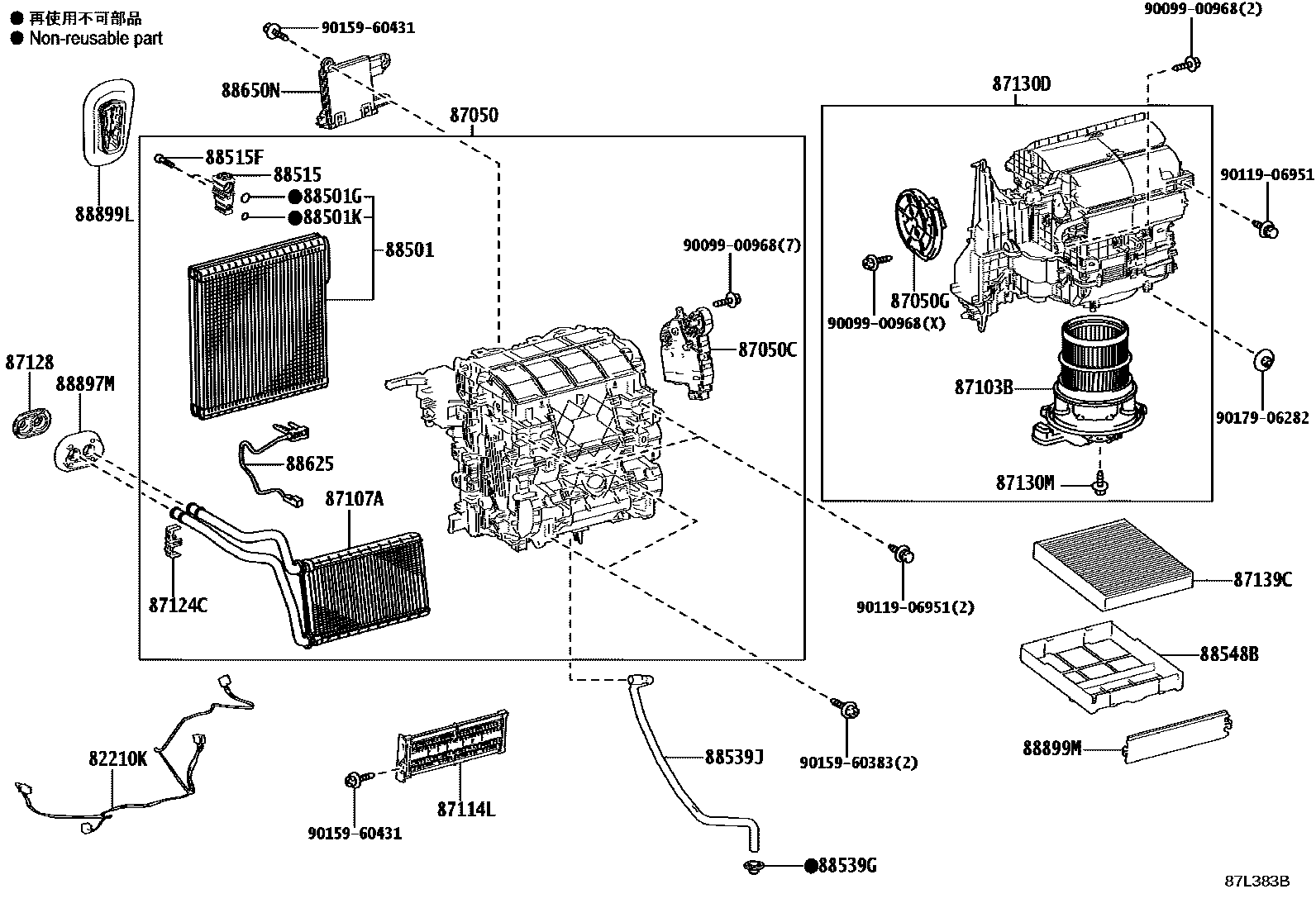

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1W(DUAL MODE CONTROL) 0003 1W/O(DUAL MODE CONTROL)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12050iGZEA14..LHD202210-202409

main82212-12130iGZEA14..02S202210-202304

87050RADIATOR ASSY, AIR CONDITIONER

main87050-10030supersedes 87050-12890iGZEA14..05S..ARL; GZEA14..MA,TH202210-202409

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-12890iGZEA14..02S202210-202304

main87050-12C70iGZEA14..LHD202210-202409

main87050-12D90iGZEA14..ARL202409

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-47180iGZEA14..02S202210-202304

main87106-48170supersedes 87106-47180iGZEA14..05S..ARL; GZEA14..BZ,GEN,MA,TH202210-202409

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-28250iGZEA14..RHD202409

main87106-58050iGZEA14..LHD202409

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58070iGZEA14..02S202210-202304

main87103-58080iGZEA14..LHD202210-202409

main87103-78040iGZEA14..LHD202409

main87103-78050iGZEA14..RHD202409

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iGZEA14..RHD202409

main87107-47080iGZEA14..LHD202409

87114LCOVER, HEATER, NO.2

main87114-47020iGZEA14202409

87124CCLAMP, HEATER

main87124-33070iGZEA14202409

87128GROMMET, HEATER

main87128-28010iGZEA14202409

87130DBLOWER ASSY

main87130-16211iGZEA14..RHD202409

main87130-42491iGZEA14..LHD202409

main87130-47290iGZEA14..LHD202210-202409

main87130-47300iGZEA14..RHD..05S202210-202409

87130MSCREW(FOR BLOWER)

main87193-87101×3iGZEA14202409

87139CFILTER, CLEAN AIR

main87139-28020iGZEA14202409

POLLEN FILTER

main87139-58010iGZEA14202409

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12540iGZEA14..ARL202409

main88501-12620iGZEA14..02S202210-202304

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iGZEA14..02S202210-202304

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iGZEA14202409

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-33080iGZEA14..ARL202409

main88515-48110iGZEA14..BZ,GEN,MA,TH202409

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iGZEA14202409

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iGZEA14..MA,TH202409

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iGZEA14..05S202210-202409

88539JHOSE, DRAIN COOLER

main88539-47050iGZEA14..RHD202409

main88539-47060iGZEA14..LHD202409

88548BCASE, AIR FILTER

main88899-47090iGZEA14202409

88625THERMISTOR, COOLER, NO.1

main88620-28050iGZEA14202409

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12M00iGZEA14202210-202405

main88650-12N00iGZEA14202406-202409

main88650-12N50iGZEA14202409

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iGZEA14202409

88899LPARTS, COOLING UNIT

main88899-10120iGZEA14202409

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iGZEA14202409

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

31 parts on this diagram · 3 diagrams in section
