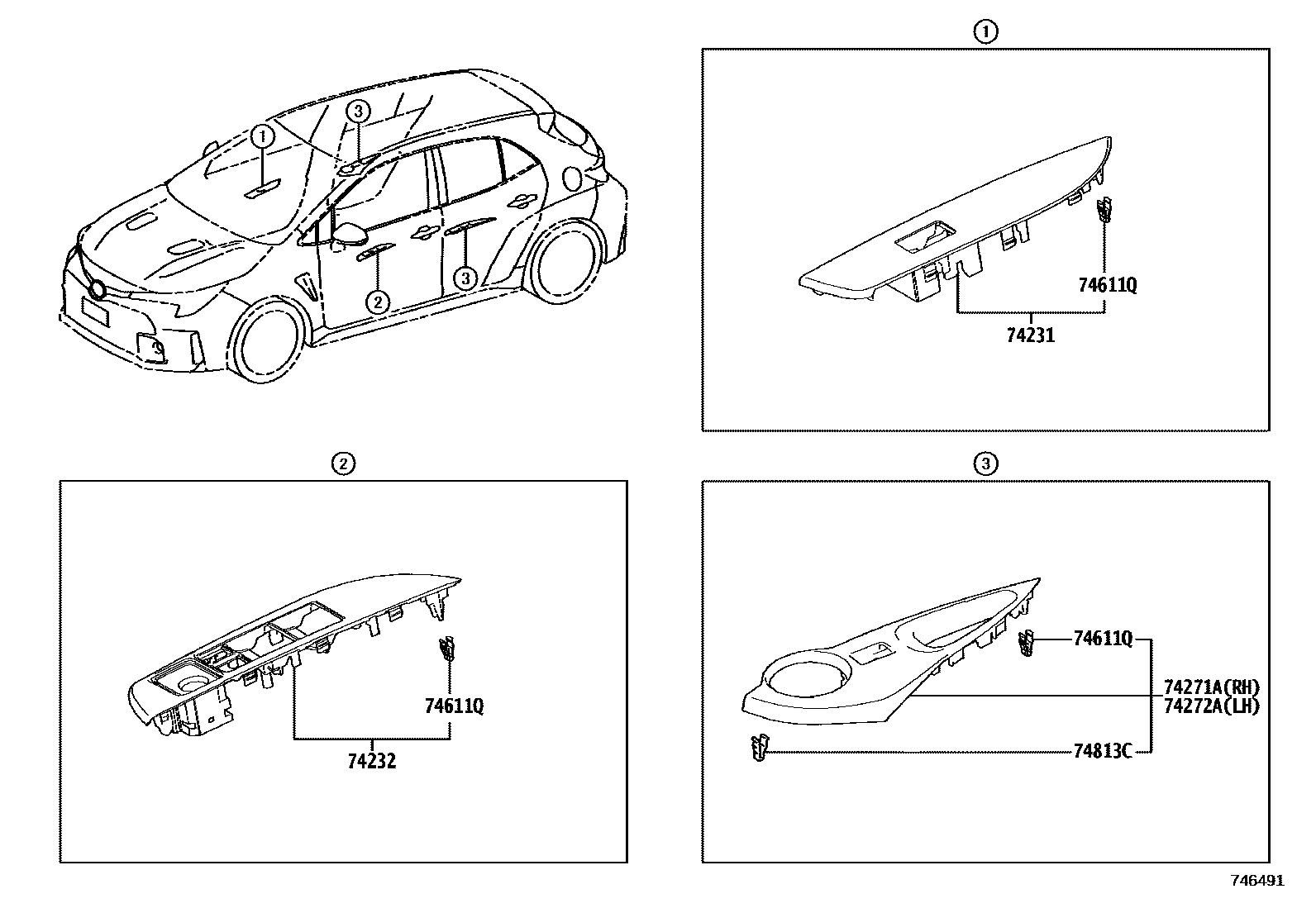

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12D60iGZEA14..LHD202210-202409

main74231-12D70iGZEA14..RHD202409

main74231-12D70iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE

main74231-12E20iGZEA14..LHD202409

main74231-12E30iGZEA14..MA,TH202210-202409

main74231-12E80iGZEA14..02S202303-202304

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12A80iGZEA14..LHD202210-202409

main74232-12A90iGZEA14..LHD202409

main74232-12B00iGZEA14..MA,TH202210-202409

main74232-12B80iGZEA14..RHD202409

main74232-12B80iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE

main74232-12C40iGZEA14..02S202303-202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12550iGZEA14..02S202210-202409

main74271-12560iGZEA14202409

main74271-12560iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12490iGZEA14..02S202210-202409

main74272-12530iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE

main74272-12530iGZEA14202409

74611QCLIP

main90467-10203iGZEA14202210-202409

74813CCLIP

main90467-12080iGZEA14202210-202409

6 parts on this diagram · 3 diagrams in section
