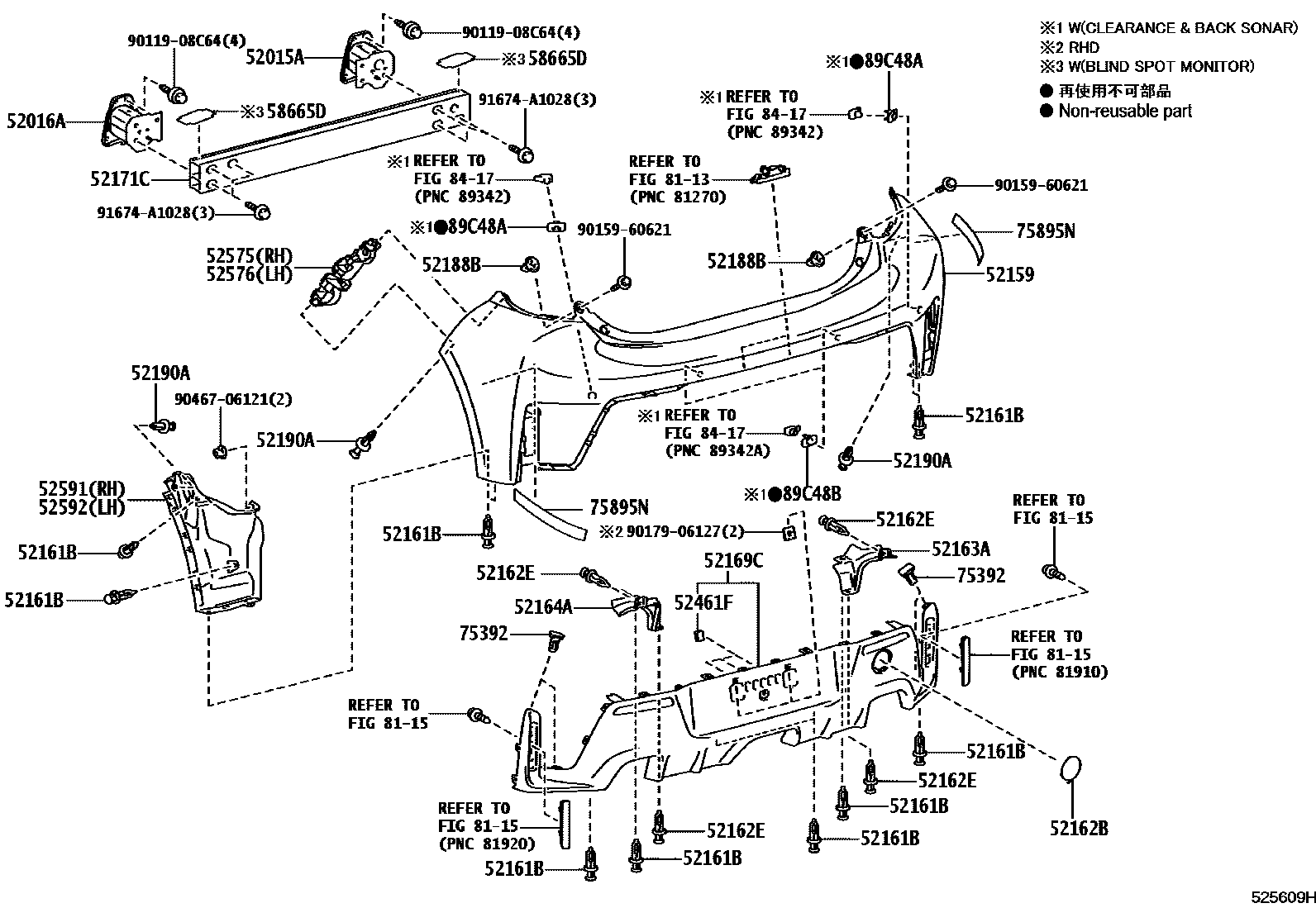

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH; PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52162EPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52188BSPACER, REAR BUMPER MOUNTING
52190ACLIP
DK.GRAY
52461FPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
58665DSHEET, REAR FLOOR SILENCER, NO.5
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
75392RETAINER, OUTSIDE MOULDING
75895NTAPE, MOULDING, NO.1
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5; CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5; PRECIOUS METAL,1L5
BLACK,202; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,202; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202; CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5; PRECIOUS METAL,1L5; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
BLACK,202; CLEARANCE & BACK SONAR-WITH,BLACK,202; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; EMOTIONAL RED 2,3U5; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9; CYAN METALLIC,8W9; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,PRECIOUS BLACK,219
CLEARANCE & BACK SONAR-WITH,GRAY METALLIC MATT,1M1
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH; RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH
9011908C64
main90119-08C64
9015960621
main90159-60621
9017906127
main90179-06127
9046706121
main90467-06121
91674A1028
main91674-A1028
30 parts on this diagram · 1 diagram in section
