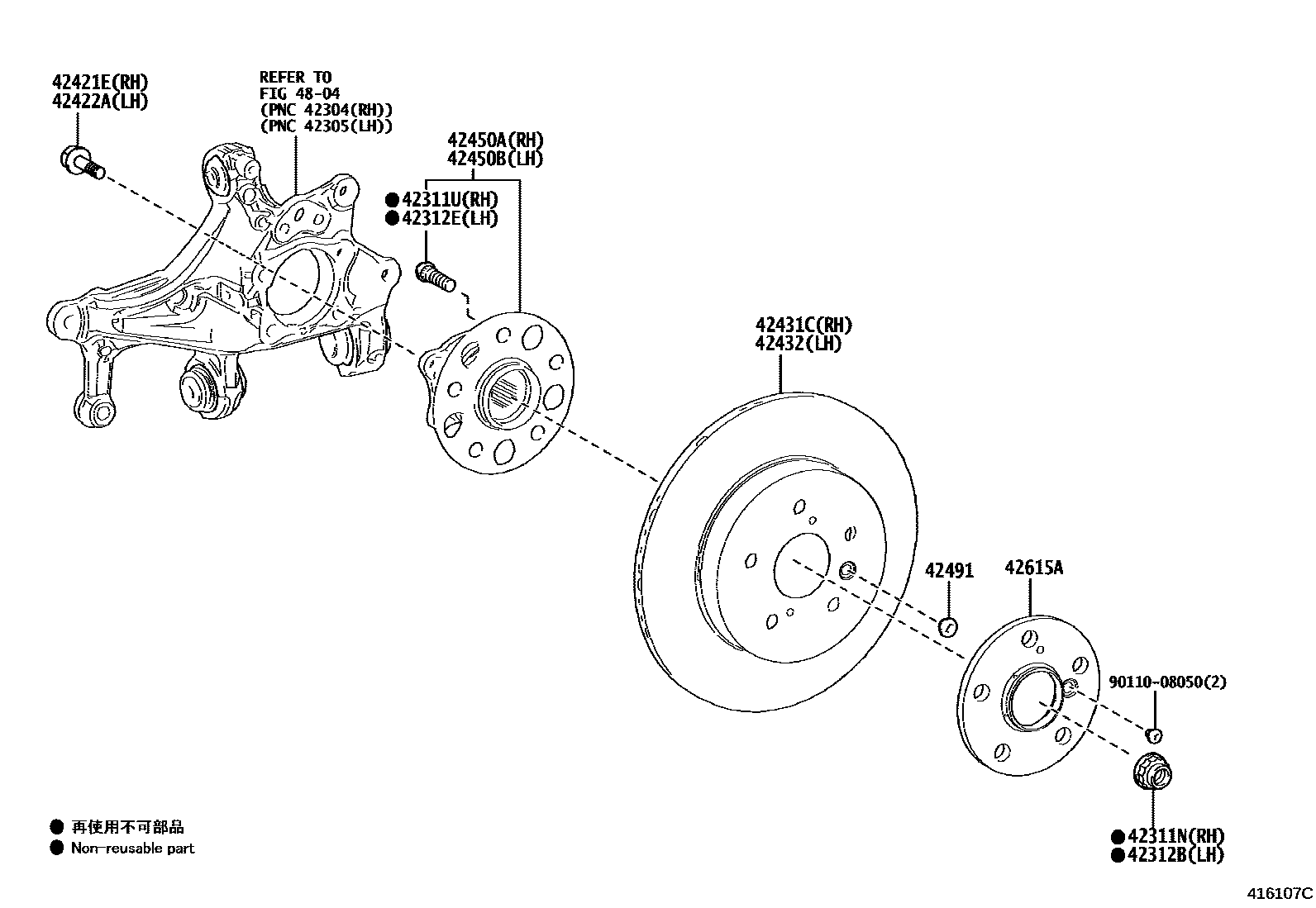

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGZEA14202409

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02098×5iGZEA14202409

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGZEA14202409

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02098×5iGZEA14202409

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iGZEA14202409

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iGZEA14202409

42431CDISC, REAR RH

main42431-52190iGZEA14202409

42432DISC, REAR LH

main42432-52010iGZEA14202409

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-12330iGZEA14202409

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-12330iGZEA14202409

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iGZEA14202409

42615ASPACER, DISK WHEEL

main42615-12010iGZEA14202409

LH,RH

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9011008050

main90110-08050

14 parts on this diagram · 2 diagrams in section
