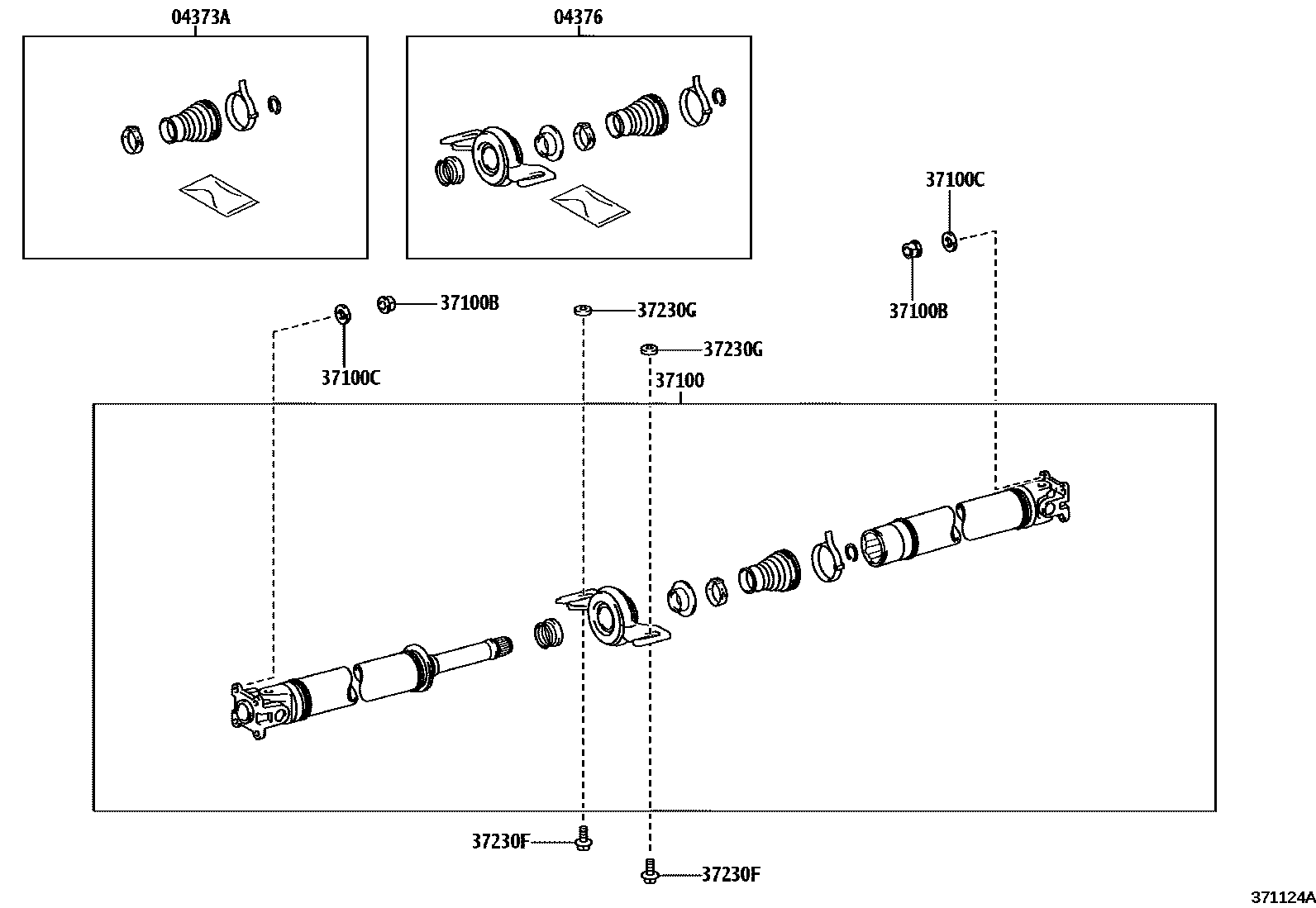

PROPELLER SHAFT & UNIVERSAL JOINT

04373ABOOT KIT, UNIVERSAL

main04373-48010iGZEA14202409-202411

main04373-48011iGZEA14202412

04376BEARING KIT, CENTER SUPPORT

main04376-48020iGZEA14202409-202412

main04376-48021iGZEA14202412

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-12670iGZEA14..02S202210-202304

main37100-12690iGZEA14..6F202409

main37100-12700iGZEA14..8FC202409

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-10007×8iGZEA14202409

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-10102×8iGZEA14202409

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iGZEA14..02S202210-202304

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×2iGZEA14202409

T=4.5

main90201-10083×2iGZEA14..02S202210-202304

T=6.5

main90201-10084×2iGZEA14..02S202210-202304

T=9.0

main90201-10085×2iGZEA14202409

T=11.0

main90201-10123×2iGZEA14..02S202210-202304

T=2.0

7 parts on this diagram · 1 diagram in section
