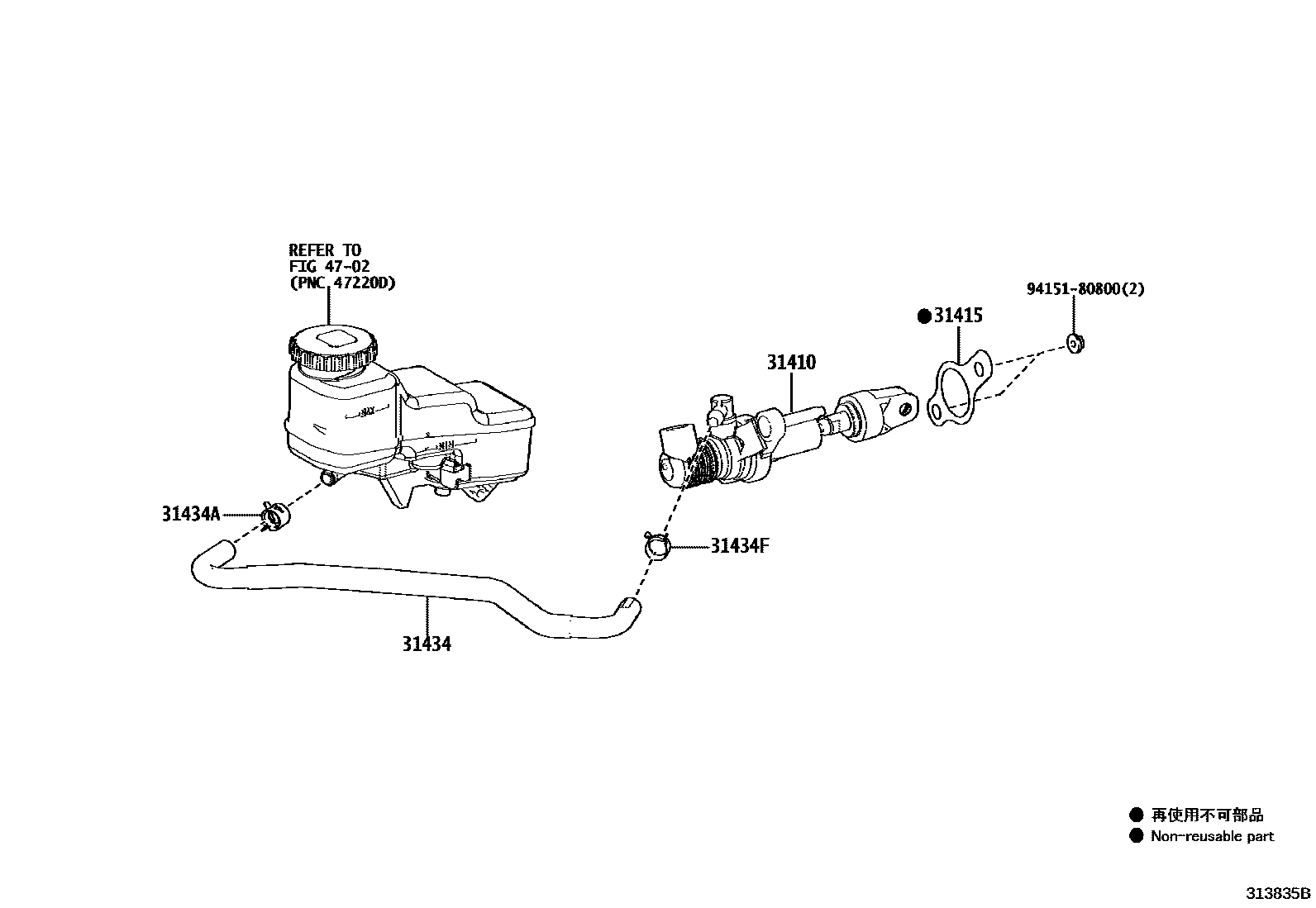

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12070iGZEA14..02S202210-202304

31415GASKET, CLUTCH MASTER CYLINDER

main31415-K0010iGZEA14..6F202409

31434TUBE, CLUTCH RESERVOIR

main31434-10030iGZEA14..02S202210-202304

main31434-12160iGZEA14..LHD202210-202409

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96137-41501iGZEA14..02S202210-202304

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iGZEA14..6F202409

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
