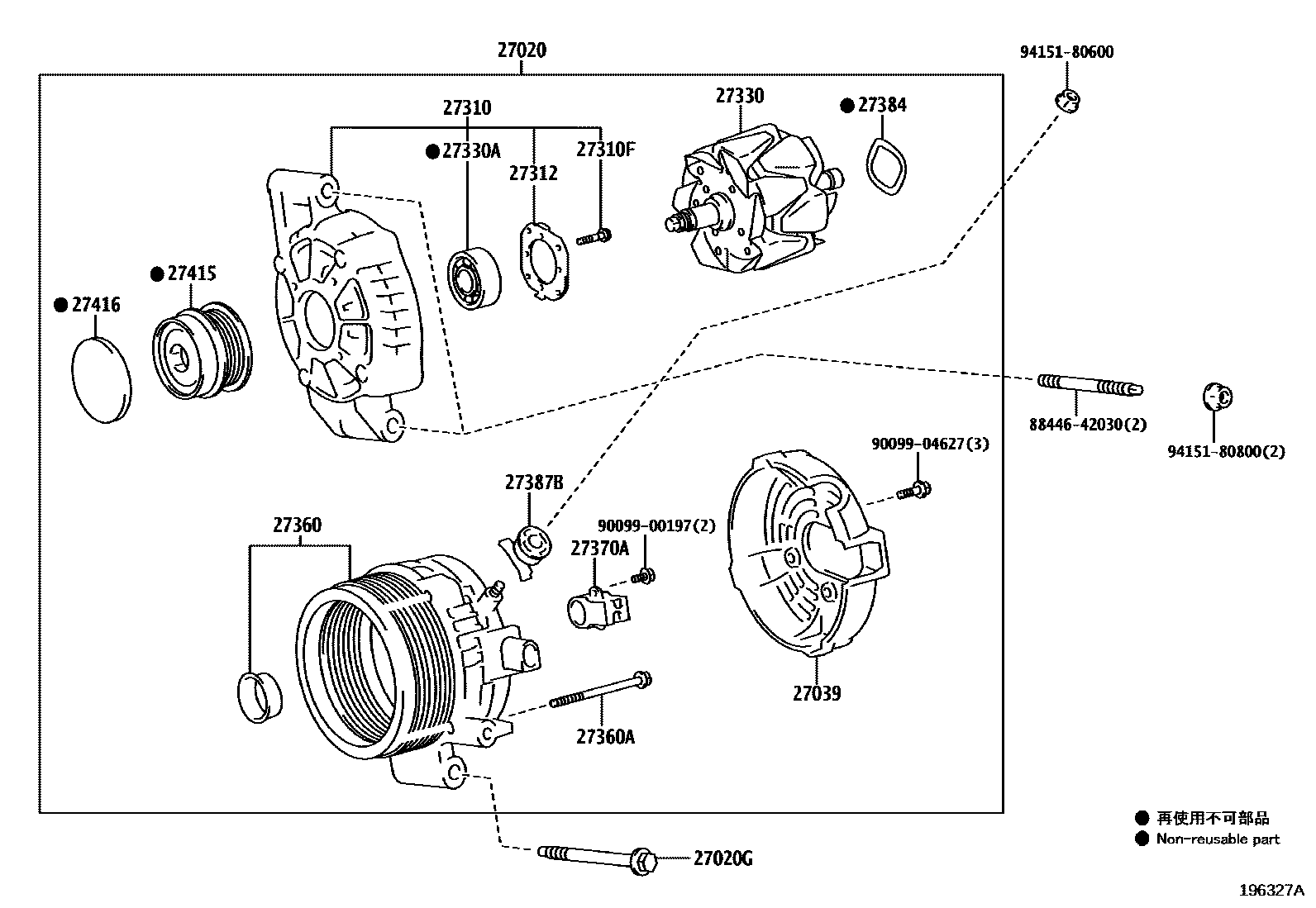

ALTERNATOR

27020ALTERNATOR ASSY

main27060-18020iG16EGTS..GZEA14202409

12V 100A

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08C78iG16EGTS..GZEA14202409

27039COVER, ALTERNATOR REAR END

main27039-37220iG16EGTS..GZEA14202409

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150iG16EGTS..GZEA14202409

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90099-00268×4iG16EGTS..GZEA14202409

27312PLATE, RETAINER

main27312-72100iG16EGTS..GZEA14202409

27330ROTOR ASSY, ALTERNATOR

main27330-47330iG16EGTS..GZEA14202409

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223iG16EGTS..GZEA14202409

27360COIL ASSY, ALTERNATOR

main27360-18040iG16EGTS..GZEA14202409

27360ABOLT(FOR ALTERNATOR COIL)

main90099-04626×4iG16EGTS..GZEA14202409

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iG16EGTS..GZEA14202409

27384WASHER

main27384-38130iG16EGTS..GZEA14202409

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130iG16EGTS..GZEA14202409

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W280iG16EGTS..GZEA14202409

27416CAP, ALTERNATOR PULLEY

main27416-0W050iG16EGTS..GZEA14202409

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009904627

main90099-04627

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
