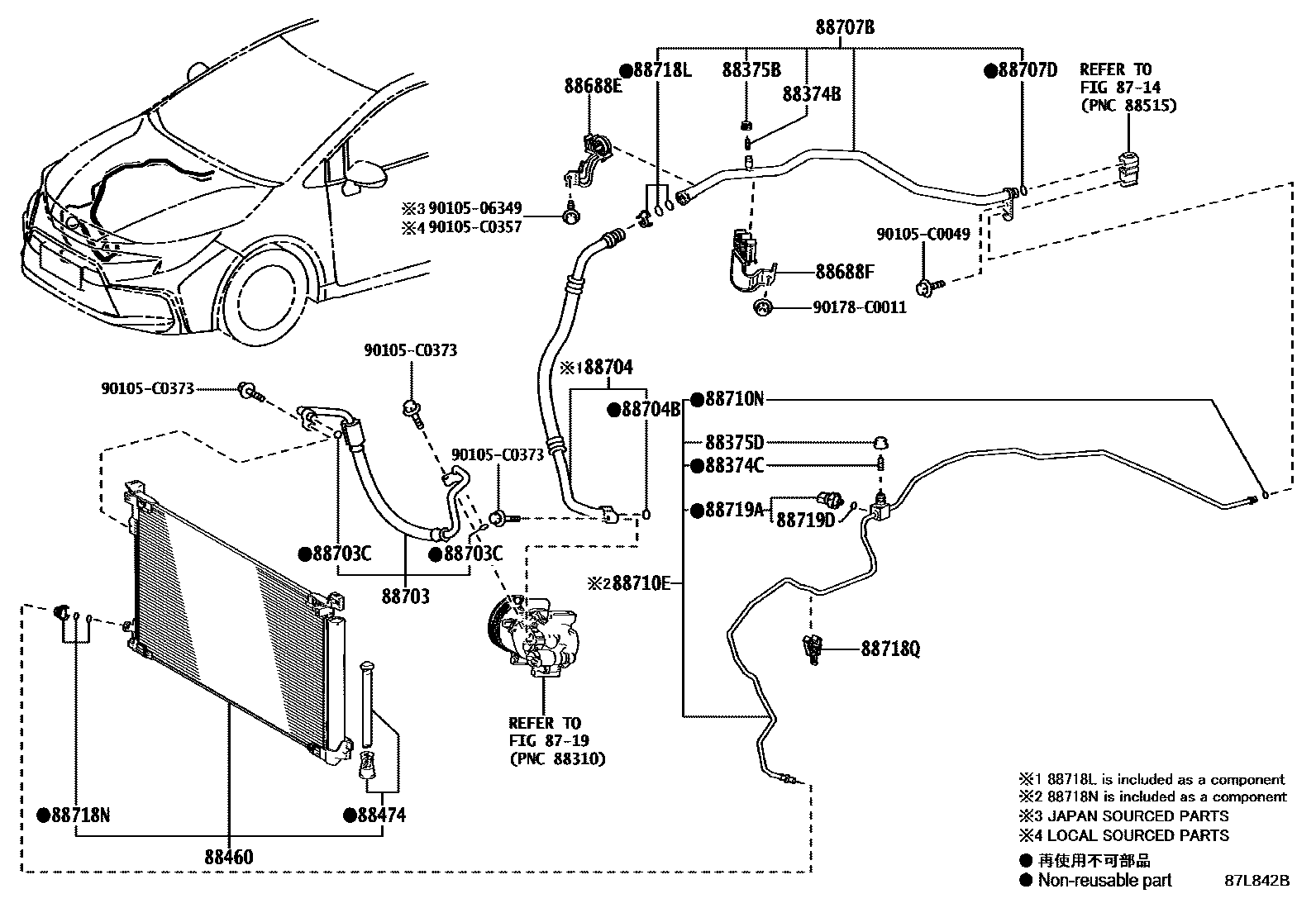

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88718QCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
9010506349
main90105-06349
90105C0049
main90105-C0049
90105C0357
main90105-C0357
90105C0373
main90105-C0373
90178C0011
main90178-C0011
28 parts on this diagram · 3 diagrams in section
