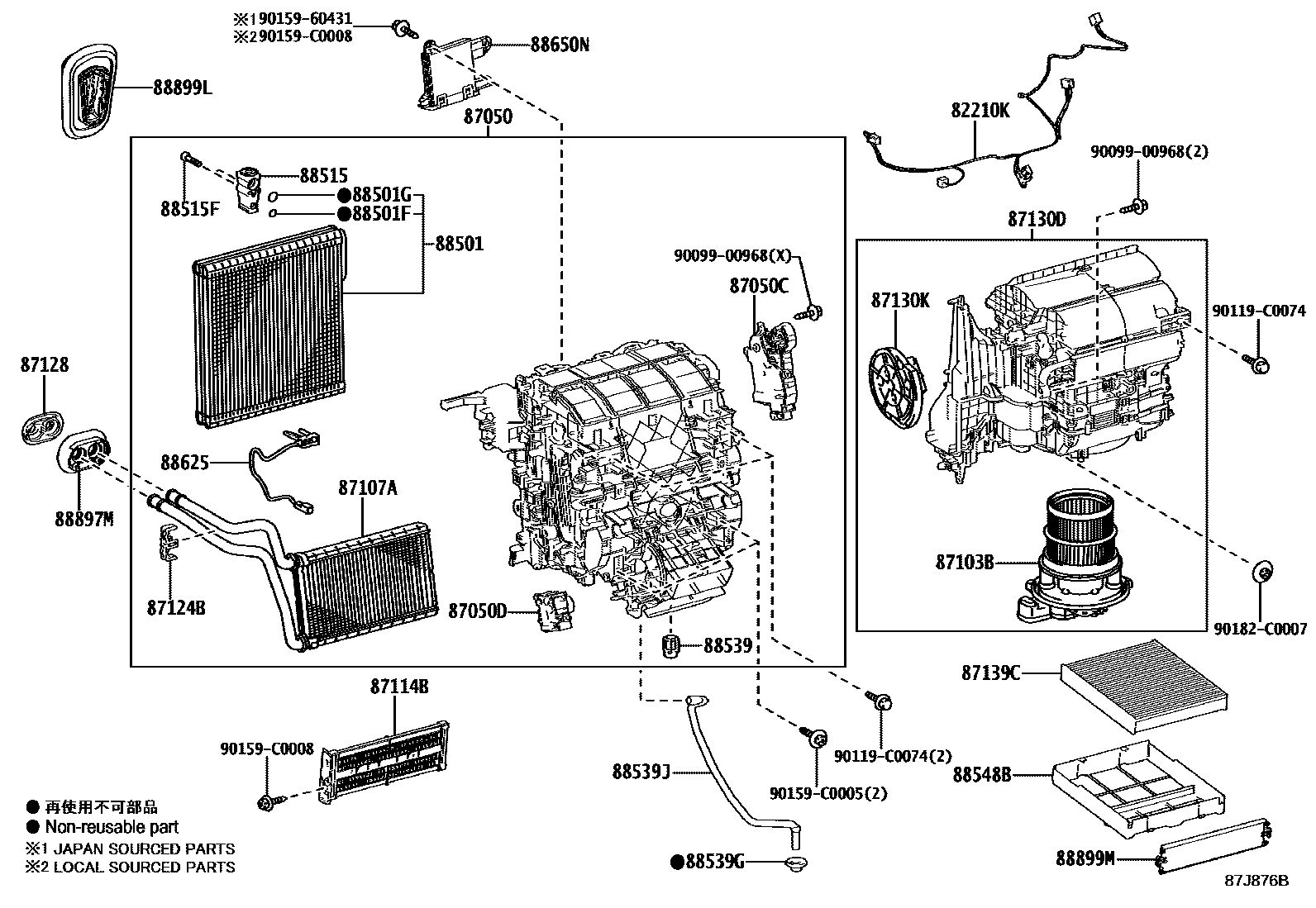

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02310iMZEA12202107-202304

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0Z180iMZEA12202107-202304

main87050-0ZD70iMZEH16202307

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4140iMZEA12202107-202304

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-02710iMZEA12202107-202304

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06130iMZEA12202107-202304

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4050iMZEA12202107-202304

87114BCOVER, HEATER

main87114-02180iMZEA12202107-202304

main87114-0A090iMZEA12,MZEH16202304

87124BCLAMP, HEATER

main87124-06110iMZEA12202107-202304

87128GROMMET, HEATER

main87128-0A040iMZEA12,MZEH16202304

(L)

main87128-28010iMZEA12202205-202304

(J)

87130DBLOWER ASSY

main87130-06420iMZEA12202107-202304

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06390iMZEA12202107-202304

87139CFILTER, CLEAN AIR

main87139-02270iMZEA12202107-202304

STANDARD,OE PART

main87139-06170iMZEA12,MZEH16202307

STANDARD,OE PART

main87139-58010iMZEA12202107-202304

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02420iMZEA12202107-202304

main88501-F4140iMZEH16202307

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMZEA12202107-202304

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMZEA12202107-202304

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-06150iMZEA12202107-202304

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iMZEA12202107-202304

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iMZEA12202107-202304

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iMZEA12202107-202304

88539JHOSE, DRAIN COOLER

main88539-0A080iMZEA12,MZEH16202304

main88539-F4080iMZEA12202107-202304

88548BCASE, AIR FILTER

main88899-02490iMZEA12202107-202304

main88899-02491iMZEA12,MZEH16202307

88625THERMISTOR, COOLER, NO.1

main88620-06080iMZEA12202107-202304

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02M21iMZEA12202107-202207

main88650-02N80iMZEA12202208-202304

main88650-0A130iMZEA12,MZEH16202304-202406

main88650-0A131iMZEA12,MZEH16202407

88897MGROMMET (FOR HEATER PIPE)

main87128-F4070iMZEA12202107-202304

88899LPARTS, COOLING UNIT

main88899-F4340iMZEA12202107-202304

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iMZEA12202107-202304

main88899-0A090iMZEA12,MZEH16202304

9009900968

main90099-00968

90119C0074

main90119-C0074

9015960431

main90159-60431

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

32 parts on this diagram · 2 diagrams in section
