RADIO RECEIVER & AMPLIFIER & CONDENSER

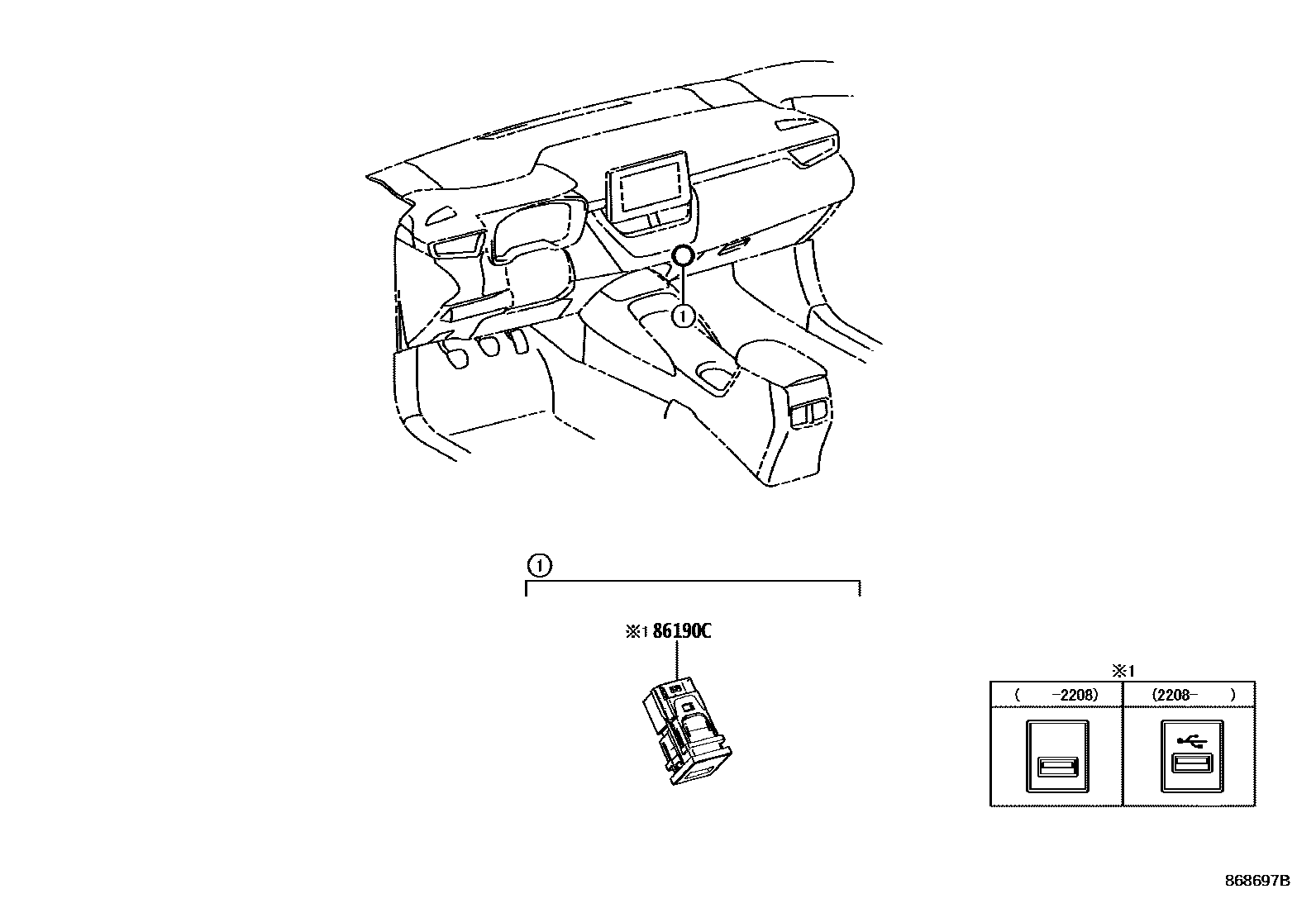

Parts diagram

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02120i202304

main86190-0E120i202208-202304

main86190-12070i202107-202208

1 parts on this diagram · 3 diagrams in section
