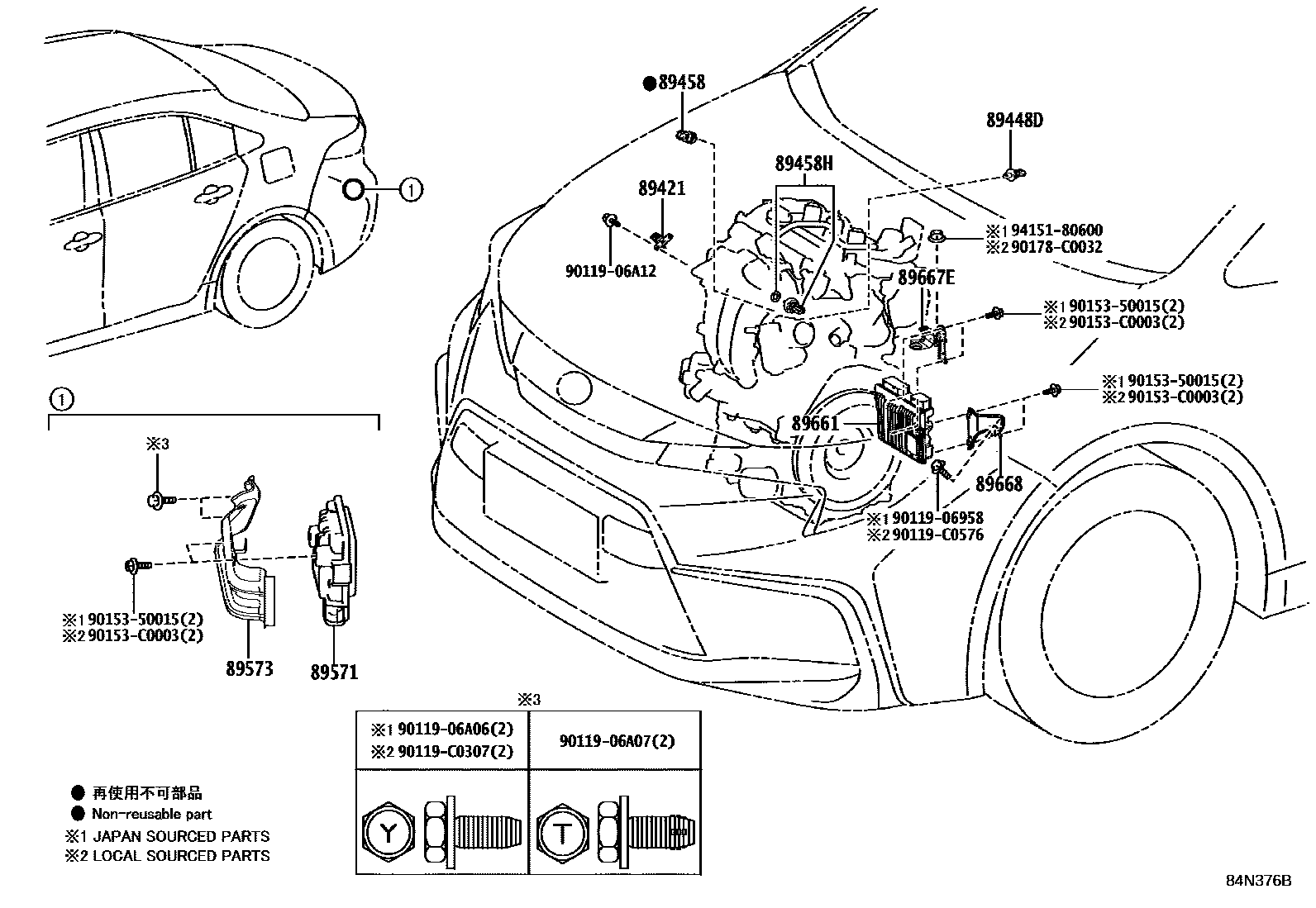

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMZEA12,MZEH16202304

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iMZEA12,MZEH16202403

(L)

main89448-33010iMZEA12202107-202304

89458SENSOR, FUEL PRESSURE

main89458-0R010iMZEA12,MZEH16202403

(L)

main89458-33030iMZEA12202107-202304

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iMZEA12,MZEH16202403

(L)

main89458-33041iMZEA12202107-202206

main89458-33042iMZEA12,MZEH16202403

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010iMZEA12202107-202304

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02100iMZEA12202107-202304

89661COMPUTER, ENGINE CONTROL

main89661-0A400iMZEH16202307

DENSO,*614

main89666-02C70iMZEA12202107-202304

DENSO

main89666-02G10iMZEA12202304

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0A050iMZEH16202307

main89667-F4070iMZEA12202304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0A060iMZEH16202307

main89668-F4090iMZEA12202107-202304

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011906A12

main90119-06A12

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
