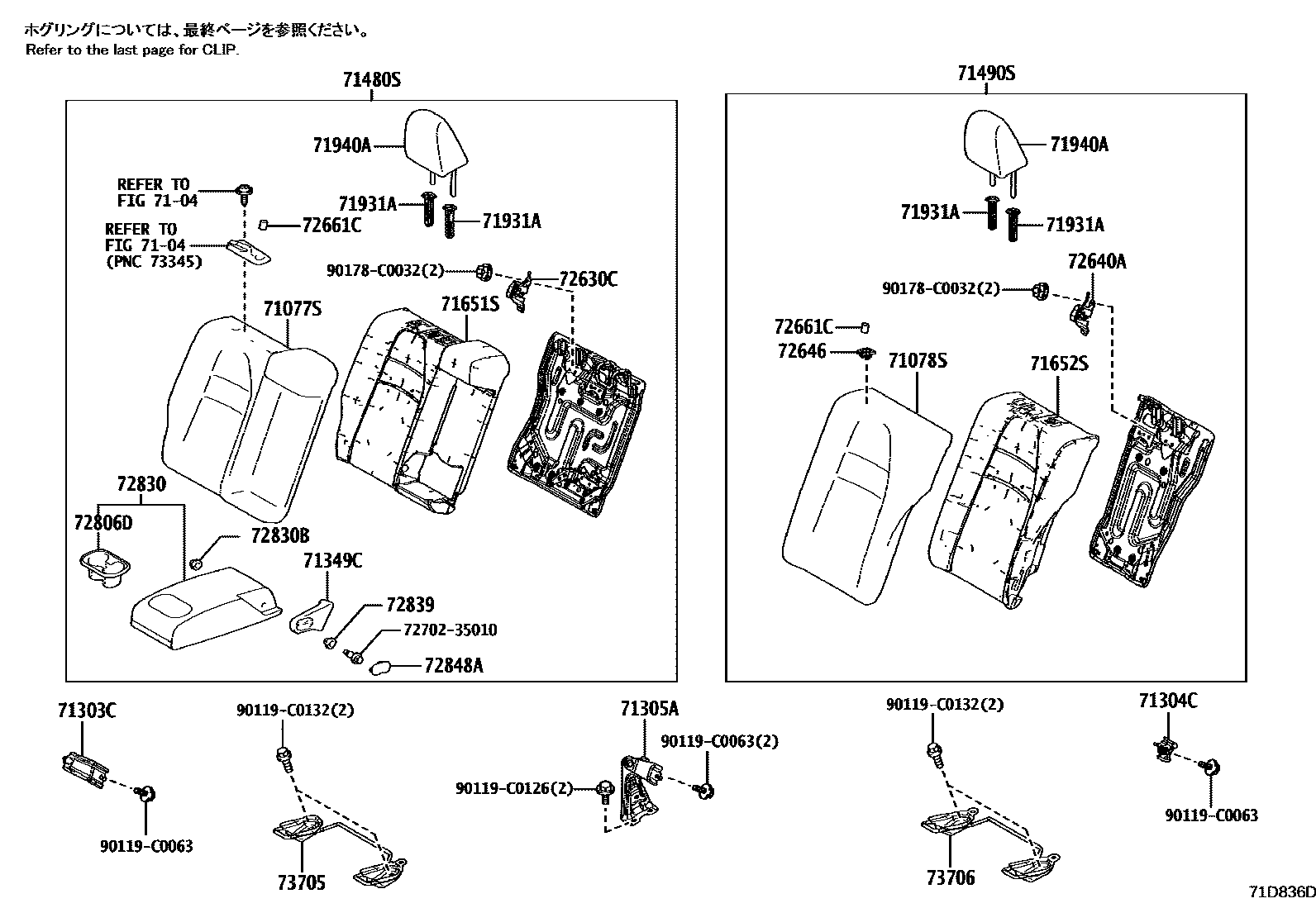

REAR SEAT & SEAT TRACK
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
FORMAGE,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
LOW PACKAGE,BLACK,TRIM2#
LOW PACKAGE,BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
FORMAGE,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
LOW PACKAGE,BLACK,TRIM2#
LOW PACKAGE,BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71349CCOVER, REAR SEATBACK HINGE
FROMAGE,TRIM4#
BLACK,TRIM2#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
FROMAGE,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
LOW PACKAGE,BLACK,TRIM2#
LOW PACKAGE,BLACK,TRIM2#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
BLACK,TRIM2#
FROMAGE,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
LOW PACKAGE,BLACK,TRIM2#
LOW PACKAGE,BLACK,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
LOW PACKAGE
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
LOW PACKAGE
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),FROMAGE,TRIM4#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),FROMAGE,TRIM4#
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
FORMAGE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM4#
BLACK,TRIM2#
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72646GROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM2#,4#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
BLACK,TRIM2#,4#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
FROMAGE,TRIM4#
BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
FORMAGE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
SAND BROWN,TRIM4#
72830BBUSH(FOR REAR SEAT CENTER ARMREST)
72839SHIM, REAR SEAT ARMREST HINGE
72848ACAP, SEAT ARMREST, NO.1
FROMAGE,TRIM4#
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-35010
90119C0063
main90119-C0063
90119C0126
main90119-C0126
90119C0132
main90119-C0132
90178C0032
main90178-C0032
29 parts on this diagram · 4 diagrams in section
