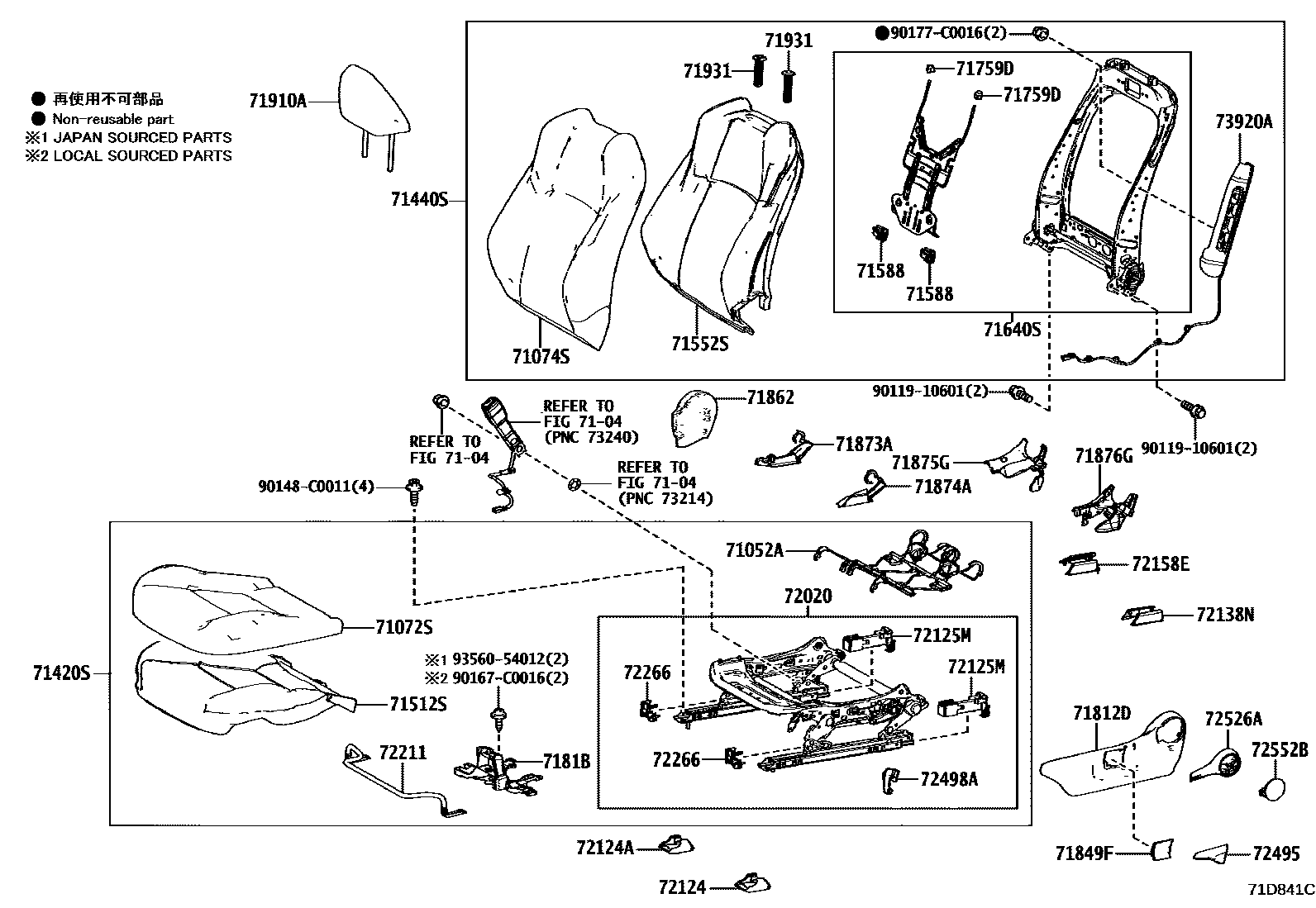

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(MANUAL SEAT) 0002 1LH SEAT(POWER SEAT) 0003 1RH SEAT

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iMZEA12202107-202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZP40-C1iMZEA12..G202107-202304

BLACK,TRIM2#

main71072-0ZP40-E1iMZEA12..G202107-202304

FORMAGE,TRIM4#

main71072-0ZY70-C0iMZEA12,MZEH16..G202304

BLACK,TRIM2#

main71072-0ZY70-E0iMZEA12,MZEH16..G202304

SAND BROWN,TRIM4#

main71072-0ZR60-C0supersedes 71072-0ZP30-C1iMZEA12..N202207-202304

LOW PACKAGE,BLACK,TRIM2#

main71072-0ZY50-C0supersedes 71072-0ZY60-C1iMZEA12,MZEH16..N202304

LOW PACKAGE,BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F2060-C1iMZEA12..G202107-202304

BLACK,TRIM2#

main71074-F2060-E1iMZEA12..G202107-202304

FORMAGE,TRIM4#

main71074-F2700-C1iMZEA12,MZEH16..G202304

BLACK,TRIM2#

main71074-F2700-E2iMZEA12,MZEH16..G202304

SAND BROWN,TRIM4#

main71074-0ZZ51-C2supersedes 71074-F2050-C1iMZEA12..N202207-202304

LOW PACKAGE,BLACK,TRIM2#

main71074-F2660-C1supersedes 71074-F2690-C1iMZEA12,MZEH16..N202304

LOW PACKAGE,BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0ZP90-C0iMZEA12,MZEH16..G202304

BLACK,TRIM2#

main71420-0ZP90-E0iMZEA12,MZEH16..G202304

SAND BROWN,TRIM4#

main71420-0ZD30-C0supersedes 71420-0ZK30-C1iMZEA12..N202207-202304

LOW PACKAGE,BLACK,TRIM2#

main71420-0ZP70-C0iMZEA12,MZEH16..N202304-202408

LOW PACKAGE,BLACK,TRIM2#

main71420-0ZP70-C1iMZEA12,MZEH16..N202408

LOW PACKAGE,BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-02B50-C1iMZEA12..G202107-202304

BLACK,TRIM2#

main71070-02B50-E1iMZEA12..G202107-202304

FROMAGE,TRIM4#

main71070-02T20-C1iMZEA12,MZEH16..G202304

BLACK,TRIM2#

main71070-02T20-E2iMZEA12,MZEH16..G202304

SAND BROWN,TRIM4#

main71070-02F10-C5supersedes 71070-02B40-C1iMZEA12..N202207-202304

LOW PACKAGE,BLACK,TRIM2#

main71070-02T00-C1supersedes 71070-02T10-C1iMZEA12,MZEH16..N202304

LOW PACKAGE,BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02C80iMZEA12..N202107-202304

main71512-02C90iMZEA12..G202107-202304

main71512-02D40iMZEA12,MZEH16..N202304

main71512-02D50iMZEA12,MZEH16..G202304

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02C90iMZEA12202107-202304

main71552-02D80iMZEA12,MZEH16202304

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-06010×2iMZEA12,MZEH16202304

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02D10iMZEA12..N202107-202304

main71640-02E00iMZEA12..G202107-202304

main71640-02E40iMZEA12,MZEH16..G202304

main71640-02E50iMZEA12,MZEH16..N202304

71759DHOOK, FRONT SEATBACK, NO.2

main71759-06030×2iMZEA12202107-202304

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02B20-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main71812-06570-C0iMZEA12..N202107-202304

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-06010iMZEA12..N202107-202304

main7181B-06020iMZEA12,MZEH16..G202304

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-F4040-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06340-C0iMZEA12..N202107-202304

BLACK,TRIM2#,4#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71874-02510iMZEA12,MZEH16202304

main71874-06400iMZEA12202107-202304

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06390iMZEA12202107-202304

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-06420-C0iMZEA12..N202107-202304

BLACK,TRIM2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06390-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-02Z50-A1×2iMZEA12..G202107-202304

FORMAGE,TRIM4#

main71910-02Z50-C1×2iMZEA12..G202107-202304

BLACK,TRIM2#

main71910-0Z120-A0×2iMZEA12,MZEH16..G202304

FROMAGE,TRIM4#

main71910-0Z120-C0×2iMZEA12,MZEH16202304

BLACK,TRIM2#

main71910-02U80-B3×2supersedes 71910-02Z40-C0iMZEA12..N202207-202304

LOW PACKAGE,DK. GRAY/BLACK,TRIM2#

main71910-0Z110-C0×2iMZEA12,MZEH16..N202304

LOW PACKAGE,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-A0×2iMZEA12..G202107-202304

W(LOCK),FROMAGE,TRIM4#

main71930-06070-C0×2iMZEA12202107-202304

W(LOCK),BLACK,TRIM2#

main71931-06060-A0×2iMZEA12..G202107-202304

W/O(LOCK),FROMAGE,TRIM4#

main71931-06060-C0×2iMZEA12,MZEH16202304

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02B00iMZEA12,MZEH16..N202304

main72020-02B10iMZEA12,MZEH16..G202304

main72020-06372iMZEA12..N202107-202304

main72020-06380iMZEA12..G202107-202304

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-06110iMZEA12202107-202304

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-06110iMZEA12202107-202304

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-06050×2iMZEA12..G202107-202304

main72125-06060×2iMZEA12..N202107-202304

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-06130iMZEA12,MZEH16202304

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-06200iMZEA12,MZEH16202304

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06140iMZEA12..N202107-202304

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06020×2iMZEA12..G202107-202304

main72265-06030×2iMZEA12..N202107-202304

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-F4060-C0iMZEA12..N202107-202304

BLACK,TRIM2#

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

main72498-06050iMZEA12..N202107-202304

main72498-F4040-C0iMZEA12,MZEH16..N202304-202408

BLACK,TRIM2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-F4100-C0iMZEA12..N202107-202304

BLACK,TRIM2#

72552BCOVER, RECLINING HINGE, LH

main72551-06010-C0iMZEA12..N202107-202304

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02360iMZEA12202107-202304

main73920-02400iMZEA12,MZEH16202304

9011910601

main90119-10601

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9356054012

main93560-54012

39 parts on this diagram · 3 diagrams in section
